Littelfuse KLPC-800 Fuse
New
Quantity
Description

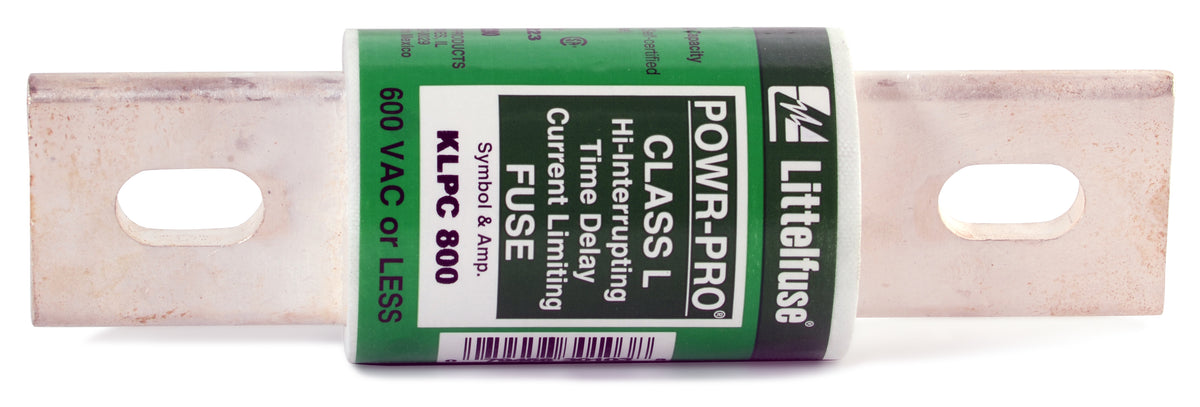

Littelfuse KLPC-800 Fuse
The Littelfuse KLPC-800 is a fuse with a current rating of 800 Amps and a voltage rating of 600V. It has an interrupting rating of 200kAIC at 480VDC. The KLPC-800 has a knife blade connection type and it is used for service switches, switchboard mains and feeders, bolted pressure contact switches.
Specifications
| Amperage | 800 A |
|---|---|
| Voltage | 600 V |
| Interrupting Rating | 200kAIC@480VDC |
| Series | KLPC |
| Mounting Type | Bolt |
|---|---|
| Connection Type | Blade |
| Terminal Connection | Knife Blade |
| Length (in) | 11.75 |
| Width (in) | 3.75 |
| Height (in) | 3.5 |
| For Use With | Smaller Less Expensive Switches |
| Approval | UL, CSA |
|---|---|
| Body Material | Fiberglass Body |
| Brand | Littelfuse |
|---|---|
| MPN | KLPC-800 |
| UPC | 79458301038 |
