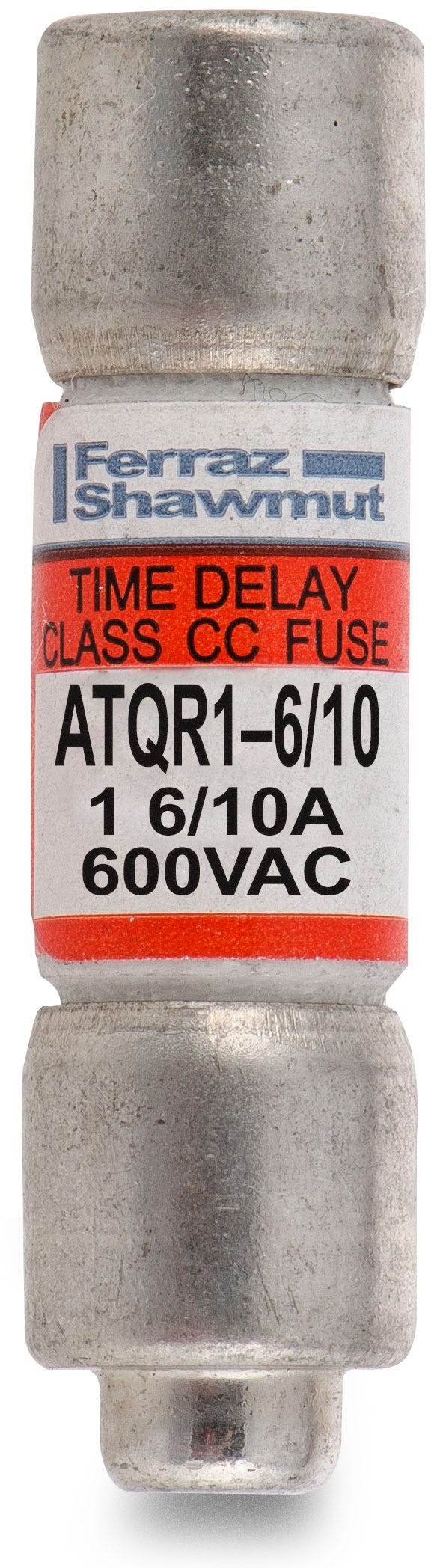

The Mersen ATQR1-6/10 is a fuse with a current rating of 1.6 Amps and a voltage rating of 600VAC, 300VDC. It has an interrupting rating of 100kAIC at 300VDC, 200kAIC at 600VAC. The ATQR1-6/10 has a clip mounting type and it is used for control transformers, solenoids, inductive loads, lighting, heating and general-purpose loads, residential, commercial and industrial applications.
Specifications
Brand
Mersen
Series
ATQR
Amperage
1.6
Voltage
600VAC, 300VDC
Mounting Type
Clip
Approval
UL, CSA
Interrupting Rating
100kAIC at 300VDC, 200kAIC at 600VAC
Frame Type
ATQR
Connection Type
Ferrule
Length (in)
1.5
Width (in)
0.41
Height (in)
0.41
Standards
RoHS, EU
Body Material
GMG
Mpn
ATQR1-6-10
Upc
782001906429
Gtin
782001906429
