Eaton / Moeller NZM7-200-NA Molded Case Switch
Quantity
Core Specs
See full specs

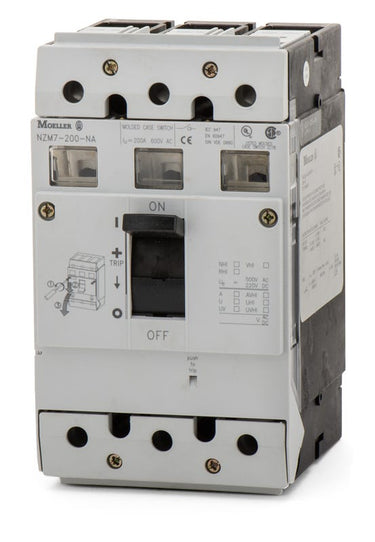

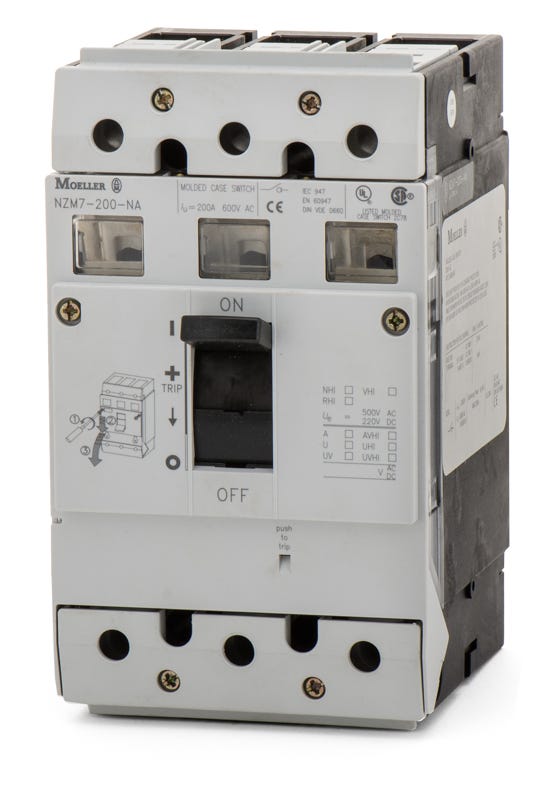

Eaton / Moeller NZM7-200-NA - 200A 3 Pole Molded Case Switch
New
Quantity
Description
Engineered for heavy-duty isolation, the NZM7-200-NA is a 3-pole, 200A molded case switch from Eaton's Moeller series. It functions as a dedicated motor circuit disconnect for industrial applications up to 600VAC. This unit-mount switch installs into control panels and motor control centers. It serves as the original legacy component, which is now replaced by the N2-200-NA retrofit. Featuring a non-automatic design, this device operates without thermal-magnetic overcurrent protection.Specifications
| Brand | Eaton / Moeller |
|---|---|
| Part Number | NZM7-200-NA |
| Series | NZM7 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Motor Control Centers, Switchboards |
| Wire Gauge | 14 AWG - 250 kcmil |
| Max Wire | 250 kcmil |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Rotary Handle |
|---|---|
| Accessories | Pressure Wire Terminals |
| Standards | CSA C22.2 No. 5.2, IEC 60947-3, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), 100% Rated |
