Eaton / Cutler-Hammer MS360800A Automatic Molded Case Switch
Quantity
Core Specs
See full specs

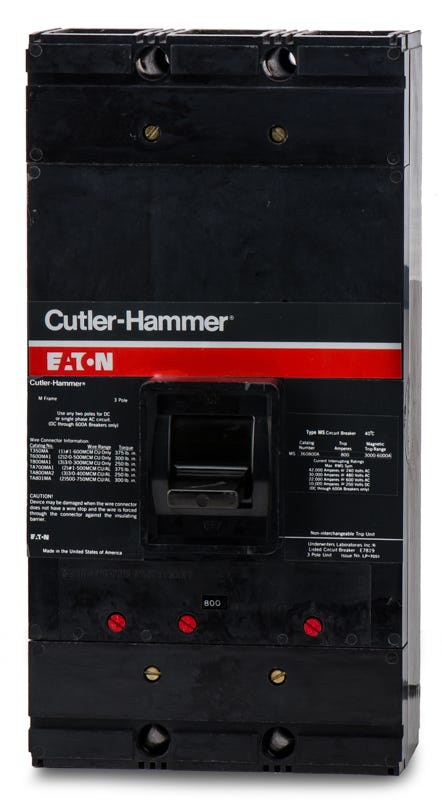

Eaton / Cutler-Hammer MS360800A - 800A 3 Pole Automatic Molded Case Switch
Re-Certified
Quantity
Description
Part of the Series C MDS frame lineup, this 800-ampere molded case switch provides essential circuit isolation for industrial facilities. The device installs into Eaton and legacy Westinghouse M-Frame enclosures or motor control centers, functioning primarily as a disconnect. While it does not offer thermal overload protection, the switch includes a self-protecting high instantaneous magnetic trip mechanism to handle severe faults. It serves as a drop-in replacement for the MS360800.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MS360800A-R |
| Series | MS |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 30kA @ 480VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse M-Frame Enclosures, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | UL 489, CSA C22.2 No. 5.1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Molded Case Switch, Self-Protecting |
