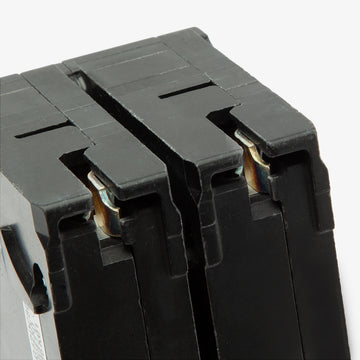

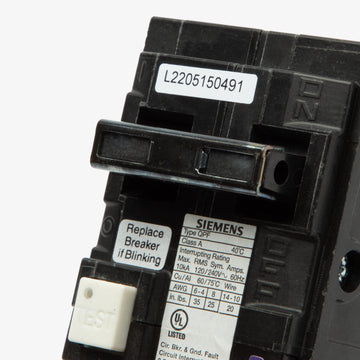

Siemens / Murray MP220GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Siemens / Murray
MP220GF
GFCI Miniature Circuit Breaker
Brand
Siemens / Murray
SKU
MP220GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / Murray MP220GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Siemens / Murray MP220GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP220GF |
| Series | MP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens / Murray MP220GF - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP220GF-R |
| Series | MP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Built to handle 20A loads on 240V systems, this two-pole device ensures personnel safety with Class A 5mA ground fault detection. It installs into legacy Murray and Siemens load centers, providing an exact fit for older residential and commercial enclosures. Featuring a pigtail neutral and Switching Duty (SWD) rating, it meets rigorous NEC standards for wet or damp environments. Facility managers frequently use this model to replace aging hardware, or substitute it with the QF220A.Specifications
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP220GF |
| Series | MP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhat is the current Siemens replacement for the Murray MP220GF?
The Murray MP series has been phased out by the manufacturer. The official UL-listed replacement for the MP220GF is the Siemens QF220A.
Are Murray and Siemens circuit breakers interchangeable?
Yes. Siemens acquired the Murray brand and has issued official UL documentation confirming that Murray MP and Siemens QP style breakers are interchangeable and cross-listed for use in both Siemens and Murray load centers.
What class of ground fault protection does this breaker offer?
The MP220GF provides Class A ground fault protection. It is designed to trip when it detects a ground fault current of 5mA, meeting NEC requirements for personnel safety in areas like outdoor receptacles and pool pumps.

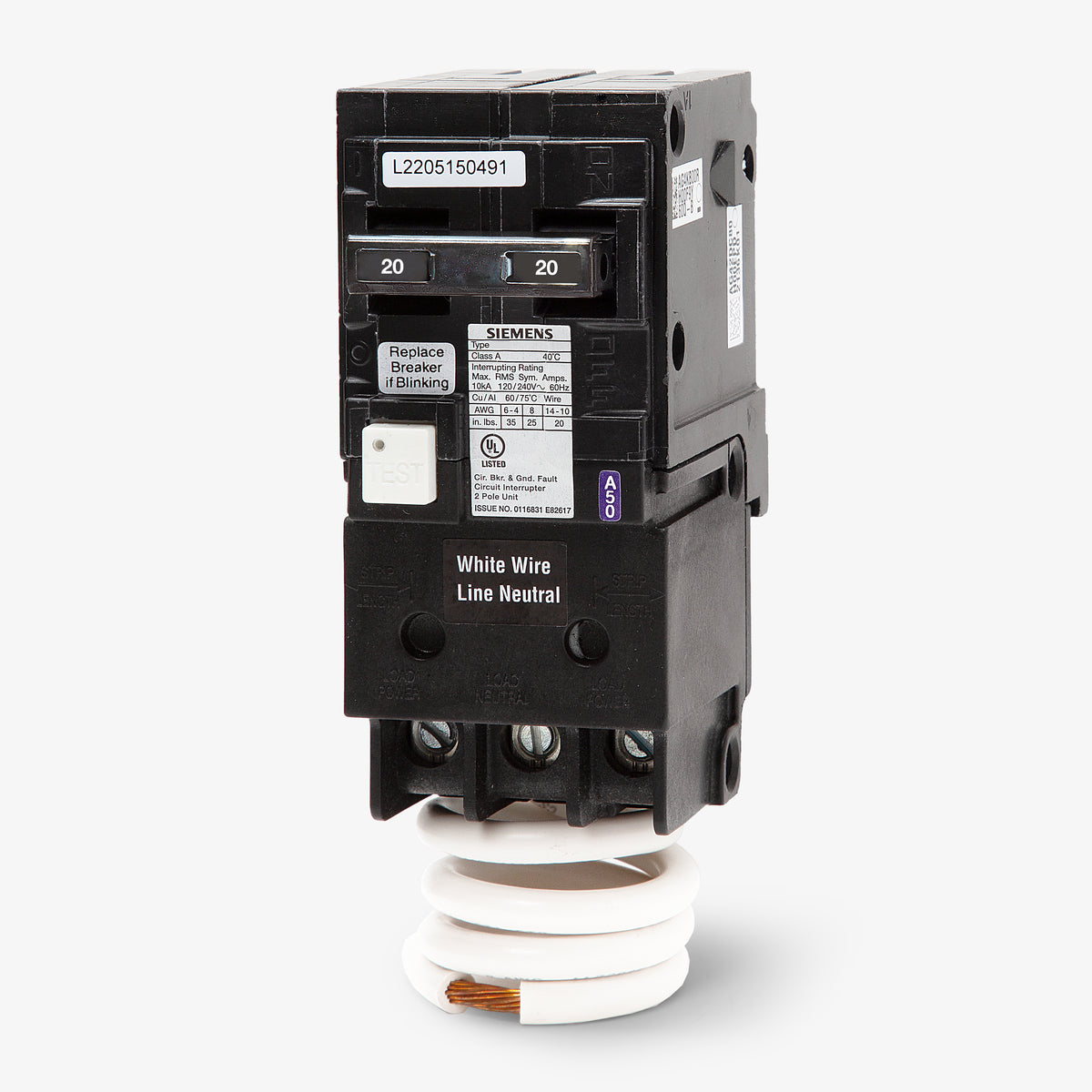

How do I connect the neutral on the MP220GF?
This breaker uses a pigtail neutral design. The coiled white wire attached to the breaker must be connected directly to the neutral bus bar in your panel to power the internal ground fault testing circuitry.
What type of overload protection does the LIG trip function provide?
The LIG code stands for Long-Time, Instantaneous, and Ground-Fault. This means the breaker combines standard thermal-magnetic protection for overloads and short circuits with integrated ground fault monitoring.
