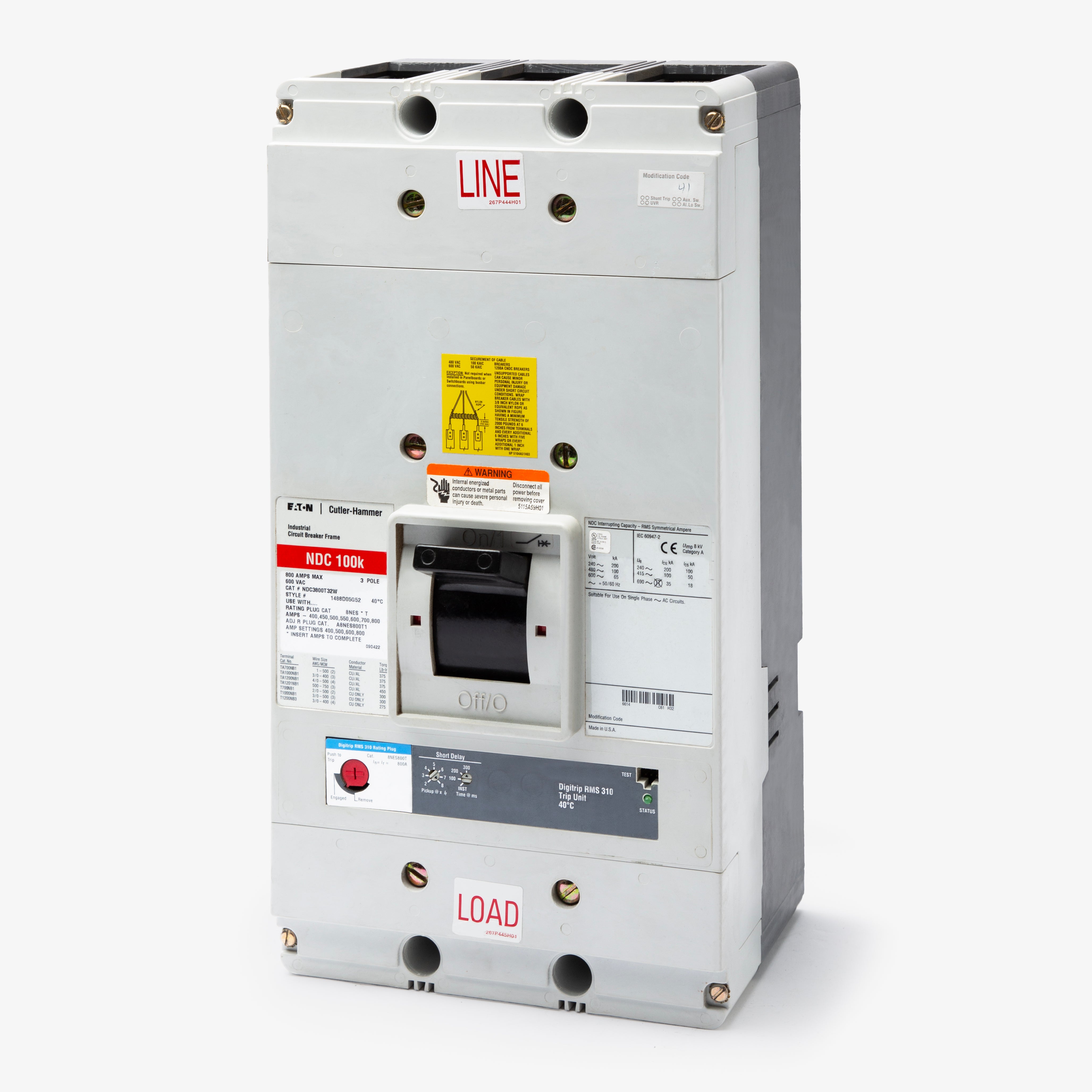

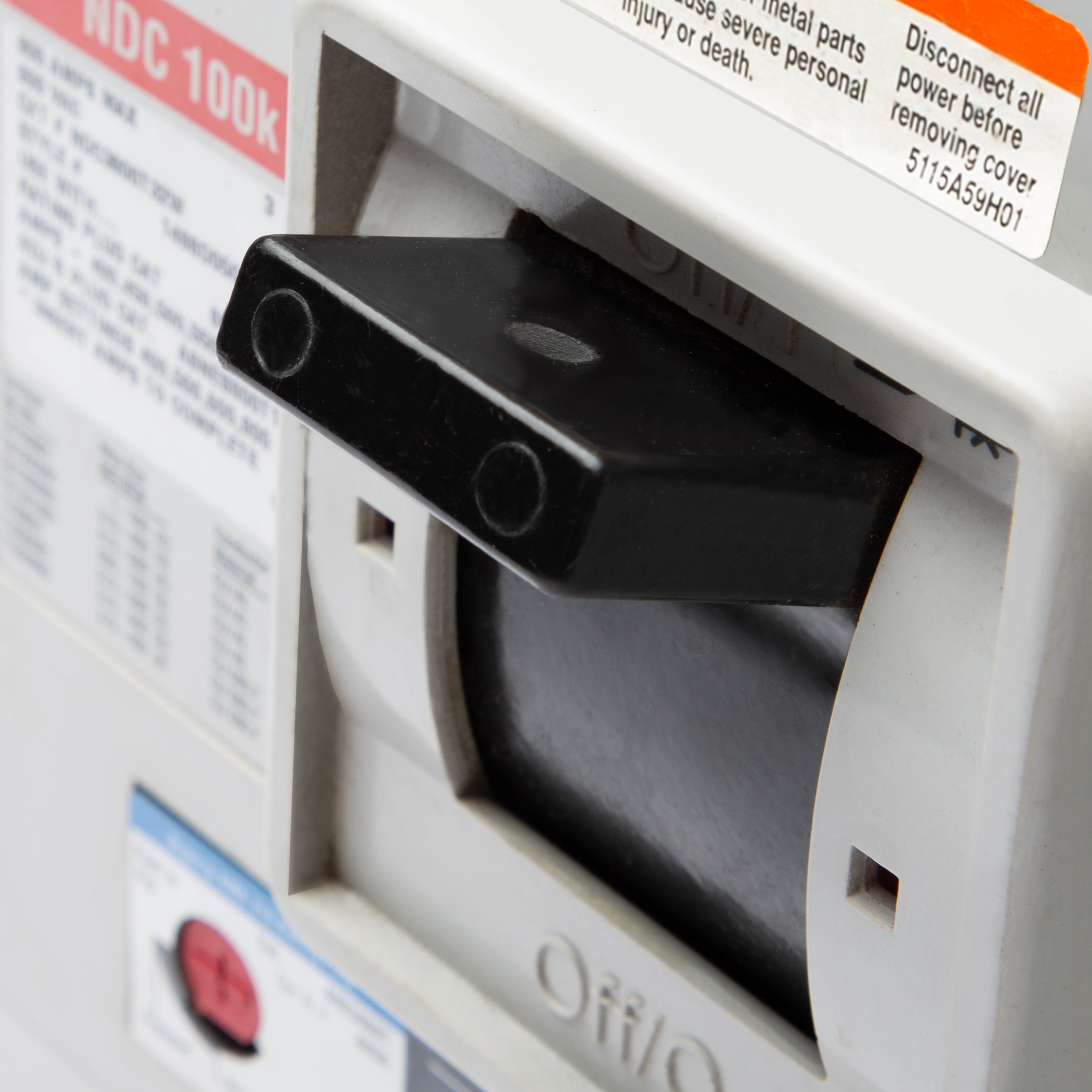

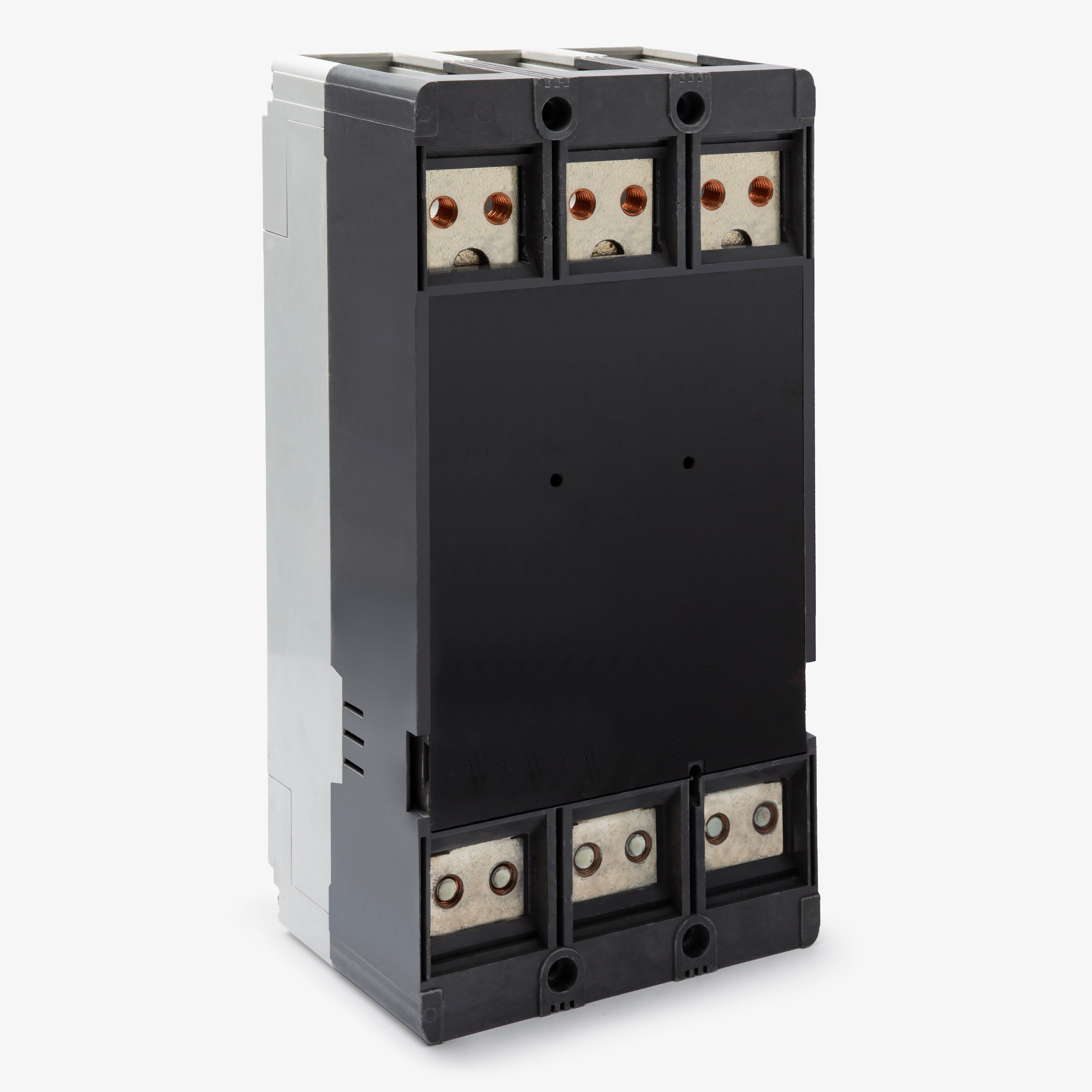

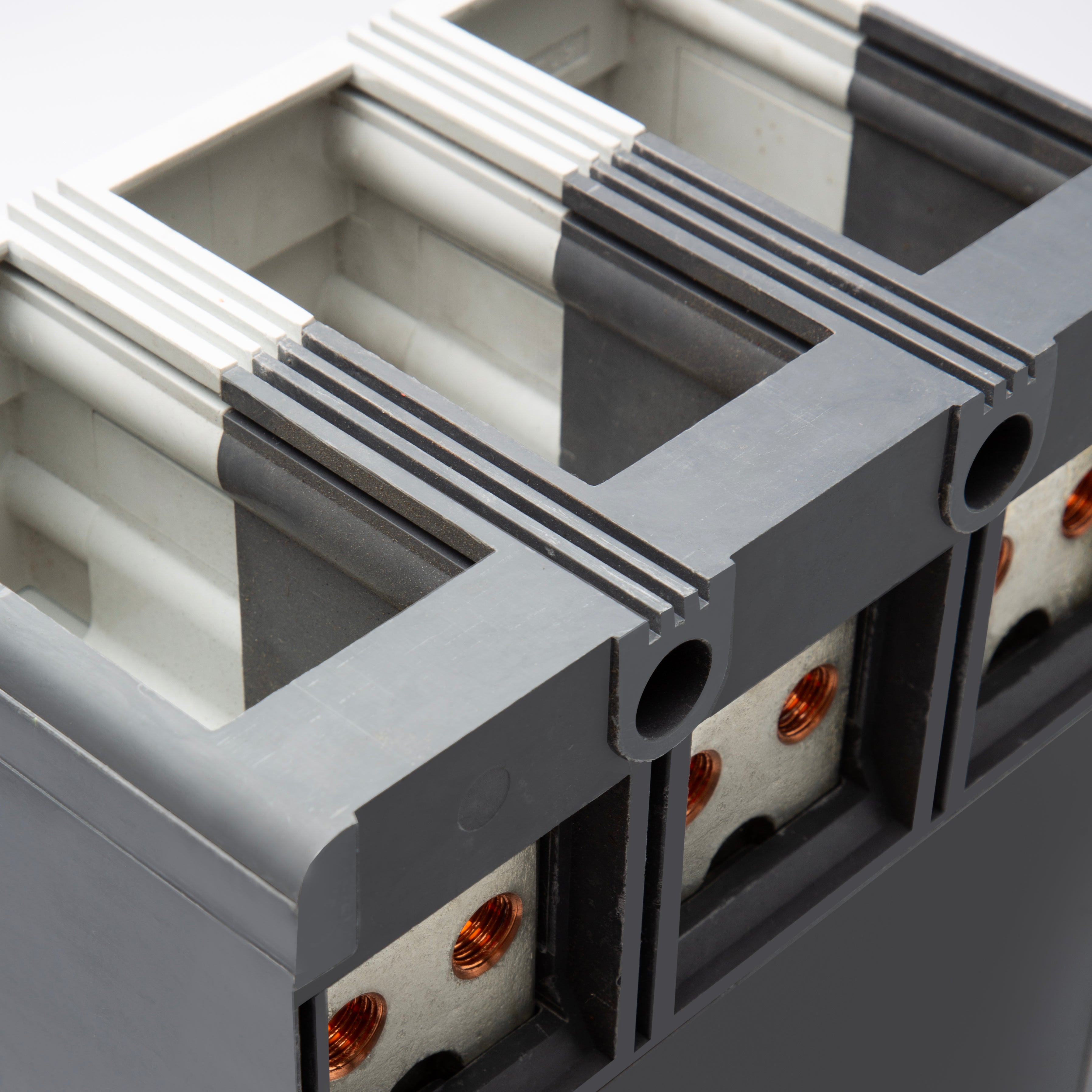

Eaton / Cutler-Hammer NDC3800T32W Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer NDC3800T32W - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer NDC3800T32W - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | NDC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC |
| Amperage Range | 400-800A |
|---|
| Frame Type | N |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Without Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, 80% Rated |
Quantity
Eaton / Cutler-Hammer NDC3800T32W - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | NDC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC |
| Amperage Range | 400-800A |
|---|
| Frame Type | N |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Without Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, 80% Rated |
Description
Rated for 800 amps, this three-pole molded case circuit breaker brings advanced microprocessor technology to commercial power distribution. The N-Frame design ensures reliable current-limiting capabilities for demanding industrial applications. It mounts into standard Eaton Series C panel boards and motor control centers. While currently replaced by the PDG53P0800E2NN in modern catalogs, this unit remains essential for maintaining and expanding legacy Cutler-Hammer systems.
Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | NDC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC |
| Amperage Range | 400-800A |
|---|
| Frame Type | N |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Without Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, 80% Rated |
Product FAQs
8 answersWhat does the "T32W" suffix mean in the NDC3800T32W catalog number?
The "T32W" suffix indicates that the breaker is equipped with a Digitrip 310 RMS electronic trip unit featuring LSI (Long-Time, Short-Time, and Instantaneous) protection functions.
What does the "NDC" prefix indicate on this Eaton circuit breaker?
The "NDC" prefix designates it as a Series C, N-Frame molded case circuit breaker with a high interrupting capacity of 100kAIC at 480VAC and 200kAIC at 240VAC.
What types of equipment are compatible with the NDC3800T32W?
This N-Frame breaker is designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
Is there a modern replacement for the legacy NDC3800T32W circuit breaker?
Yes, in modern Eaton catalogs, legacy Series C N-Frame breakers are typically replaced by the Power Defense series, specifically the PDG53P0800E2NN or similar Frame 5 models, depending on exact system requirements.
Are terminal lugs included standard with the NDC3800T32W?
No, Series C N-Frame breakers like the NDC3800T32W are typically supplied without terminal lugs. Compatible lug kits must be sourced separately based on your specific wire size and conductor material requirements.
Can the trip settings on the NDC3800T32W be adjusted in the field?
Yes, the Digitrip 310 electronic trip unit features adjustable dials for the Long-Time, Short-Time, and Instantaneous (LSI) pickup and delay settings, allowing you to coordinate the breaker with your specific system requirements.
Does the NDC3800T32W provide ground fault protection?
No, the "T32W" trip unit configuration includes LSI (Long-Time, Short-Time, Instantaneous) functions only. It does not include integral ground fault protection.
Is the NDC3800T32W rated for 80% or 100% continuous current?
This standard NDC breaker is rated for 80% continuous current.
