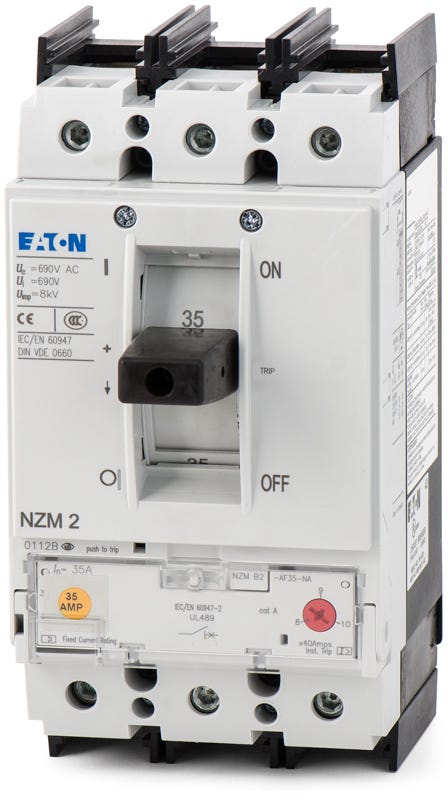

Eaton / Moeller NZMB2-AF35-BT-NA Molded Case Circuit Breaker
- 35A
- 3 Pole
- Panel Mount
Quantity
Eaton / Moeller NZMB2-AF35-BT-NA - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for commercial and industrial applications, the Eaton NZMB2-AF35-BT-NA molded case circuit breaker provides reliable protection for motor control centers and machinery. This panel-mount MCCB integrates into Eaton NZM switchboards, xEnergy switchgear, and control panels. It features box lug terminals for secure 12 AWG to 350 kcmil wire connections. Rated 35kA at 240VAC, the unit utilizes a fixed thermal and adjustable magnetic (LI) trip mechanism and carries a HACR rating.Specifications
| Brand | Eaton / Moeller |
|---|---|
| Part Number | NZMB2-AF35-BT-NA |
| Series | NZMB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton NZM Switchboards, xEnergy Switchgear, Motor Control Centers, Control Panels |
| Wire Gauge | 12 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Rotary Handle |
|---|---|
| Accessories | Box Terminal (BT) |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, cULus |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat equipment is the NZMB2-AF35-BT-NA designed to protect?
This 35A breaker is engineered for integration into Eaton NZM switchboards, xEnergy switchgear, motor control centers, and industrial control panels.
What does the "BT" in the NZMB2-AF35-BT-NA catalog number indicate?
The "BT" designates that the breaker comes standard with box terminal lugs for the line and load connections.
What wire sizes are compatible with the box lugs on this breaker?
The factory-installed box lugs accept conductors ranging from 12 AWG to 350 kcmil.
How is the trip unit configured on the NZMB2-AF35-BT-NA?
It utilizes a thermal-magnetic (LI) trip unit with fixed thermal overload protection and an adjustable magnetic short-circuit release, which can be set between 320A and 400A.
Can field-installable accessories be added to this NZM2 frame breaker?
Yes, this breaker supports optional field-installable accessories, including auxiliary switches.
What is the alternate part number for the NZMB2-AF35-BT-NA?
This Eaton / Moeller breaker is also identified by the 6-digit article number 107615.
