Westinghouse PC32000F Circuit Breaker
- 2000
- 3 Pole
Quantity

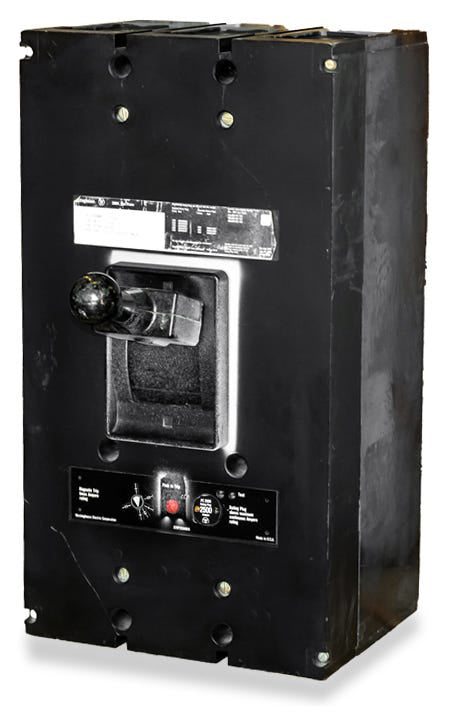

Westinghouse PC32000F 3 Pole Circuit Breaker
Re-Certified
Quantity
Description
Westinghouse PC32000F 3 Pole Circuit Breaker
The Westinghouse PC32000F is a 3 Pole solid state molded case circuit breaker with a current rating of 2000 Amps and a voltage rating of 600V. It has an interrupting rating of 100kA@480V. The PC32000F has a bolt-on connection type and includes LS - long-time and short-time functions.
Specifications
| Brand | Westinghouse |
|---|---|
| Series | PC |
| Amperage | 2000 A |
| Poles | 3 |
| Voltage | 600 V |
| Phase | 3 |
| AIC Rating | 100kA@480V |
| Trip Technology | Electronic Trip |
|---|
Product FAQs
4 answersIs the Westinghouse PC32000F interchangeable with Eaton or Cutler-Hammer models?
Yes. Eaton acquired the Westinghouse circuit breaker division. PC frame breakers labeled under the Cutler-Hammer or Eaton brands with the identical catalog number are exact replacements and share the same physical footprint.
Can the continuous current on the PC32000F be adjusted below 2000 amps?
Yes. This 2000A frame circuit breaker utilizes interchangeable rating plugs. By installing a lower-rated plug, you can safely reduce the maximum continuous current to match your specific feeder requirements.
Does the PC32000F include instantaneous trip protection?
No. The solid state trip unit configured in this specific model features LS functions, providing long-time and short-time delay protection only. It does not include instantaneous or ground fault tripping features.
How are the line and load connections secured on this breaker?
This model features a fixed bolt-on connection type. The breaker terminal pads must be bolted directly to the switchgear busbars. It is not designed for drawout cradle configurations.
