Square D ECB34020G3 Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
ECB34020G3
Miniature Circuit Breaker
Brand
Square D
SKU
ECB34020G3
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

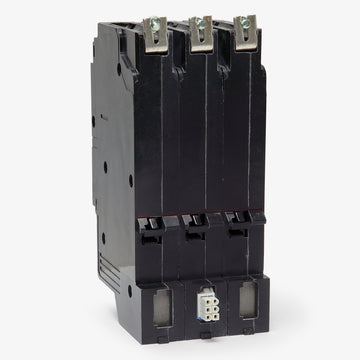

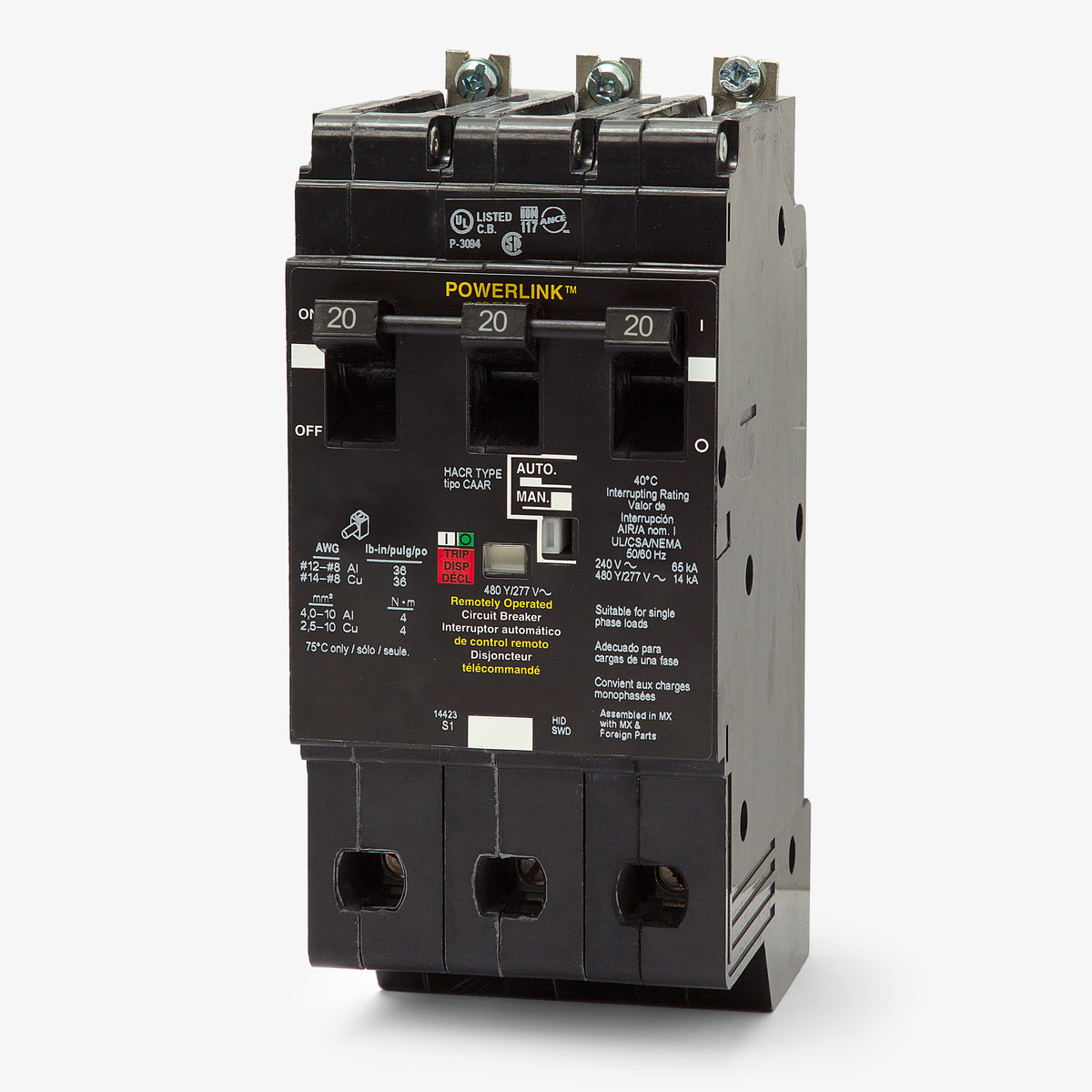

Square D ECB34020G3 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
A key component for smart lighting, the Square D ECB34020G3 is a 3-pole, 20A motorized circuit breaker. It is manufactured for Powerlink G3 control systems, allowing facility operators to switch loads remotely without additional external hardware. This E-frame breaker fastens into Square D NF panelboards using a standard bolt-on configuration. The internal motor operator provides reliable automated switching. Rated 14kAIC at 480Y/277VAC, the device is fully SWD, HID, and HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | ECB34020G3 |
| Series | ECB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | ECB |
|---|---|

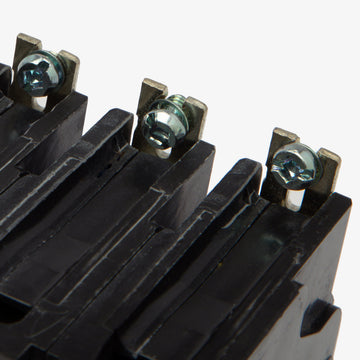

| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Powerlink G3 Lighting Control System |
| Wire Gauge | 12-8 AWG (Al), 10-8 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 12 AWG (Al), 10 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Motor Operator (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat panelboards are compatible with the ECB34020G3 circuit breaker?
This breaker is designed exclusively for Square D NF panelboards equipped with a Powerlink G3 control bus. It requires the control bus strip to plug into for remote operation.
What makes the Powerlink G3 ECB34020G3 different from a standard branch breaker?
The ECB34020G3 is a controllable circuit breaker featuring an internal motor. This allows facility operators to remotely switch lighting and other loads without needing external contactors or relays.
Is the ECB34020G3 rated for switching specialized commercial lighting?
Yes, this breaker is fully HID (High-Intensity Discharge) and SWD (Switching Duty) rated for commercial lighting management. It is also HACR rated for heating, air conditioning, and refrigeration equipment.
Does this breaker require additional control wiring for remote operation?

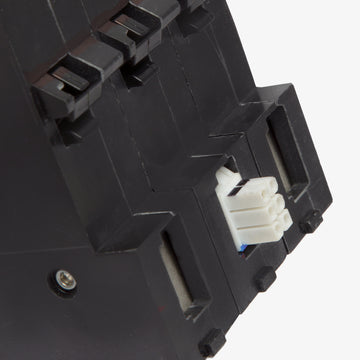

No additional external control wiring is needed at the breaker itself. The internal motor operator receives its control signals by plugging directly into the Powerlink G3 control bus strip installed in the NF panelboard.
Can I substitute a standard EDB34020 breaker for the ECB34020G3?
While both are 3-pole, 20A bolt-on breakers for NF panels, the standard EDB34020 lacks the internal motor operator. If your system relies on Powerlink G3 automated switching, you must use the ECB34020G3 to maintain remote control functionality.
Does this breaker provide visual trip indication?
Yes, it features the Square D Visi-Trip indicator. This provides clear visual confirmation when the breaker has tripped, allowing for rapid fault identification in the panelboard.
