Square D HGA36060SA Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Quantity

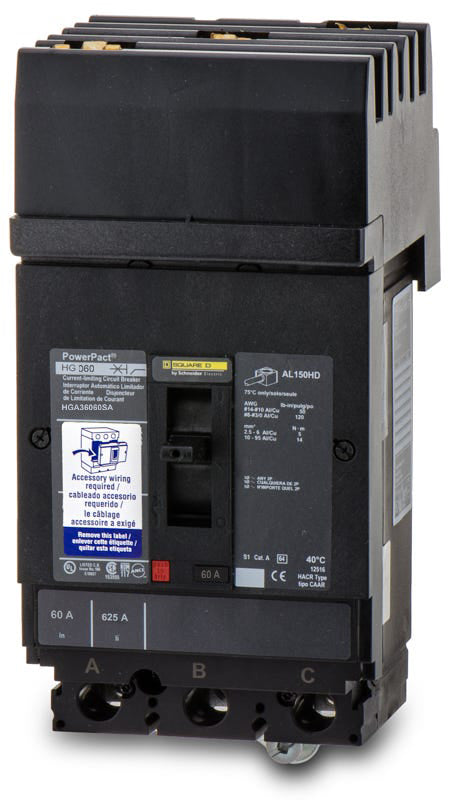

Square D HGA36060SA - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for advanced control, the Square D HGA36060SA is a 3-pole, 60A molded case circuit breaker featuring a factory-installed 120VAC shunt trip. This allows users to remotely open the breaker contacts for emergency shutdowns. The unit mounts into Square D I-Line panelboards and switchboards via a secure plug-on connection. It replaces legacy FA360601021 and FH360601021 breakers, upgrading older systems to modern PowerPacT H-Frame technology. It provides a 35kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36060SA |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator |
Product FAQs
6 answersWhat type of panelboards is the Square D HGA36060SA designed for?
This I-Line style plug-in circuit breaker is designed exclusively for use in Square D I-Line panelboards and switchboards.
What does the SA suffix indicate on the HGA36060SA catalog number?
The SA suffix indicates that this breaker includes a factory-installed 120VAC shunt trip, allowing you to remotely open the breaker contacts for emergency shutdowns or control applications.
Can the HGA36060SA replace older Square D FA or FH series breakers?
Yes, the HGA36060SA is the modern PowerPacT H-Frame replacement for legacy FA360601021 and FH360601021 I-Line circuit breakers, providing the same 60A rating and 120VAC shunt trip functionality.
What wire sizes and materials are compatible with the lugs on this breaker?
The factory-installed lugs accept wire gauges from 14 AWG up to 3/0 AWG, and they are rated for both aluminum and copper (Al/Cu) conductors.
What is the maximum DC voltage rating for the HGA36060SA?
This thermal magnetic circuit breaker is rated for up to 500VDC, with an interrupting capacity of 20kA at both 250VDC and 500VDC.
Does this breaker provide adjustable trip settings?
The HGA36060SA features a thermal magnetic trip unit with a fixed thermal element for long-time protection and an adjustable magnetic element for instantaneous short-circuit protection.
