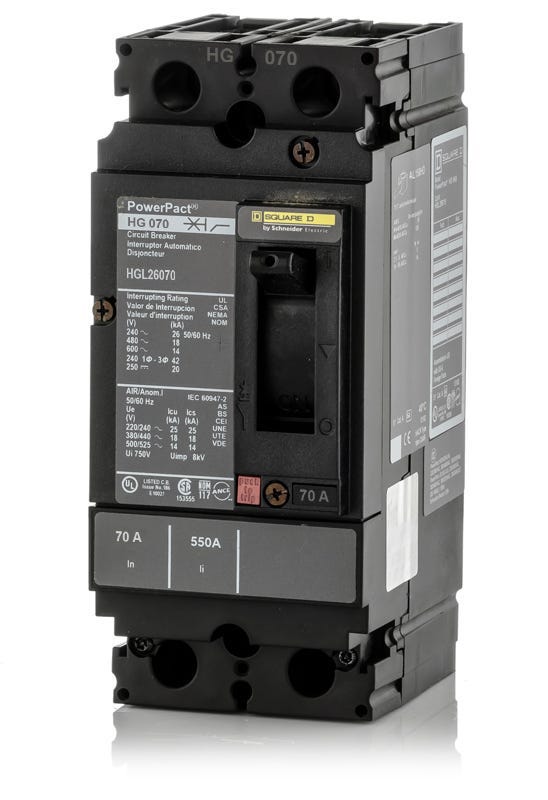

Square D HGL26070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Square D
HGL26070
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL26070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL26070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding environments, the Square D HGL26070 is a 70A, 2-pole PowerPacT H-Frame MCCB. It offers fixed thermal and adjustable magnetic (LI) trip functions. Designed as a unit-mount device, it integrates into industrial control panels and switchboards. This model replaces discontinued FHL26070 breakers. With a 65kAIC rating at 240V, this current-limiting breaker ensures superior safety. It includes a Visi-Trip indicator and carries an HACR rating.Specifications
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Product FAQs
5 answersWhat are the magnetic hold and trip current values for this 70A breaker?
The HGL26070 features a thermal magnetic trip unit with a fixed magnetic hold current of 800A and a magnetic trip current of 1450A.
Is the Square D HGL26070 suitable for reverse feeding?
Yes, this thermal magnetic PowerPacT H-Frame circuit breaker is suitable for reverse fed applications.
Can the HGL26070 be used to upgrade legacy KAL series breakers?
Yes, the PowerPacT H-Frame HGL26070 can serve as a modern replacement for the discontinued 70A, 2-pole KAL26070 circuit breaker when installed with the appropriate retrofit kit.
What type of panels are compatible with this unit mount breaker?
The HGL26070 is designed for installation in industrial control panels, switchboards, and PowerPacT H-Frame enclosures. Because it is a unit mount breaker with lugs on both ends, it cannot be installed in I-Line panelboards.
Does this breaker include a push-to-trip feature?
Yes, all PowerPacT circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker for testing and maintenance.
