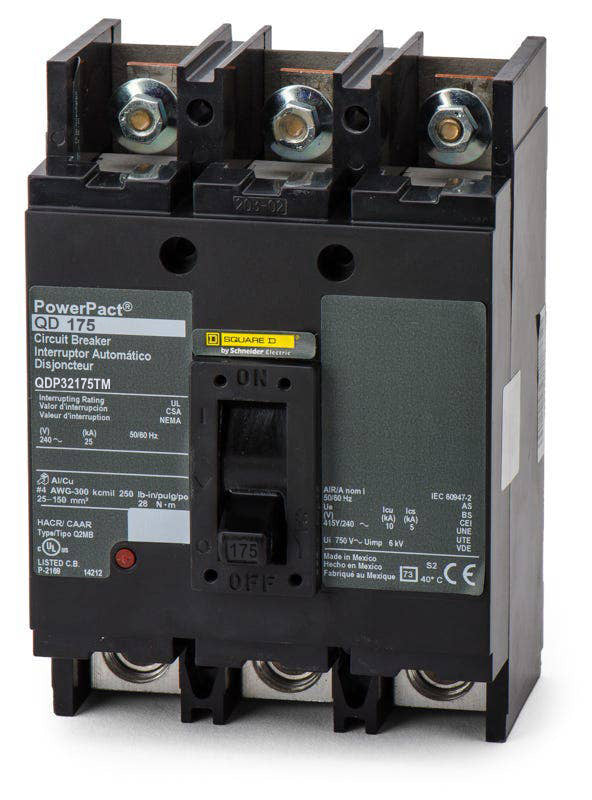

Schneider Electric / Square D QDP32175TM Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Schneider Electric / Square D
QDP32175TM
Molded Case Circuit Breaker
Brand
Schneider Electric / Square D
SKU
QDP32175TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Square D QDP32175TM - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D QDP32175TM is a 3-pole, 175A molded case circuit breaker from the PowerPacT Q-Frame series. It operates at 240VAC, delivering fixed thermal and magnetic (LI) trip functions. This unit mount breaker features stud terminals and is designed to integrate into Square D EZ Meter-Pak Meter Centers, replacing the legacy Q23175. It provides a 25kA interrupting capacity at 240V, is HACR rated, and includes a Visi-Trip indicator.Specifications
| Brand | Schneider Electric / Square D |
|---|---|
| Part Number | QDP32175TM |
| Series | QDP |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
5 answersWhat equipment is the QDP32175TM circuit breaker designed to fit?
This breaker is specifically engineered to integrate into Square D EZ Meter-Pak Meter Centers.
Which legacy Square D circuit breaker does the QDP32175TM replace?
The QDP32175TM is the direct replacement for the legacy Square D Q23175 circuit breaker.
What type of terminal connections does this Q-Frame breaker use?
It features stud terminals, also known as tapped pads, which are designed for direct bus connections or for use with bolt-on mechanical lugs.
How does the Visi-Trip indicator function on this breaker?
The Visi-Trip indicator provides a highly visible red flag that appears when the breaker has tripped, making it easy to quickly identify a faulted circuit in a multi-breaker panel.
What does the HACR rating mean for the QDP32175TM?
The HACR rating indicates that this breaker is tested and approved for use with Heating, Air Conditioning, and Refrigeration equipment, ensuring it can safely handle the specific inrush currents generated by those motor loads.
