Schneider Electric EDB14035 Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Quantity

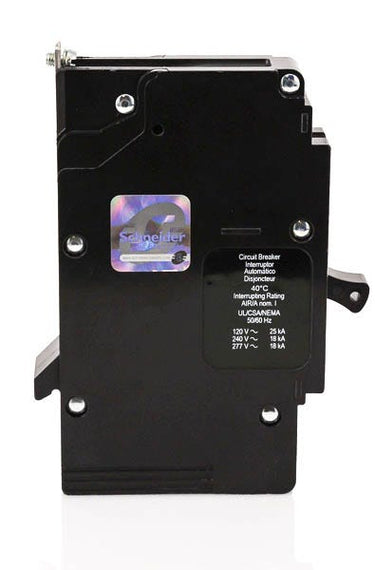

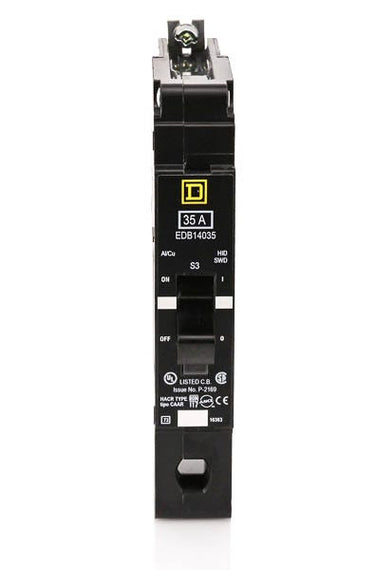

Schneider Electric EDB14035 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Built for commercial and industrial distribution, this 35A single-pole E-Frame breaker delivers reliable thermal-magnetic protection. It installs into Square D NF panelboards and serves as a direct replacement for older EGB or EJB models. The unit features a Visi-Trip visual indicator that clearly identifies a tripped condition, reducing downtime during electrical faults. It is HACR and HID rated, making it suitable for air conditioning and high-intensity discharge lighting circuits.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | EDB14035 |
| Series | EDB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 25kA @ 120/240VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG - 2/0 AWG (Cu), 12 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Alarm Switch, Auxiliary Switch, Padlock Attachment, Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, HID, NEMA AB 1, UL 489, IEC 60947-2 |
| Approval | CE, CSA, cULus, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator, Mercury Free, RoHS Compliant |
Product FAQs
6 answersWhich panelboards accept the EDB14035 circuit breaker?
The EDB14035 is a bolt-on E-Frame breaker built specifically for Square D NF lighting and distribution panelboards. It is not compatible with NQ or I-Line panels.
Can the EDB14035 replace EGB or EJB series breakers?
Yes, EDB, EGB, and EJB breakers share the same physical E-Frame dimensions and mount into the same NF panelboards. However, the EDB14035 has a standard interrupting rating of 18 kA at 277VAC. You must verify that this standard rating meets your available fault current before replacing a higher-rated EGB or EJB breaker.
Is the EDB14035 rated for 480V systems?
As a 1-pole breaker, the EDB14035 is rated for a maximum of 277VAC across the pole. It is designed for use in 480Y/277VAC solidly grounded wye systems where the line-to-neutral voltage does not exceed 277V. It cannot be used on ungrounded 480V delta systems.
What are the wire gauge requirements for the EDB14035 terminals?
The factory-installed lugs accept 14 to 2/0 AWG copper conductors or 12 to 2/0 AWG aluminum conductors. Ensure proper torque specifications are followed during installation as outlined by Schneider Electric.
How does the trip mechanism function on the EDB14035?
This breaker features a non-interchangeable thermal-magnetic trip unit. It provides fixed long-time thermal protection for overloads and fixed instantaneous magnetic protection for short circuits.
Does the EDB14035 feature a visual trip indicator?
Yes, this breaker includes Square D's Visi-Trip visual indicator. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears, allowing electricians to quickly identify the faulted circuit in a crowded NF panelboard.
