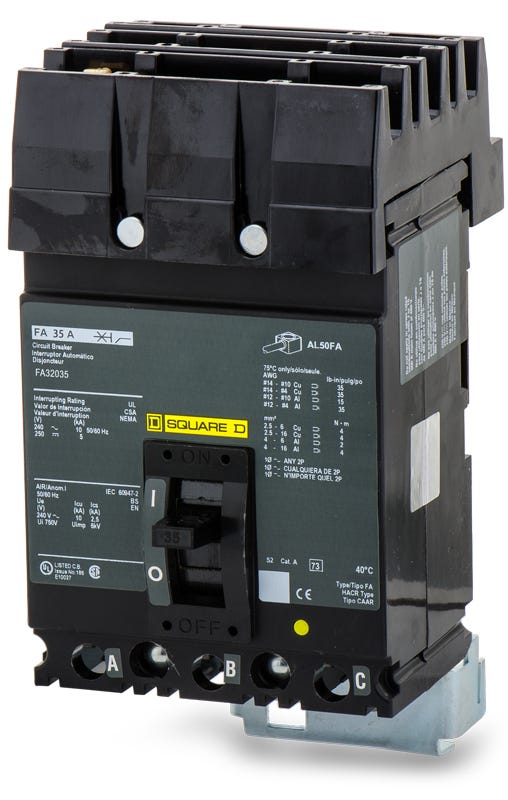

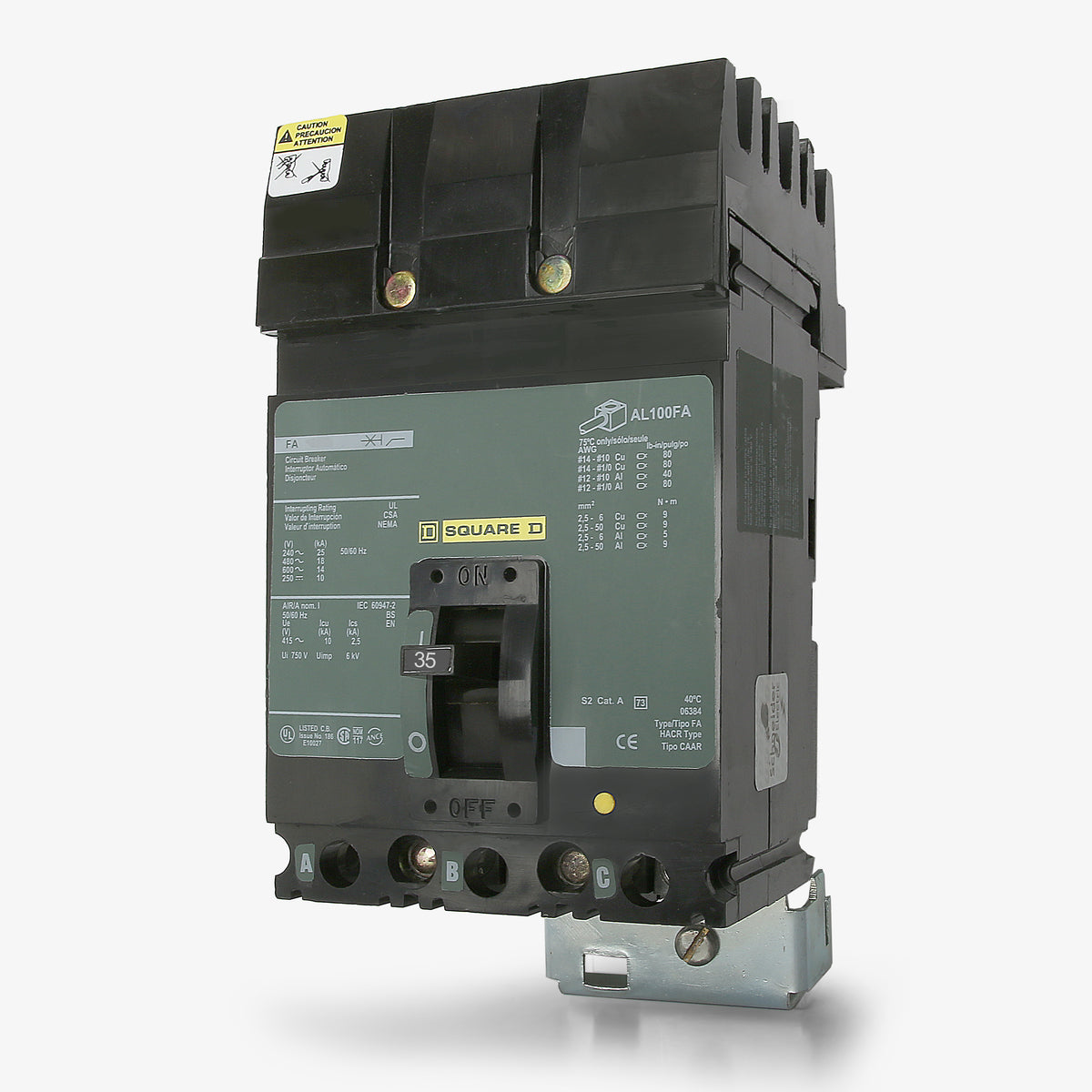

Schneider Electric FA32035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- I-Line
Schneider Electric
FA32035
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
FA32035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric FA32035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric FA32035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | FA32035 |
| Series | FA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Schneider Electric FA32035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | FA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial facilities, the FA32035 is a 3-pole, 35A molded case circuit breaker from Schneider Electric. It utilizes fixed thermal and magnetic trip elements to provide essential long-time and instantaneous protection. This F-frame breaker mounts into standard I-Line panelboards and switchboards. It includes load-side lugs and is officially replaced by the BDA34035Y model. With a 10 kAIC rating at 240VAC, it handles standard fault currents and complies with UL 489 standards.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | FA32035 |
| Series | FA |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the FA32035 circuit breaker?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features a plug-on mounting style that connects directly to the I-Line bus.
Is the FA32035 still actively manufactured by Schneider Electric?
The FA frame is a legacy molded case circuit breaker and has been discontinued by the manufacturer. It is typically replaced by the modern PowerPact B-frame equivalent, such as catalog number BDA34035Y, for I-Line applications.

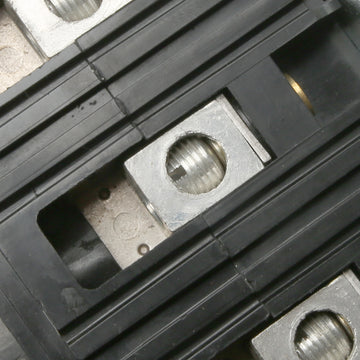

What wire sizes are accepted by the lugs on this breaker?
The factory-installed mechanical lugs accept 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
What does the 10kAIC rating indicate for this 35A breaker?
The 10kAIC interrupting rating means the breaker can safely clear up to 10,000 amps of available fault current at 240VAC without sustaining catastrophic damage.

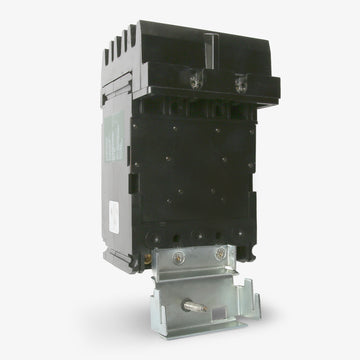

How does the I-Line connection type work on the FA32035?
The I-Line connection uses a specialized blow-on plug-on design that grips the panelboard bus tighter during short circuits. This provides a secure, fast installation and reduces the risk of arcing during high fault conditions.
What type of trip unit is installed in the FA32035?
It features a fixed thermal-magnetic trip unit. The thermal bimetal component responds to standard overloads, while the magnetic component provides instantaneous protection against short circuits.
