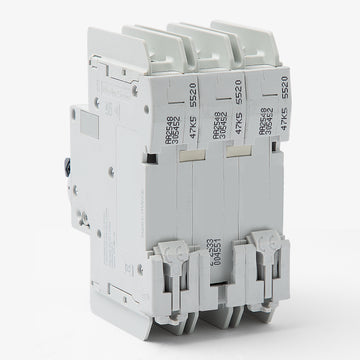

Schneider Electric M9F42306 Miniature Circuit Breaker
- 6A
- 3 Pole
- DIN Rail
Quantity
Schneider Electric M9F42306 - 6A 3 Pole Miniature Circuit Breaker
New
Quantity
Description

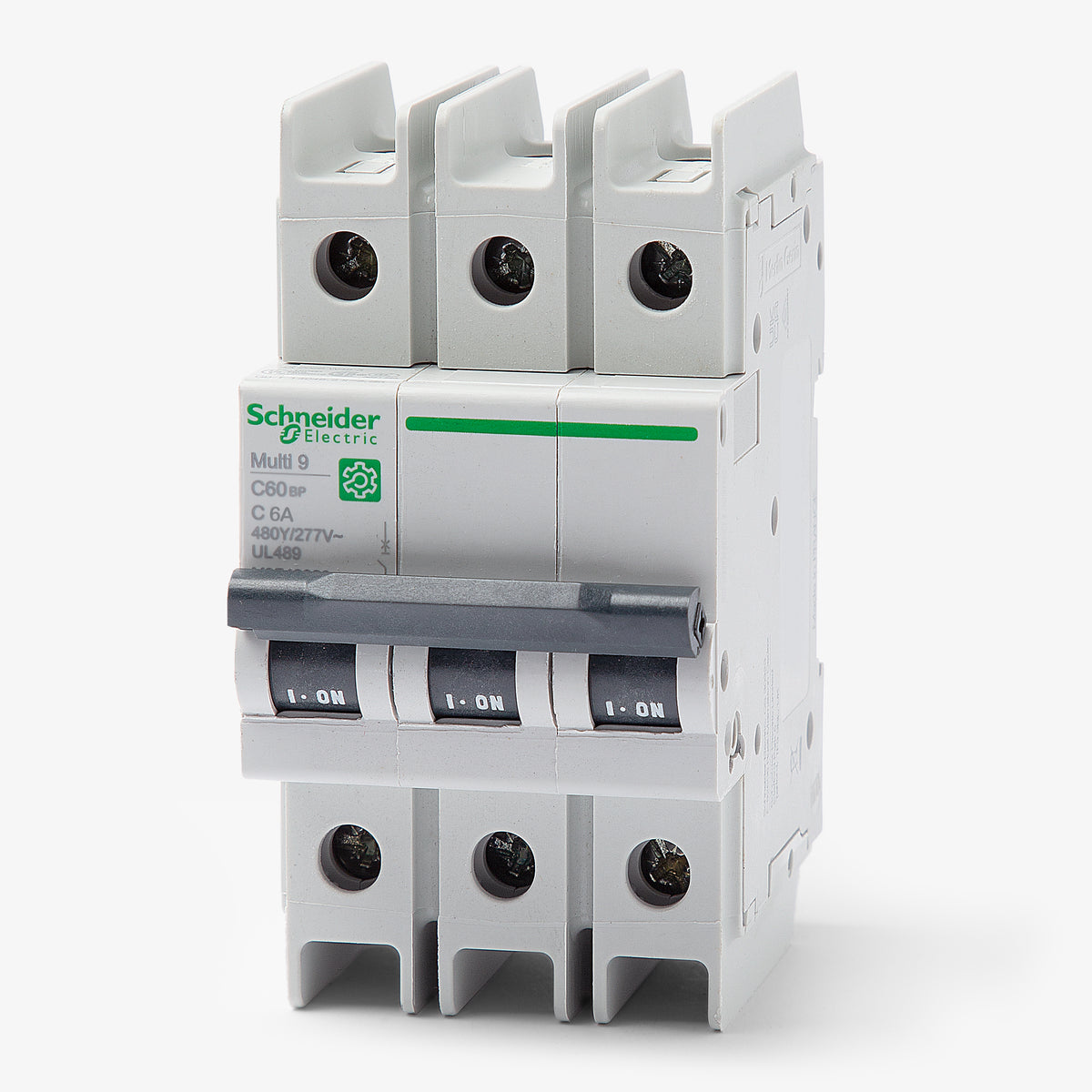

Part of the Multi9 C60BP line, this 6A miniature circuit breaker delivers reliable thermal-magnetic protection for industrial applications. Schneider Electric designed this three-phase unit to safeguard OEM equipment and control circuits against overloads and short circuits. It fastens securely to standard DIN rails inside compatible panelboards. This model is an excellent alternative to FAZ-C6/3-NA and 5SJ4306-7HG42 breakers.Specifications
| Brand | Schneider Electric |
|---|---|
| Series | C60BP |
| Amperage | 6A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 14kA @ 240VAC, 10kA @ 480Y/277VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | DIN Rail Panels, OEM Equipment |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Padlock Attachment (Provision) |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -30C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
8 answersWhat trip curve does the M9F42306 circuit breaker feature?
This Multi9 breaker has a C tripping curve. The magnetic trip operates at approximately 8.5 times the rated current, making it ideal for general purpose loads and control circuits with moderate inrush currents.
Which global standards does this Multi9 C60BP breaker meet?
It is a multi-standard device that complies with UL489, CSA C22.2 No 5, EN/IEC 60947-2, and GB 14048.2. This makes it highly suitable for global OEM equipment and control panel builders.
How much DIN rail space does the M9F42306 occupy?

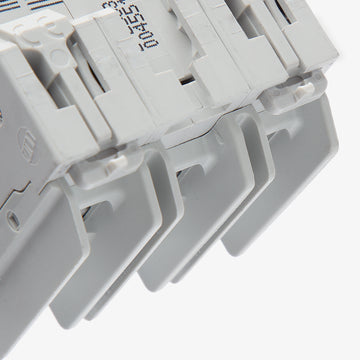

This 3-pole breaker has a total width of 54mm. It takes up six 9mm pitches on a standard 35mm DIN rail.
Can I add auxiliary contacts or shunt trips to this breaker?
Yes, the C60BP series is compatible with field-installable Multi9 electrical auxiliaries. You can add shunt trips, undervoltage releases, and auxiliary or fault indicator contacts to the circuit breaker.
What is the acceptable operating temperature range for this breaker?
The M9F42306 is rated to operate safely in ambient temperatures ranging from -30 to 70 degrees Celsius, or -22 to 158 degrees Fahrenheit.
What is the touch protection rating for the terminals on this breaker?

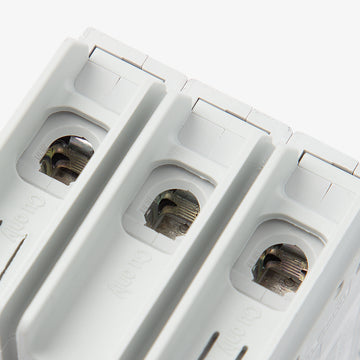

The screw clamp tunnel terminals feature an IP20 degree of protection per IEC 60529, which prevents accidental finger contact with live electrical connections.
What is the expected mechanical and electrical endurance of the M9F42306?
Designed for long-term reliability, this miniature circuit breaker offers a mechanical endurance of up to 20,000 cycles and an electrical endurance of up to 10,000 cycles.
What is the UPC for the Schneider Electric M9F42306?
The standard UPC for this 6A Multi9 C60BP circuit breaker is 785901705031.
