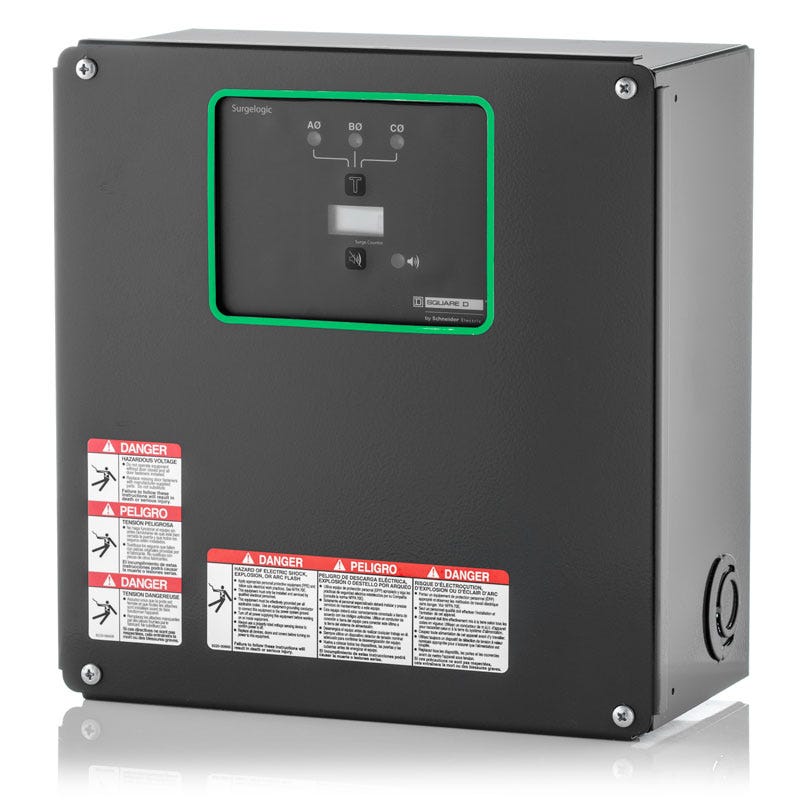

Schneider Electric SSP04EMA24 Surge Protection Device
Schneider Electric SSP04EMA24 surge protection device has the voltage rating of 480Y/277 v ac. The SSP04EMA24 has a surface mounting type, gray painted sheet steel enclosure material.
Specifications
| Voltage | 480Y/277 V AC |
|---|---|
| Series | EMA |
| Mounting Type | Surface |
| NEMA Rating | 1 |
| Phase | 3 |
|---|
| Wire Gauge | Lugs AWG 10 - AWG 2 copper 35.40 lbf.in (4 N.m) |
|---|---|
| Number Of Wires | 4 |
| Approval | UL,CSA |
|---|---|
| Temperature Rating | 149 °F (65 °C) |
| Enclosure Material | Gray Painted Sheet Steel |
| Brand | Schneider Electric |
|---|---|
| GTIN | 785901991489 |
