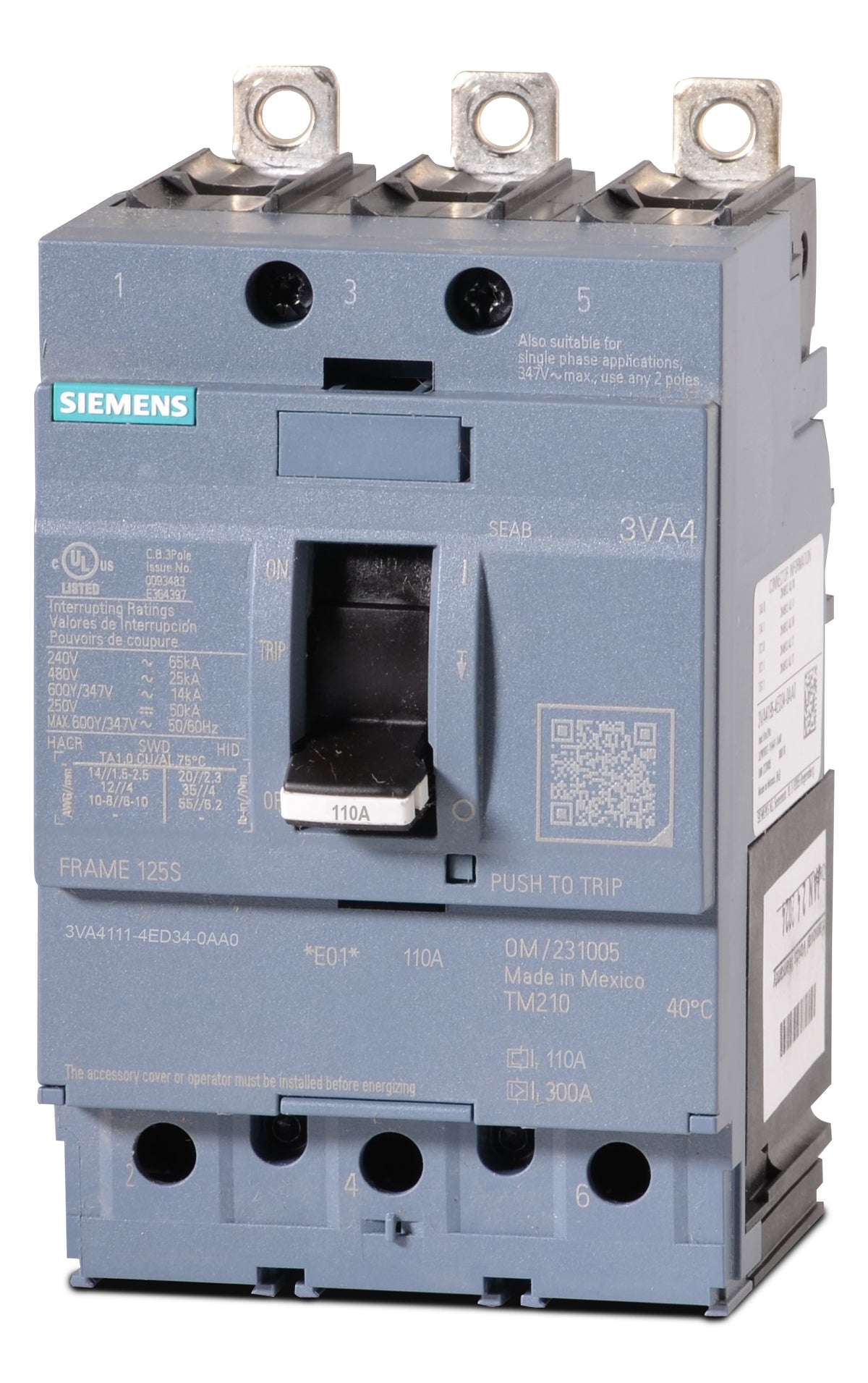

Siemens 3VA4111-4ED34-0AA0 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
3VA4111-4ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4111-4ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4111-4ED34-0AA0 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced 3VA4 frame lineup, this 110A molded case circuit breaker delivers fixed thermal-magnetic trip functions for commercial applications. It serves as an exact fit for Siemens P1, P2, and P3 panelboards. Designed to replace older SEAB series components, the bolt-on unit features load side lugs and accepts 8 to 3/0 AWG wire. Rated for 25 kAIC at 480VAC, the breaker ensures robust fault clearing. It includes HACR certification and current-limiting capabilities.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the 3VA4111-4ED34-0AA0?
This 3VA41 frame breaker is designed as a direct fit for Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It is also designed to replace older SEAB series components.
How is this breaker mounted, and what terminals are included?
The 3VA4111-4ED34-0AA0 is a bolt-on circuit breaker. It comes factory-equipped with load-side lugs that accept 8 AWG to 3/0 AWG copper or aluminum wire.
What type of trip unit is installed in the 3VA4111-4ED34-0AA0?
This breaker features a TM210 thermal-magnetic trip unit. It provides fixed thermal (Ir) and fixed magnetic (Ii) protection settings.
What does the LI trip function mean for this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. On this specific model, both the thermal and magnetic trip points are fixed.
Can this 3VA4 breaker be used in DC electrical systems?
Yes, this breaker is rated for use in DC applications up to 250V DC, where it provides an interrupting capacity of 50kA.
What older Siemens breakers can the 3VA4111-4ED34-0AA0 replace?
This 3VA41 frame breaker is designed to replace legacy Siemens SEAB series circuit breakers in existing panelboards and switchboards.
Is this breaker suitable for reverse feeding?
Yes, standard Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
