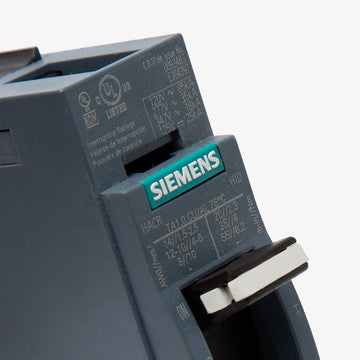

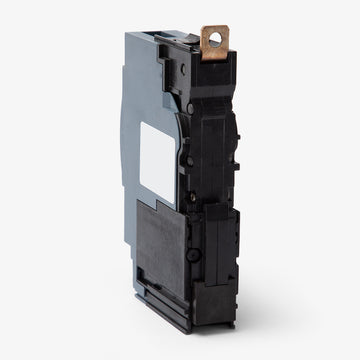

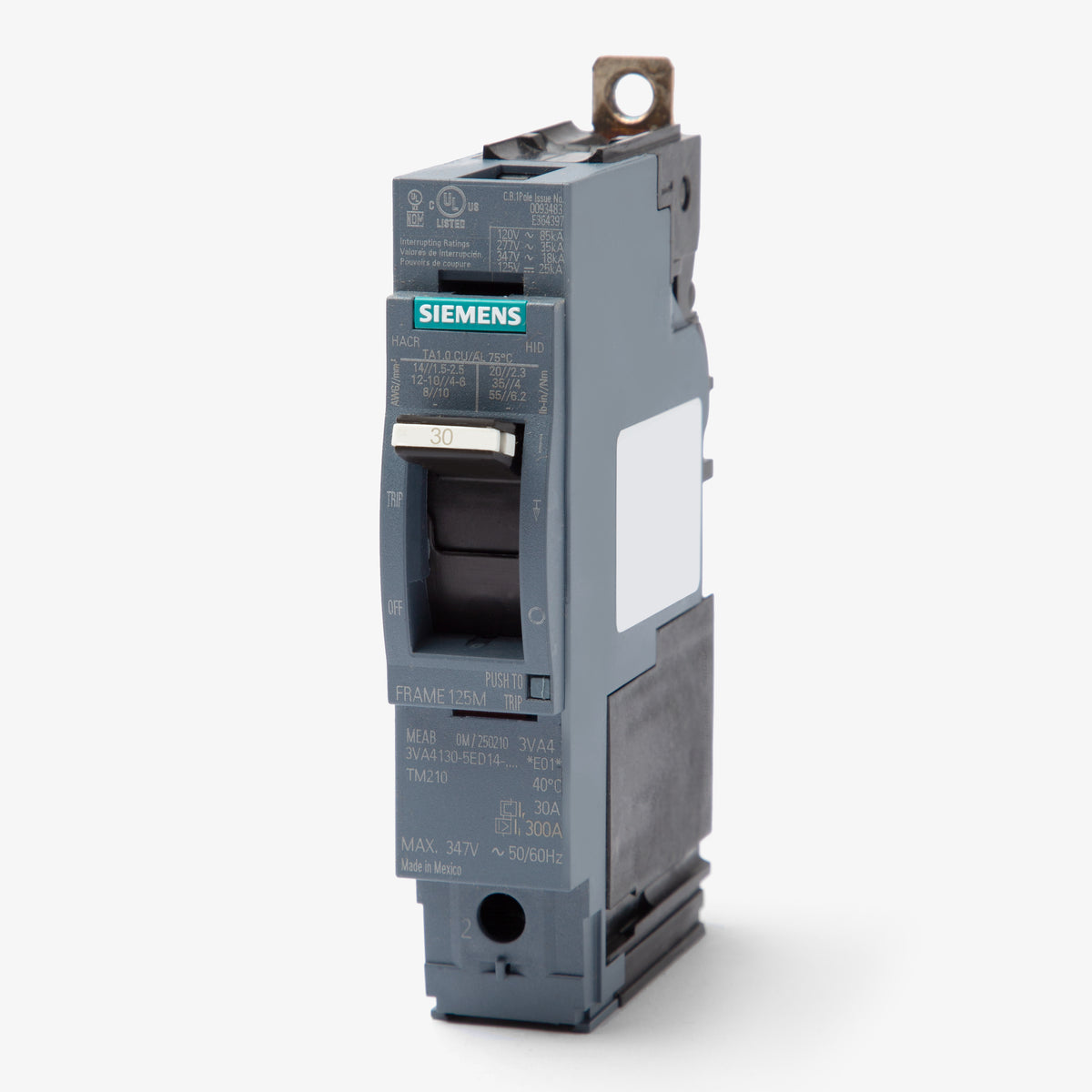

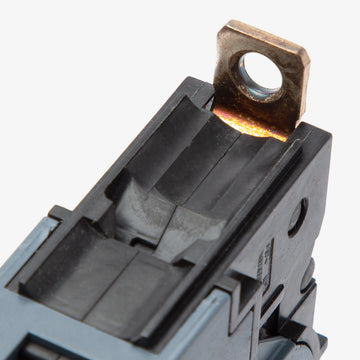

Siemens 3VA4130-5ED14-0AA0 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
3VA4130-5ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-5ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-5ED14-0AA0 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON 3VA4 series, this 30A single-pole molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial applications. It installs into Siemens P1, P2, and P3 panelboards and switchboards using a secure bolt-on connection. Serving as an upgraded replacement for older MEAB series and ED61B030 models, it requires a mounting kit for proper retrofit. The unit features an 85kAIC rating at 120VAC, along with HACR and HID certifications.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 85kA @ 120VAC, 35kA @ 277VAC, 18kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Siemens panelboards accept the 3VA4130-5ED14-0AA0 breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 commercial panelboards, as well as compatible switchboards. It is not intended for standard residential load centers.
What are the acceptable wire sizes for the terminals on this 30A breaker?
The factory-installed lugs accept 14 AWG to 8 AWG wire. Both copper and aluminum conductors are permitted.
What does the LI trip function indicate for this 3VA4 breaker?
It features a thermal-magnetic trip unit with fixed long-time (L) and fixed instantaneous (I) protection. This provides standard overload and short-circuit protection without adjustable dials.
What frame size does the 3VA4130-5ED14-0AA0 belong to?
It is part of the Siemens SENTRON 3VA41 frame group, which has a maximum physical frame rating of 125A.
Can this breaker replace older Siemens ED or MEAB series breakers?
Yes, the 3VA4 series serves as an upgraded replacement for older MEAB and ED61B030 models in Siemens panels, though a specific mounting kit may be required for proper retrofit.
Is this breaker suitable for reverse feed applications?
Yes, Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
