Siemens 3VA4130-4ED34-0AA0 Circuit Breaker
- 30
- 3 Pole
- Bolt-On
Quantity
Siemens 3VA4130-4ED34-0AA0 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4130-4ED34-0AA0 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Siemens 3VA4130-4ED34-0AA0 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Description

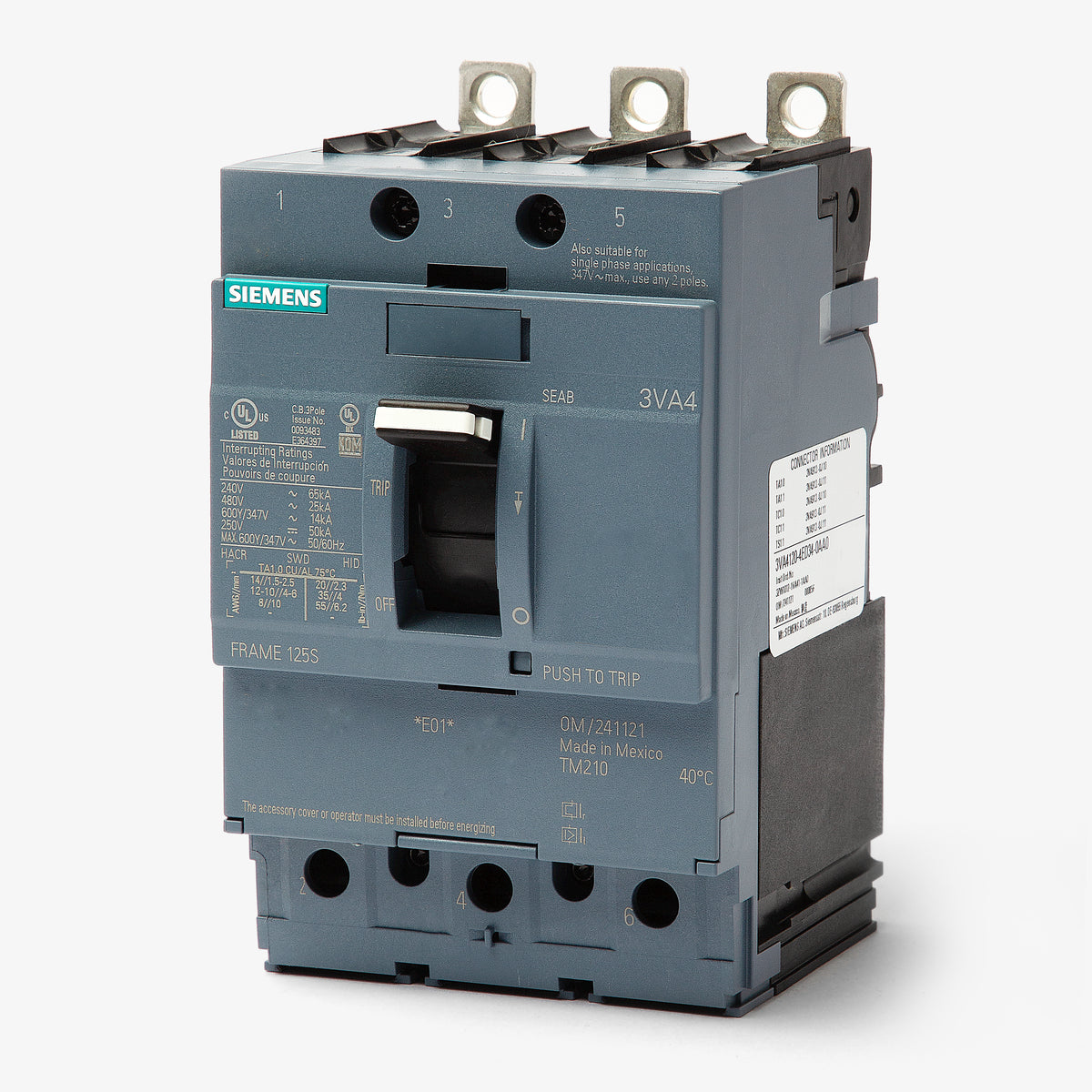

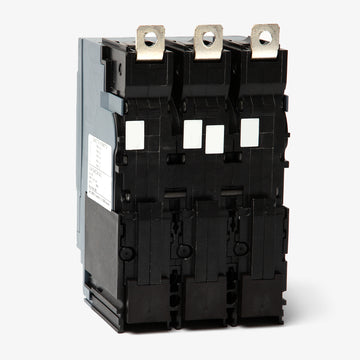

Siemens 3VA4130-4ED34-0AA0 3 Pole Circuit Breaker
The Siemens 3VA4130-4ED34-0AA0 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480V. The 3VA4130-4ED34-0AA0 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
8 answersWhich Siemens panelboards are compatible with the 3VA4130-4ED34-0AA0 circuit breaker?
This breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
What is the frame size of the 3VA4130-4ED34-0AA0 breaker?
It is built on the Siemens 3VA41 frame, which has a maximum capacity of 125 amps. This specific model is factory-set with a 30-amp continuous current rating.
What trip unit is installed in the 3VA4130-4ED34-0AA0?
It features a TM210 thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.

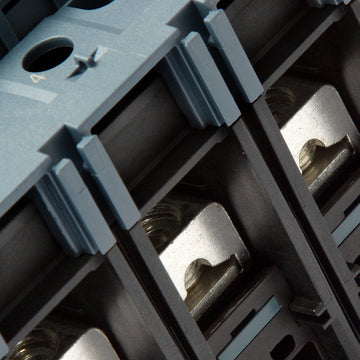

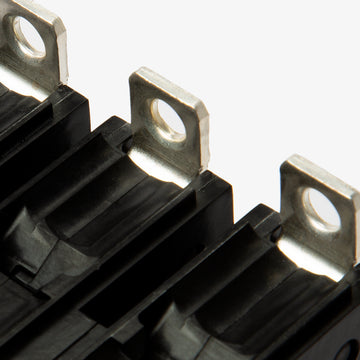

Does the Siemens 3VA4130-4ED34-0AA0 come with lugs installed on both sides?
No, this bolt-on branch breaker comes with lugs installed on the load side only. The line side bolts directly to the panelboard bus.
What wire sizes are compatible with the load lugs on the 3VA4130-4ED34-0AA0?
The factory-installed load lugs accept 14 AWG to 8 AWG copper or aluminum conductors.
What is the recommended tightening torque for the load lugs on the 3VA4130-4ED34-0AA0?
The recommended tightening torque for the load side lugs on this 30A model is 35 lb-in. Always verify with the label on the breaker before finalizing installation.
Is the 3VA4130-4ED34-0AA0 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment applications.
Can the 3VA4130-4ED34-0AA0 be reverse fed?
Yes, this circuit breaker is rated for reverse feed applications.
