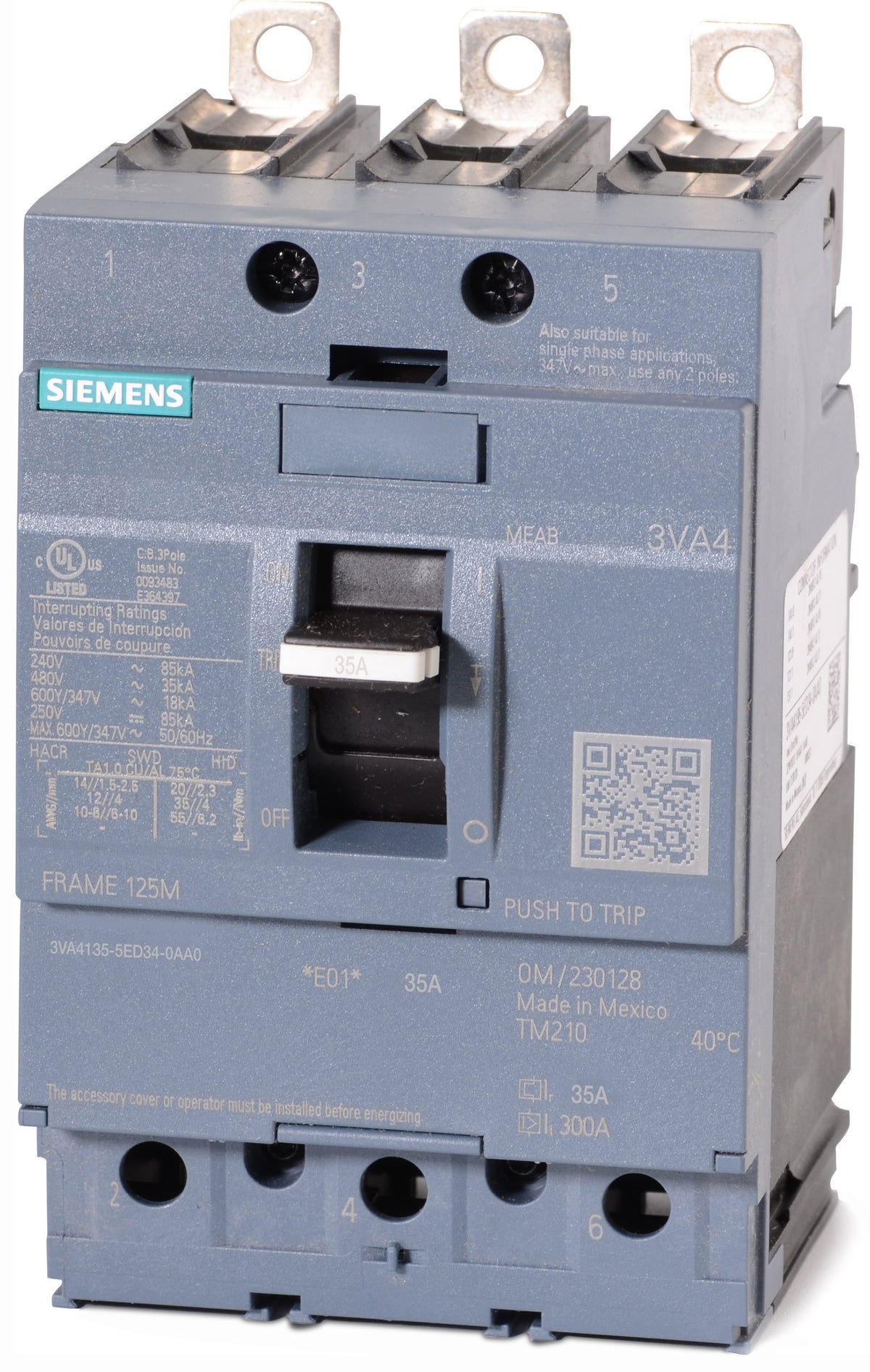

Siemens 3VA4135-5ED34-0AA0 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Quantity
Siemens 3VA4135-5ED34-0AA0 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for demanding industrial environments, the Siemens 3VA41355ED340AA0 delivers 35A of continuous current across three poles. It features a 35kAIC interrupting rating at 480VAC and includes a special Naval rating for specialized marine or heavy-duty applications. This bolt-on MCCB installs into Siemens P1 panelboards and acts as an exact substitute for the older ED43B035 model. It utilizes fixed thermal and magnetic trip elements for precise Long-Time and Instantaneous protection.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14 AWG - 8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat older Siemens circuit breaker does the 3VA4135-5ED34-0AA0 replace?
This breaker serves as a direct substitute for the legacy Siemens ED43B035 model. It fits the same footprint and applications in Siemens P1 panelboards.
Which panelboards accept the 3VA4135-5ED34-0AA0 breaker?
This bolt-on MCCB is specifically designed for installation in Siemens P1 panelboards. It is not intended for use in standard residential load centers.
What wire gauge range do the lugs on this breaker accept?
The factory-installed lugs accommodate wire sizes from 14 AWG up to 8 AWG. Ensure proper torque specifications are followed during installation as outlined on the breaker faceplate.
What does the Naval rating on this breaker signify?
The Naval rating indicates this breaker is certified for specialized marine environments and heavy-duty applications. It is built to withstand the demanding conditions and vibrations typically found in maritime installations.
Are the trip settings adjustable on this 3VA41 breaker?
No, this model features fixed thermal and fixed magnetic trip elements for Long-Time and Instantaneous (LI) protection. The trip thresholds cannot be adjusted in the field.
Can this Siemens 3VA4 breaker be used in DC circuits?
Yes, it is rated for use in DC applications up to 250VDC, providing an interrupting capacity of 85kA at that voltage.
