Siemens 3VA4170-4ED34-0AA0 Circuit Breaker
- 70
- 3 Pole
Quantity
Siemens 3VA4170-4ED34-0AA0 3 Pole Circuit Breaker
New
Quantity
Description

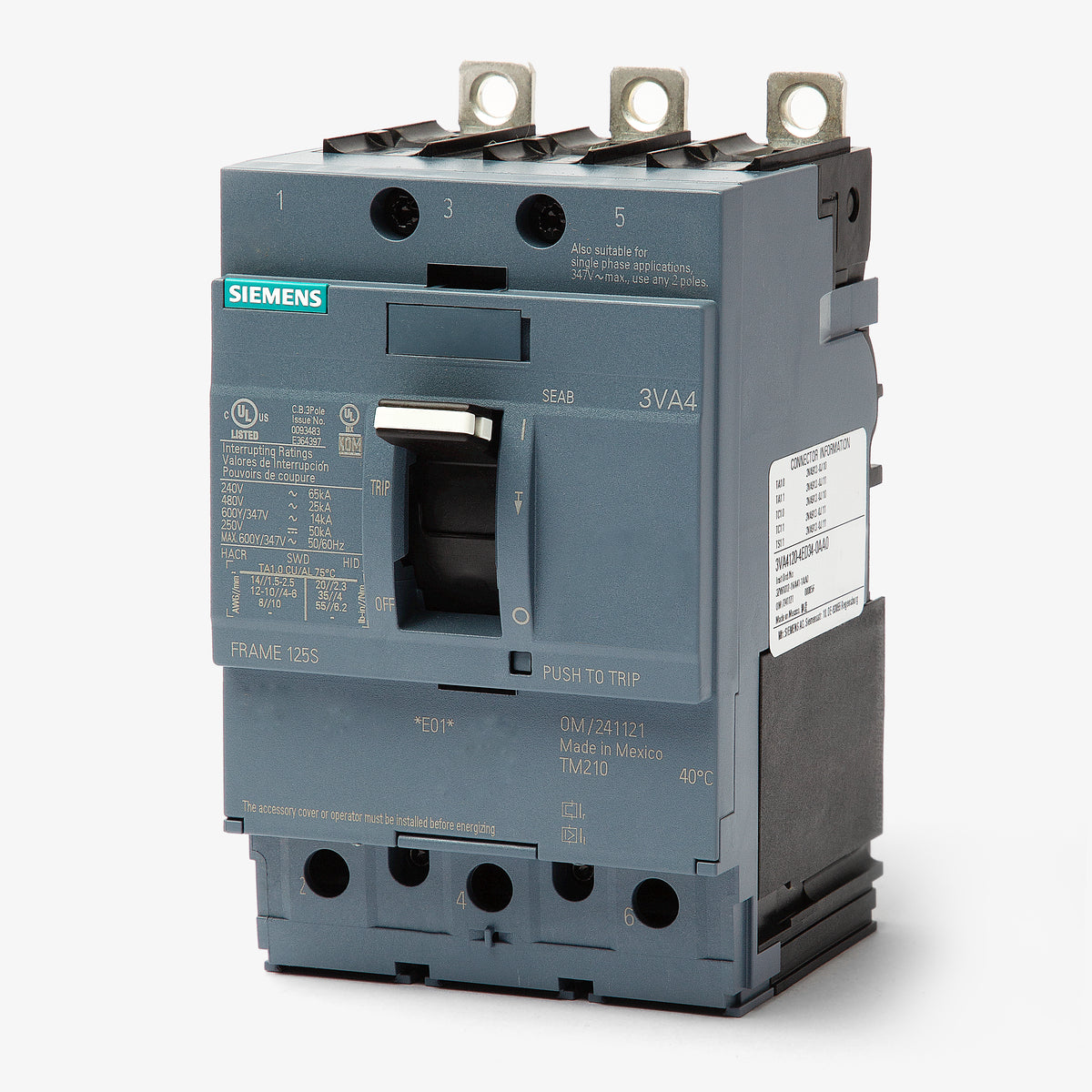

Siemens 3VA4170-4ED34-0AA0 3 Pole Circuit Breaker
The Siemens 3VA41704-ED340-AA0 is a 3 Pole molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 480V. It has an interrupting rating of 25kA@480V and features with clamp connection type.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4170-4ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 70 A |
| Poles | 3 |
| Voltage | 480V |
| AIC Rating | 25kA@480V |
| Terminal Type | Load Lug |
|---|
| Approval | UL |
|---|
Product FAQs
6 answersWhat are the complete interrupting ratings for the 3VA4170-4ED34-0AA0?
This S-Class breaker provides a 65 kA interrupting rating at 240V AC, 25 kA at 480V AC, and 14 kA at 600Y/347V AC.
How are the connections configured on the 3VA4170-4ED34-0AA0?

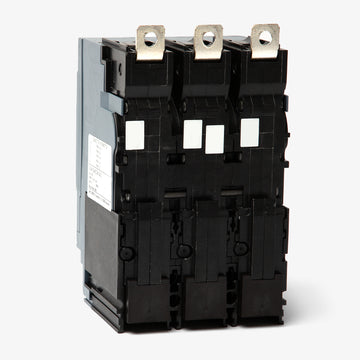

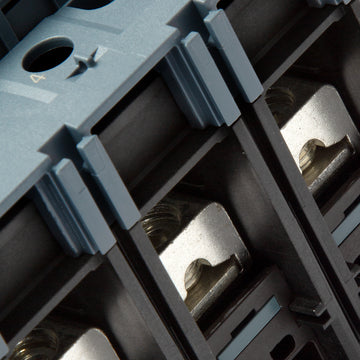

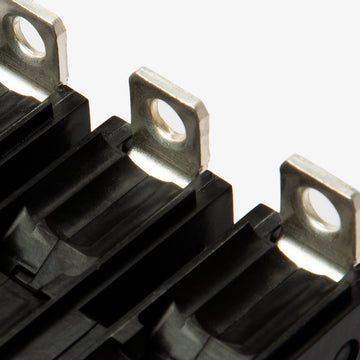

This breaker includes clamp-style lugs factory-installed on the load side only. Line side connections require separate hardware or panelboard mounting kits depending on your application.
What type of trip unit is equipped on this Siemens 3VA4 breaker?
It features a TM210 thermal-magnetic trip unit. Both the thermal overload (Ir) and instantaneous short-circuit (Ii) protection settings are fixed.
What is the frame size for the 3VA4170-4ED34-0AA0?
This breaker is built on the Siemens 3VA41 frame, which has a maximum capacity of 125 amps.
What are the physical dimensions of the 3VA4170-4ED34-0AA0?
The breaker measures 3 inches wide, 5.5 inches high, and 3.7 inches deep.
What is the UPC for the 3VA4170-4ED34-0AA0?
The UPC for this 70-amp Siemens circuit breaker is 00804766944048.
