Siemens 3VA4170-5ED34-0AA0 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens
3VA4170-5ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4170-5ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

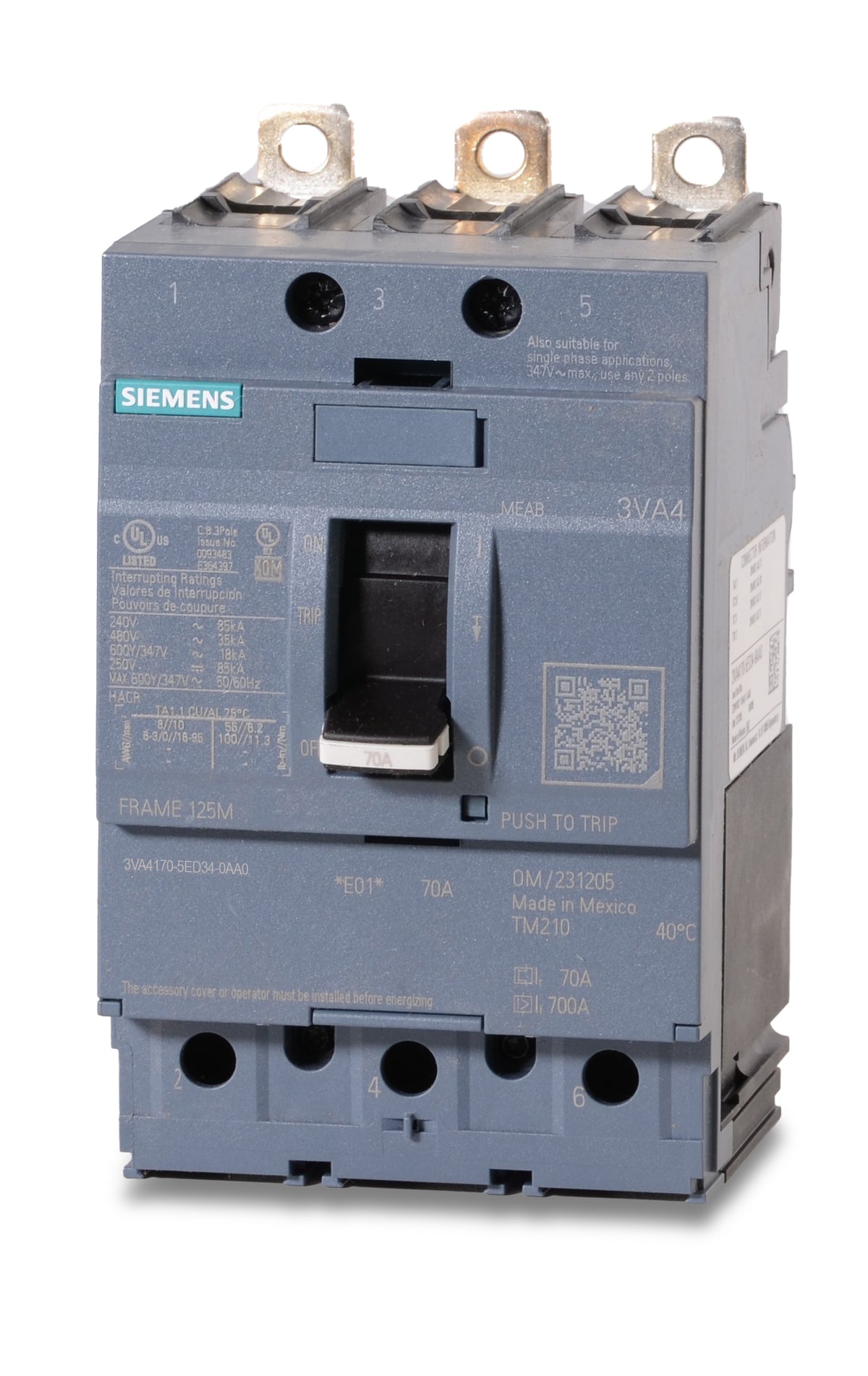

Siemens 3VA4170-5ED34-0AA0 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 3-pole 70A molded case circuit breaker provides reliable overcurrent protection. The unit features fixed thermal and fixed magnetic trip settings for consistent performance across distribution networks. Designed for seamless integration, it bolts into Siemens P1, P2, and P3 panelboards and switchboards. This model serves as a modern drop-in replacement for legacy ED63B070 breakers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4170-5ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan the 3VA4170-5ED34-0AA0 replace a legacy ED63B070 breaker?
Yes, this 3VA4 series unit is engineered as a modern drop-in replacement for the legacy ED63B070. It bolts directly into the same Siemens distribution equipment without requiring structural modifications.
Which Siemens panelboards accept this 3VA41 frame circuit breaker?
This bolt-on breaker is designed for direct installation into Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards used in commercial and industrial facilities.
What conductor sizes and materials are supported by the factory lugs?
The included lugs accommodate wire gauges from 8 AWG up to 3/0 AWG. They are dual-rated for use with either copper or aluminum conductors.
Does this molded case breaker support DC voltage applications?
Yes, it is fully rated for 250V DC systems and provides an 85kA interrupting capacity at that voltage, allowing integration into specialized industrial DC networks.
How does the trip unit function on this specific 3VA4 model?
The breaker utilizes a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. This provides reliable Long-Time and Instantaneous (LI) protection against overloads and short circuits.
What are the interrupting capacities for standard commercial AC voltages?
The breaker delivers a 35kA interrupting rating at 480V and 480/277V AC. For lower voltage 240V AC systems, the interrupting capacity is rated at 85kA.
