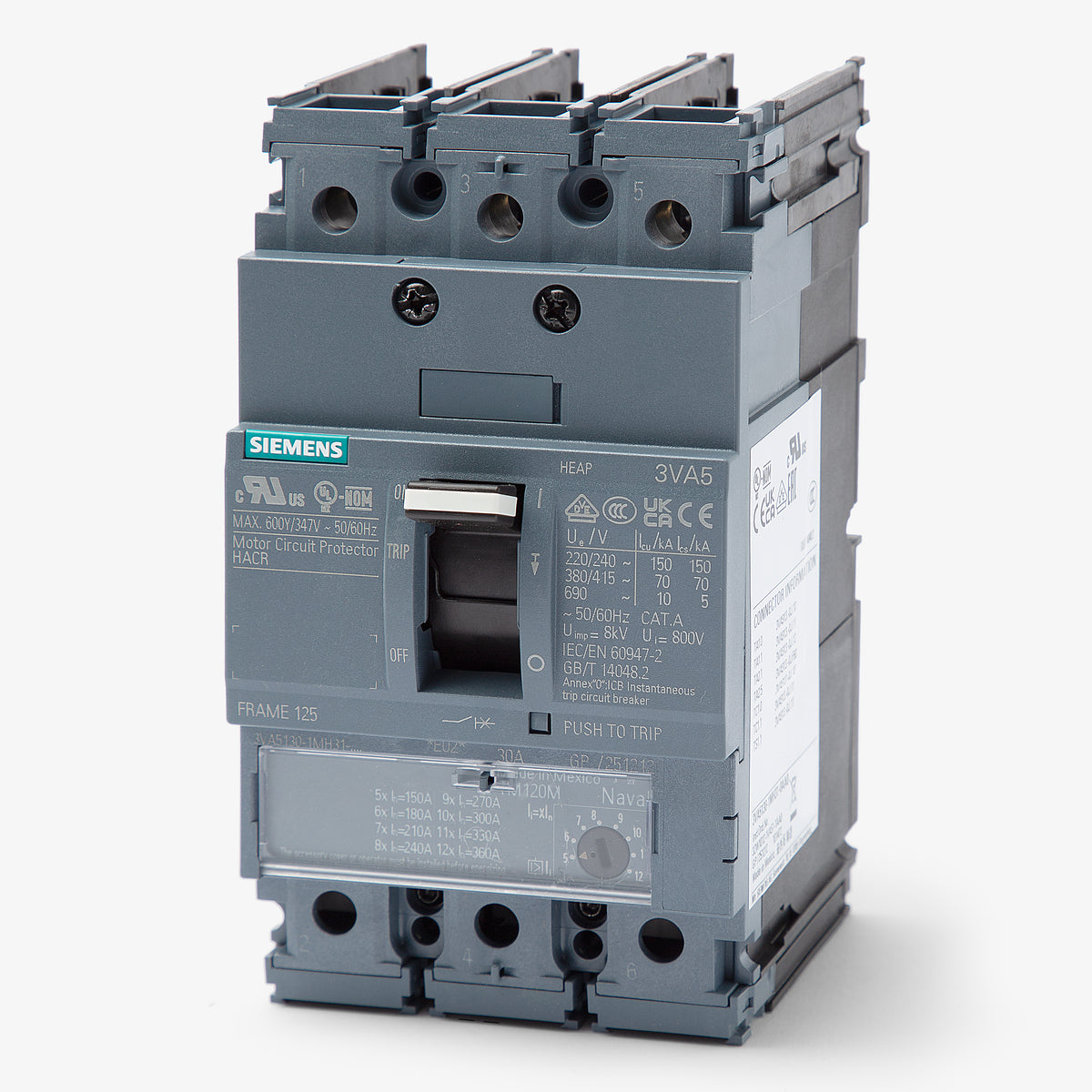

Siemens 3VA5107-1MH31-0AA0 Motor Circuit Protector

  • 7A
  • 3 Pole
  • Panel Mount
Siemens 3VA5107-1MH31-0AA0
Motor Circuit Protector
Brand Siemens
SKU 3VA5107-1MH31-0AA0
Select Item Condition
Earn 609 SuperPoints
  • 7A
  • 3 Pole
  • Panel Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Siemens 3VA5107-1MH31-0AA0 - 7A 3 Pole Motor Circuit Protector

Siemens 3VA5107-1MH31-0AA0 - 7A 3 Pole Motor Circuit Protector

New

$609.00 In Stock

Quantity

Description Specifications SuperClub Warranties Shipping Reviews 4.8 (8)

Description

Designed for dedicated motor control, this 7-amp magnetic-only circuit protector safeguards starters and branch circuits against short circuits. It is part of the modern Siemens SENTRON 3VA5 frame lineup. The unit is compatible with Siemens P1 through P5 panelboards, as well as switchboards and MCCs. A separate mounting kit is required for panelboard installation, and it ships without lugs. It provides 65 kAIC at 480V and an adjustable 35-84A magnetic trip to fine-tune inrush response.

Specifications

Key specifications
Brand Siemens
Part Number 3VA5107-1MH31-0AA0
Series 3VA5
Amperage 7A
Poles 3
Mounting Style Panel Mount
Voltage 240VAC, 480VAC, 600Y/347VAC, 500VDC
Phase 3
AIC Rating 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 65kA @ 500VDC
Electrical ratings
Amperage Range 35-84A
Fit and installation
Terminal Type Lugs
For Use With Siemens P1, P2, P3, P4, P5 Panelboards (requires mounting kit), Switchboards, Motor Control Centers
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, DIN Rail Adapter, Lug Kits
Accessories None (No Lugs Included)
Standards IEC 60947-2, UL 489
Approval ABS, CE, CSA, EAC, IEC, UL, VDE
Temp Rating -25C to 70C
Construction Features Motor Circuit Protector, HACR Rated, Reverse Feed, Current Limiting
