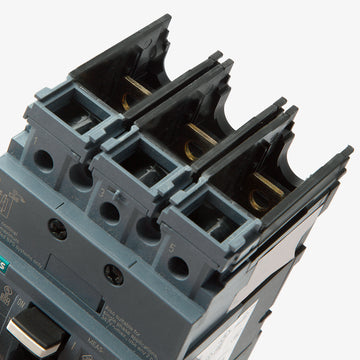

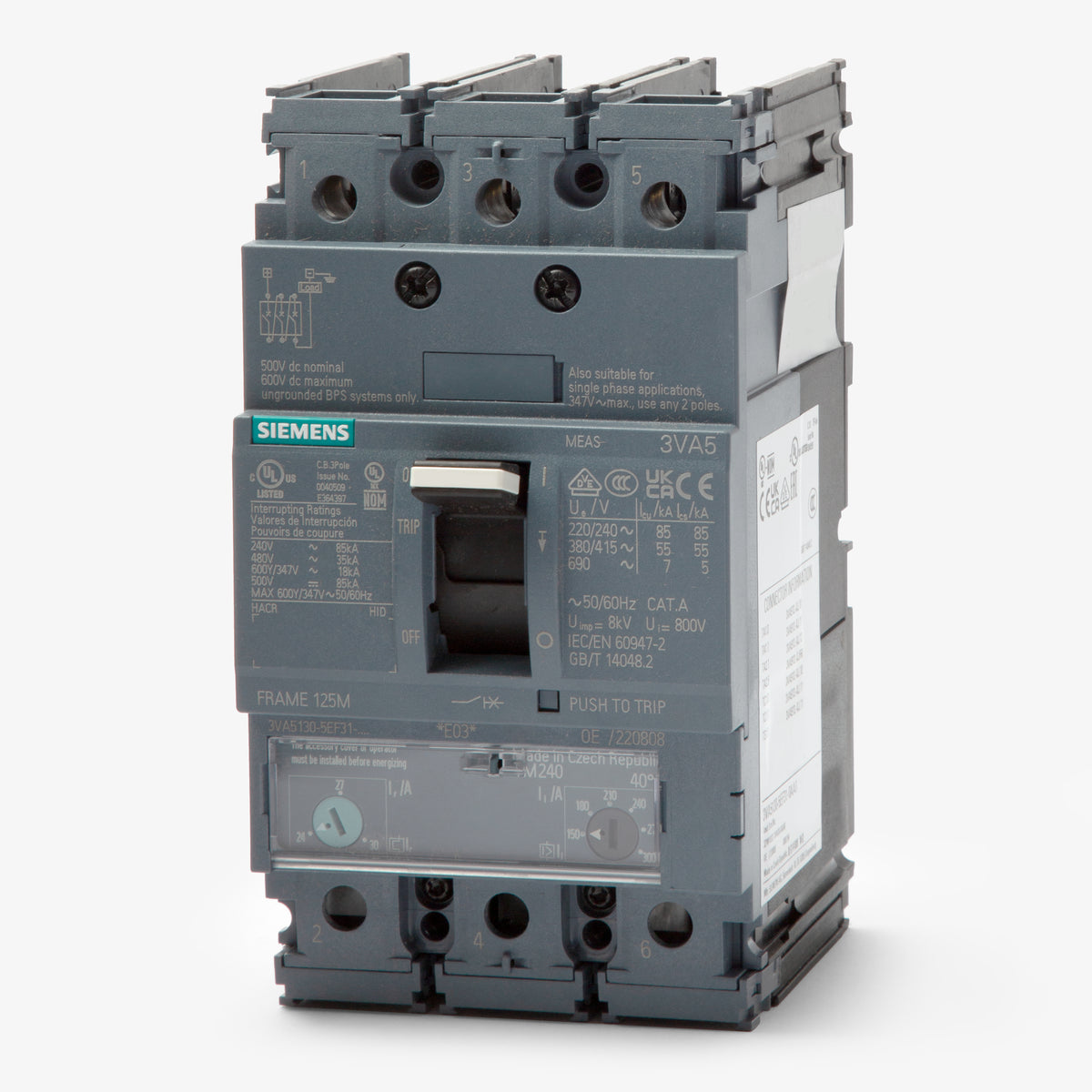

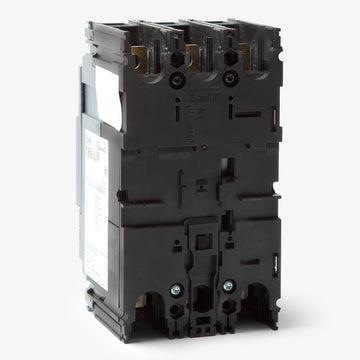

Siemens 3VA5130-6EC31-0AA0 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Siemens
3VA5130-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5130-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5130-6EC31-0AA0 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens 3VA5130-6EC31-0AA0 is a 3-pole, 30A molded case circuit breaker from the SENTRON 3VA5 family. It installs into Siemens 3VA panelboards, switchboards, and legacy P1/P2 panels using an adapter. This unit serves as an exact replacement for the discontinued ED63B030, requiring a mounting kit for older enclosures. Rated at 65kAIC at 480VAC, it features a TM230 thermal-magnetic trip unit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5130-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 25kA @ 600Y/347VAC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards; Siemens P1, P2 Panelboards (with adapter) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, DIN Rail Adapter, Lug Kits |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersCan the 3VA5130-6EC31-0AA0 replace a discontinued ED63B030 breaker?
Yes, this 3VA5 series breaker is the direct replacement for the legacy ED63B030. When retrofitting into older enclosures or legacy P1 and P2 panelboards, a specific mounting adapter kit is required.
Which Siemens panelboards accept the 3VA5130-6EC31-0AA0?
This breaker is natively compatible with modern Siemens 3VA panelboards and switchboards. It can also be installed in legacy Siemens P1 and P2 panelboards by utilizing a compatible mounting adapter.
What is the frame size for the 3VA5130-6EC31-0AA0?
This breaker is built on the Siemens 3VA51 frame, which has a maximum physical capacity of 125A.

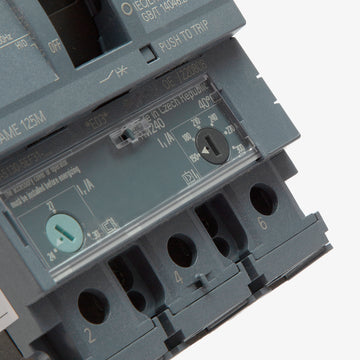

How is the trip unit configured on the 3VA5130-6EC31-0AA0?
It is equipped with a TM230 thermal-magnetic trip unit. The thermal overload protection is fixed at 30A, while the instantaneous short-circuit protection is adjustable to suit specific application requirements.
What breaking capacity class does the 3VA5130-6EC31-0AA0 fall under?
This breaker features a Class H (High) breaking capacity. This classification corresponds to its 65kA interrupting rating at 480VAC and 100kA rating at 240VAC.
