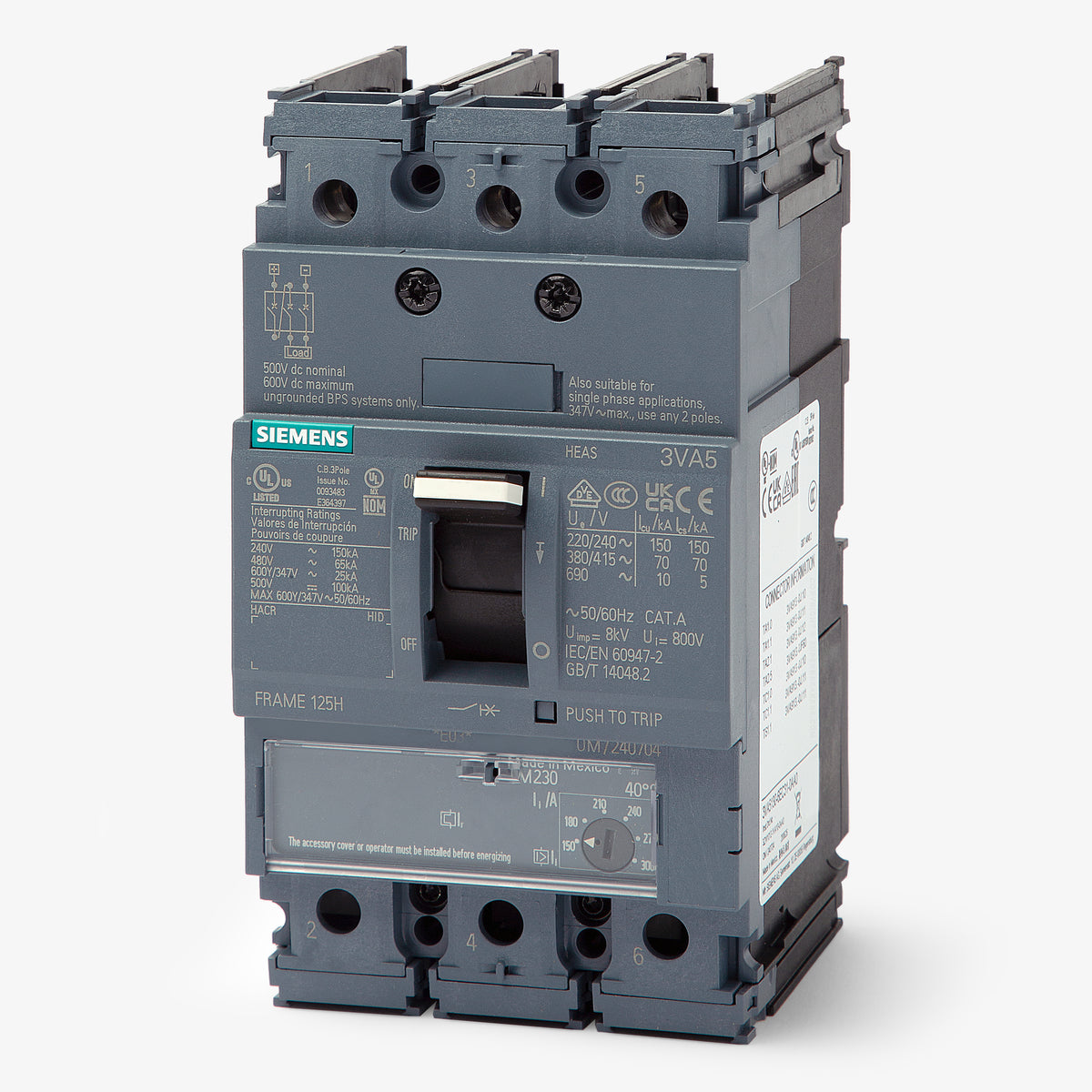

Siemens 3VA5145-6EC31-0AA0 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Panel Mount
Siemens
3VA5145-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5145-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

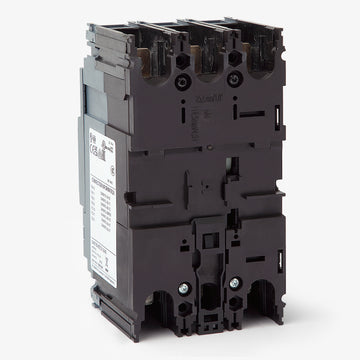

Siemens 3VA5145-6EC31-0AA0 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens 3VA5145-6EC31-0AA0 is a 3-pole molded case circuit breaker from the SENTRON 3VA5 family. This panel mount MCCB installs into Siemens 3VA and P1 panelboards. It serves as a drop-in replacement for the discontinued HED63B045, offering modernized protection in a compact 125A frame. The breaker features a TM230 thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings. It delivers a Class H breaking capacity of 65kA at 480V.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 500VDC |
| Frame Type | 3VA51 |
|---|---|

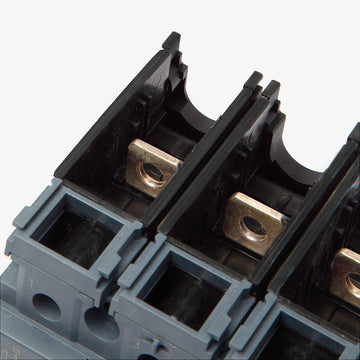

| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, Siemens P1 Panelboards (requires mounting kit) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | None (Nut Keeper Only) |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | ABS, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Class H Breaking Capacity, HID Rated |
Product FAQs
5 answersWhat older Siemens circuit breaker does the 3VA5145-6EC31-0AA0 replace?
This 3VA5 series breaker serves as a modernized replacement for the discontinued Siemens HED63B045, offering updated protection within a compact 125A frame.
What is the breaking capacity class for this circuit breaker?
The 3VA5145-6EC31-0AA0 features a Class H breaking capacity, which corresponds to its 65kA interrupt rating at 480VAC.

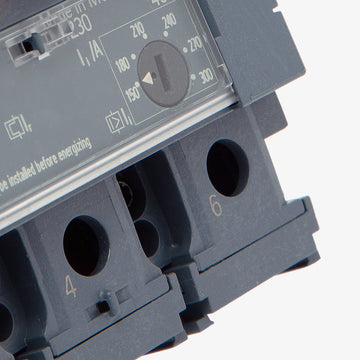

How is the TM230 trip unit configured on this model?
The integrated TM230 thermal-magnetic trip unit provides a fixed thermal setting for overload protection and an adjustable magnetic setting for short-circuit protection.
Is this breaker rated for use with HVAC equipment?
Yes, the 3VA5145-6EC31-0AA0 is HACR rated, meaning it is certified for safe use with heating, air conditioning, and refrigeration systems.
What are the physical dimensions of the 3VA5145-6EC31-0AA0?
This 3-pole breaker measures approximately 5.5 inches in height, 3.0 inches in width, and 3.7 inches in depth.
