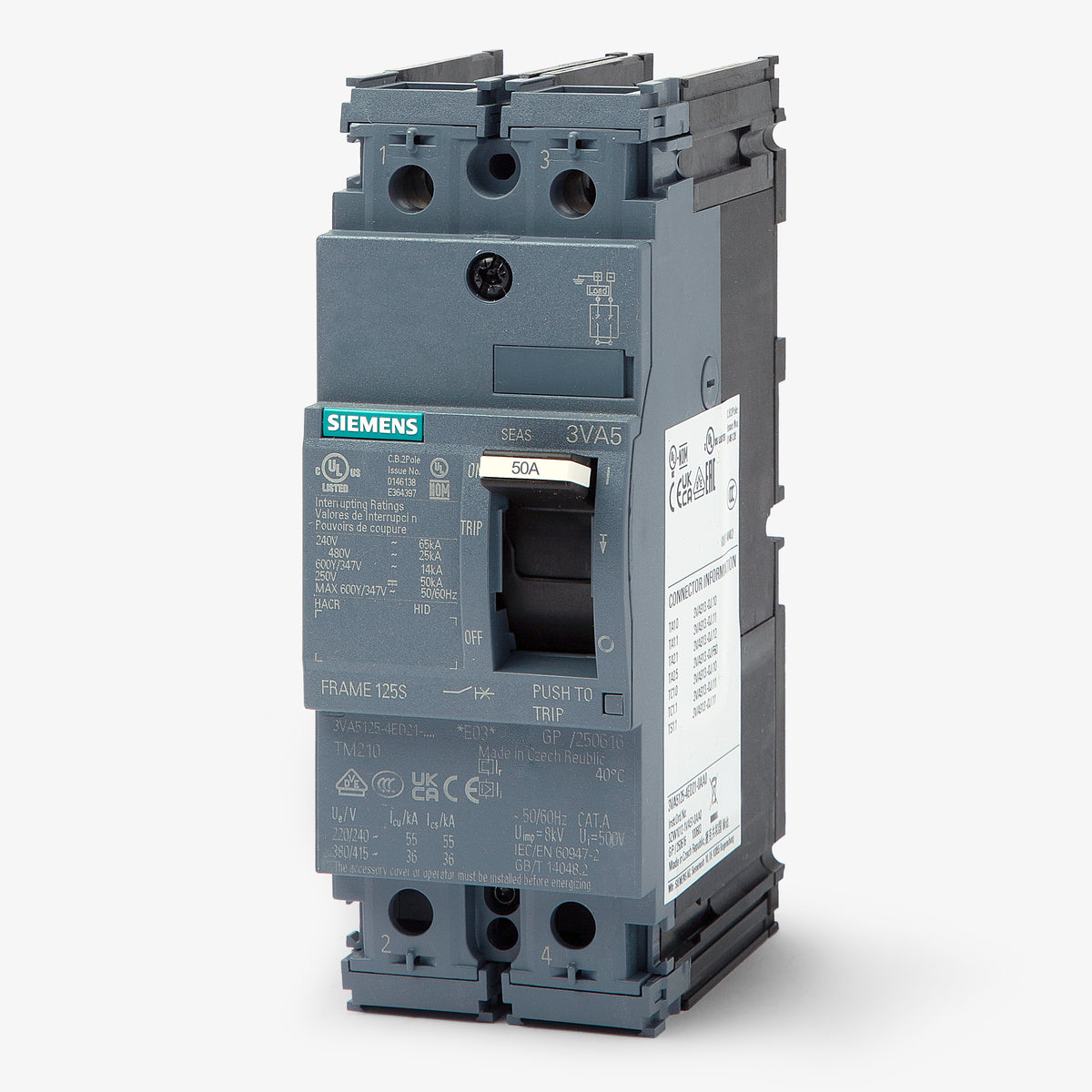

Siemens 3VA5150-4ED21-0AA0 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Panel Mount
Siemens
3VA5150-4ED21-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5150-4ED21-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5150-4ED21-0AA0 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens 3VA5150-4ED21-0AA0 is a 2-pole, 50A molded case circuit breaker from the Sentron 3VA5 frame family. This panel mount unit installs into Siemens 3VA panelboards and switchboards, serving as an exact replacement for the discontinued ED62B050. Rated 25kAIC at 480VAC, it features a TM210 trip unit with fixed long-time and instantaneous (LI) protection. The current-limiting design offers enhanced flexibility.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC |

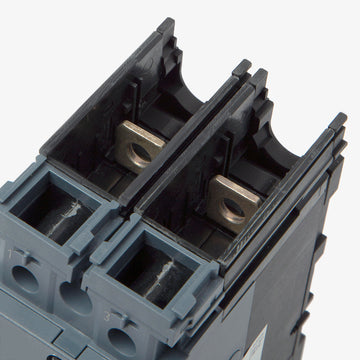

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Lug Kits, DIN Rail Adapter |
|---|---|
| Accessories | None (Standard) |
| Standards | IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
7 answersWhich discontinued Siemens breaker does the 3VA5150-4ED21-0AA0 replace?
This 3VA5 molded case circuit breaker serves as the direct replacement for the discontinued Siemens ED62B050.
What is the specific UL frame size for this circuit breaker?
While part of the broader 3VA frame group, this specific breaker is built on the Siemens 3VA5 UL 125A frame.
Is the 3VA5150-4ED21-0AA0 a current-limiting circuit breaker?
Yes, it features a current-limiting design that helps reduce let-through energy during a fault, providing enhanced protection for downstream electrical components.
What global safety standards does this Siemens breaker meet?
It is certified to both UL 489 and IEC 60947-2 standards, making it suitable for commercial and industrial power distribution in multiple regions.
What does the FTFM designation mean on this breaker's trip unit?
FTFM indicates that the TM210 thermal-magnetic trip unit has Fixed Thermal (overload) and Fixed Magnetic (short-circuit) protection settings, meaning the trip points cannot be adjusted in the field.
Is this breaker suitable for HVAC applications?
Yes, it carries an HACR rating, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can the 3VA5150-4ED21-0AA0 be reverse fed?
Yes, this breaker is reverse feed capable, allowing for flexible installation in panels where the line power enters from the bottom.
