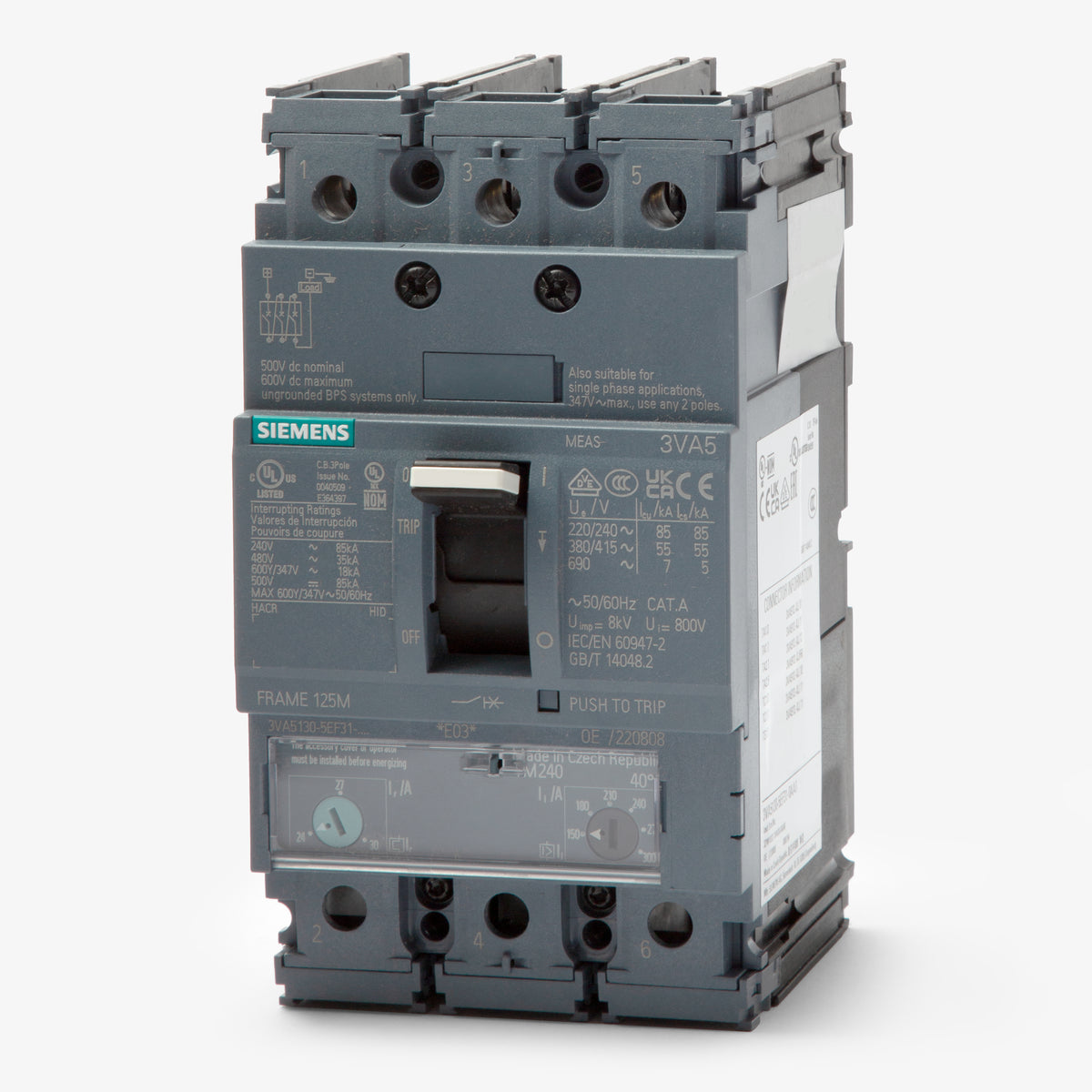

Siemens 3VA5150-6EC31-0AA0 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Siemens
3VA5150-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5150-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5150-6EC31-0AA0 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding electrical systems, this 3-pole MCCB from the 3VA5 family provides high-tier protection. It is equipped with a TM230 FTAM trip unit, combining a fixed thermal overload with an adjustable magnetic response. This panel-mount breaker is compatible with Siemens P1, P2, and P3 panelboards. It provides an exact upgrade path for legacy HED43B050 breakers. Load and line lugs are sold separately. Classified with a 65kAIC rating at 480V, it features a trip-free mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5150-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Lugs, Handle Tie, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | None (Lugs sold separately) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
6 answersWhich legacy Siemens breaker does the 3VA5150-6EC31-0AA0 replace?
This 3VA51 frame breaker provides a direct upgrade path for legacy ED-frame breakers, specifically replacing the HED43B050. Both share the same 50A, 3-pole, and 65kA at 480V ratings.
What is the maximum frame rating for the 3VA5150-6EC31-0AA0?
This breaker is built on the Siemens 3VA51 frame, which has a maximum continuous current capacity of 125A.
What type of trip unit is equipped on this breaker?

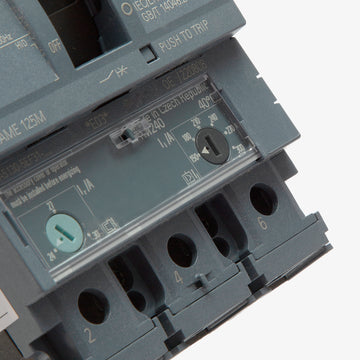

It features a TM230 thermal-magnetic trip unit. This provides a fixed thermal overload (Ir) and an adjustable magnetic instantaneous response (Ii) to fine-tune short-circuit protection.
What breaking capacity class does this 3VA5 breaker fall under?
The 3VA5150-6EC31-0AA0 is designated as a Class H (High) breaking capacity breaker, corresponding to its 65kA interrupting rating at 480V AC.
Can internal accessories be added to the 3VA5150-6EC31-0AA0?
Yes, the Siemens 3VA5 series features a modular design that accepts field-installable internal accessories, including shunt trips and auxiliary switches, in the accessory pockets.
Does the 3VA5150-6EC31-0AA0 include ground fault protection?
No, the integrated TM230 trip unit provides long-time and instantaneous (LI) protection against overloads and short circuits, but it does not feature integrated equipment ground fault protection.
