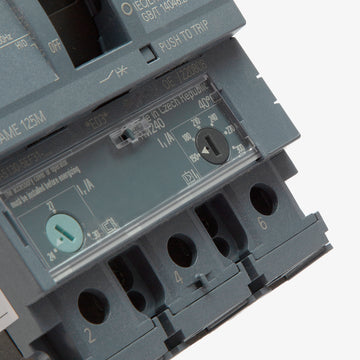

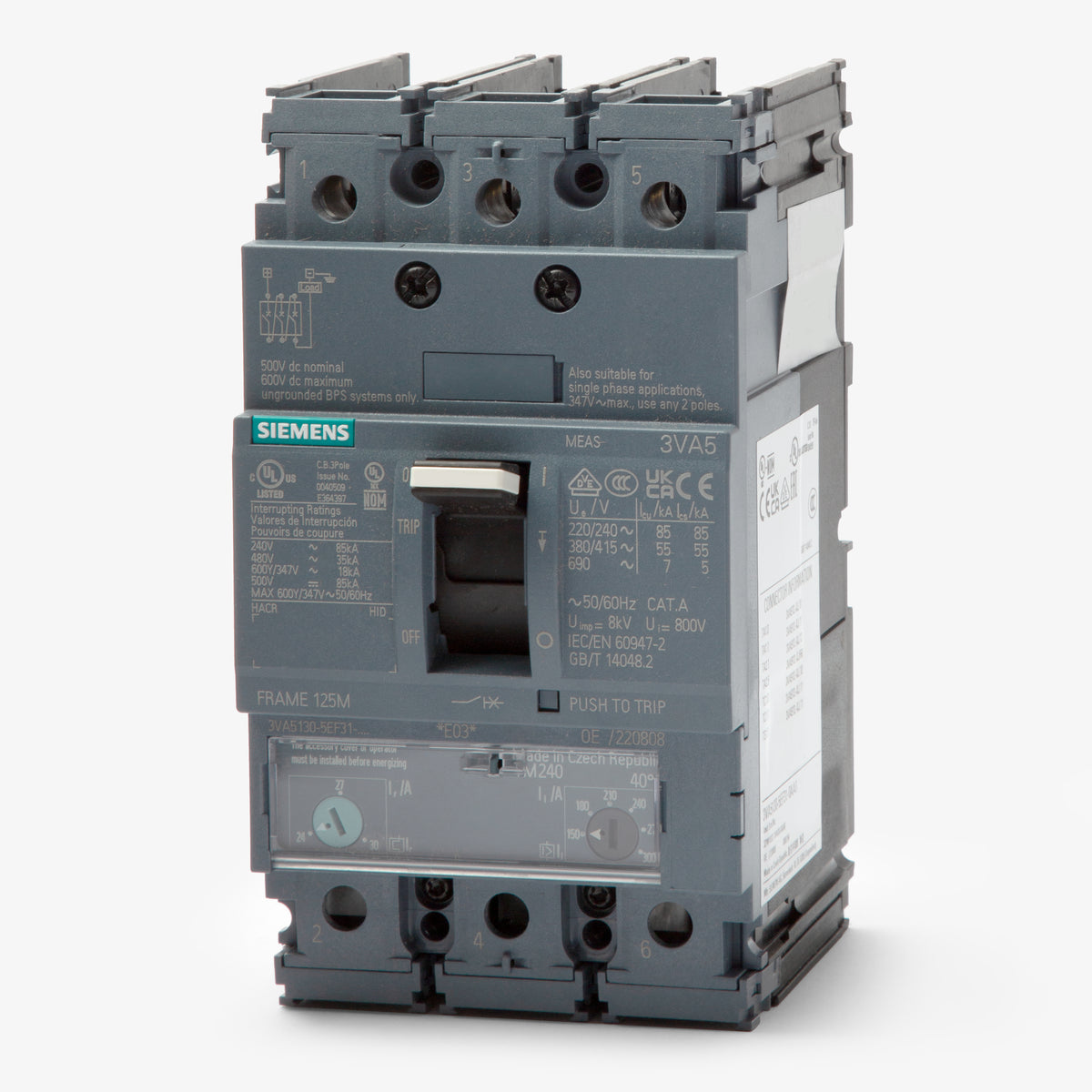

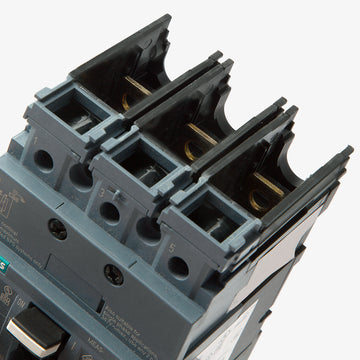

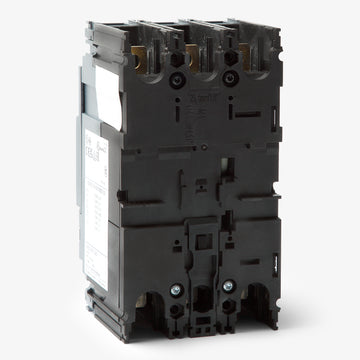

Siemens 3VA5160-6EC31-0AA0 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Siemens
3VA5160-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5160-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5160-6EC31-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, the Siemens 3VA5160-6EC31-0AA0 is a 3-pole, 60A molded case circuit breaker. It provides robust long-time and instantaneous (LI) protection. This panel mount breaker installs into Siemens 3VA and P1 panelboards, serving as a direct replacement for legacy HHED63B060 and HED43B060 models. Rated for 65 kAIC at 480V, it features a TM230 trip unit with fixed thermal and adjustable magnetic settings, ensuring high-level fault clearing.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5160-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Siemens P1 Panelboards (with adapter), Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | None (Nut Keeper Plate) |
| Standards | IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens 3VA5160-6EC31-0AA0?
This 3-pole breaker is designed for direct installation in Siemens 3VA panelboards and switchboards. It can also be mounted in Siemens P1 panelboards when paired with the correct adapter kit.
What frame size does the 3VA5160-6EC31-0AA0 belong to?
This unit is part of the Siemens 3VA51 frame family, which has a maximum frame rating of 125A. It serves as a modern upgrade for legacy 60A ED-frame breakers, such as the HHED63B060.
What does the "Fixed Thermal, Adjustable Magnetic" trip adjustability mean for this breaker?
The thermal overload protection is fixed at the 60A rating. The magnetic short-circuit protection is adjustable, allowing electricians to fine-tune the instantaneous trip point to accommodate specific inrush currents without nuisance tripping.
Is this Siemens 3VA5 breaker suitable for DC voltage systems?
Yes, in addition to its AC ratings, this breaker is rated for use in DC applications up to 500VDC, providing up to 100kA of interrupting capacity.
What do the LI functions indicate on this Siemens breaker?
LI stands for Long-Time and Instantaneous trip functions. The Long-Time function handles sustained overloads, while the Instantaneous function protects against sudden short circuits.
