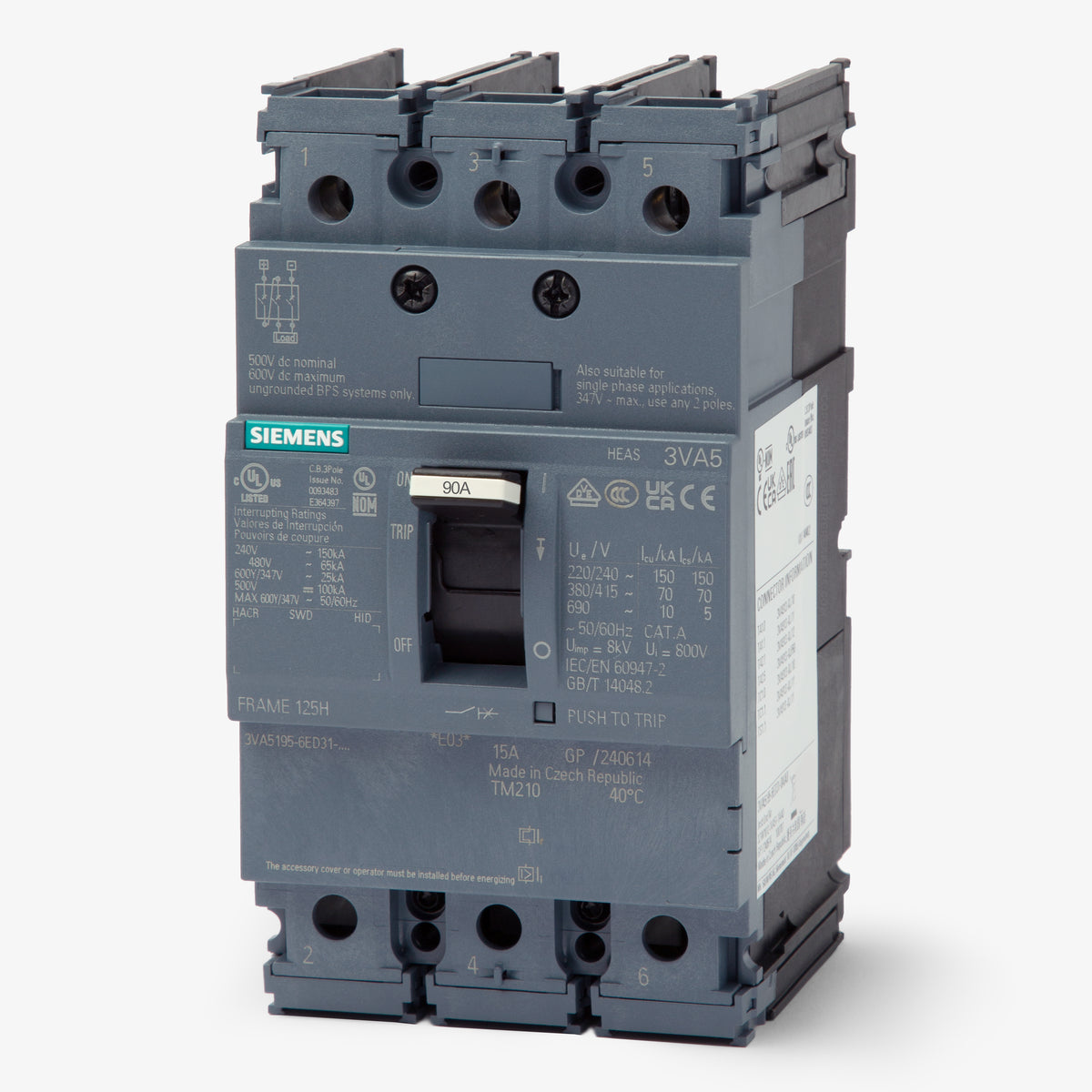

Siemens 3VA5190-6ED31-0AA0 Molded Case Circuit Breaker

This breaker is designed for use in Siemens 3VA panelboards and switchboards. It mounts directly to the panel chassis using a feed-thru connection.

Yes, it is rated for up to 500VDC with an interrupting capacity of 100kA. When installing in DC systems, ensure proper pole wiring as specified by Siemens guidelines for thermal magnetic trip units.

No, this specific model features a fixed thermal and fixed magnetic trip unit. If you require adjustable trip settings, you will need to look at the Siemens 3VA6 series with electronic trip units.

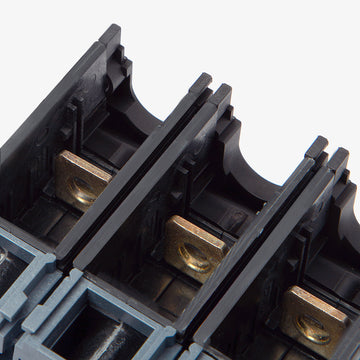

It utilizes standard lug terminals for feed-thru wiring. Verify the wire gauge compatibility and torque specifications in the Siemens 3VA instruction manual before terminating the conductors.

It provides a 65kA interrupting rating at 480VAC and 480Y/277VAC. This high interrupting capacity makes it suitable for commercial and industrial switchboards requiring robust fault protection.

It belongs to the Siemens 3VA51 frame size, which covers ratings up to 125A. This is part of the broader SENTRON 3VA molded case circuit breaker family.

It uses a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. For applications requiring electronic trip units, you must select a breaker from the Siemens 3VA6 series.

Yes, the Siemens 3VA5 series features a modular design that accepts internal accessories like auxiliary switches, alarm contacts, and shunt trips. These are installed in the accessory pockets under the front cover.
