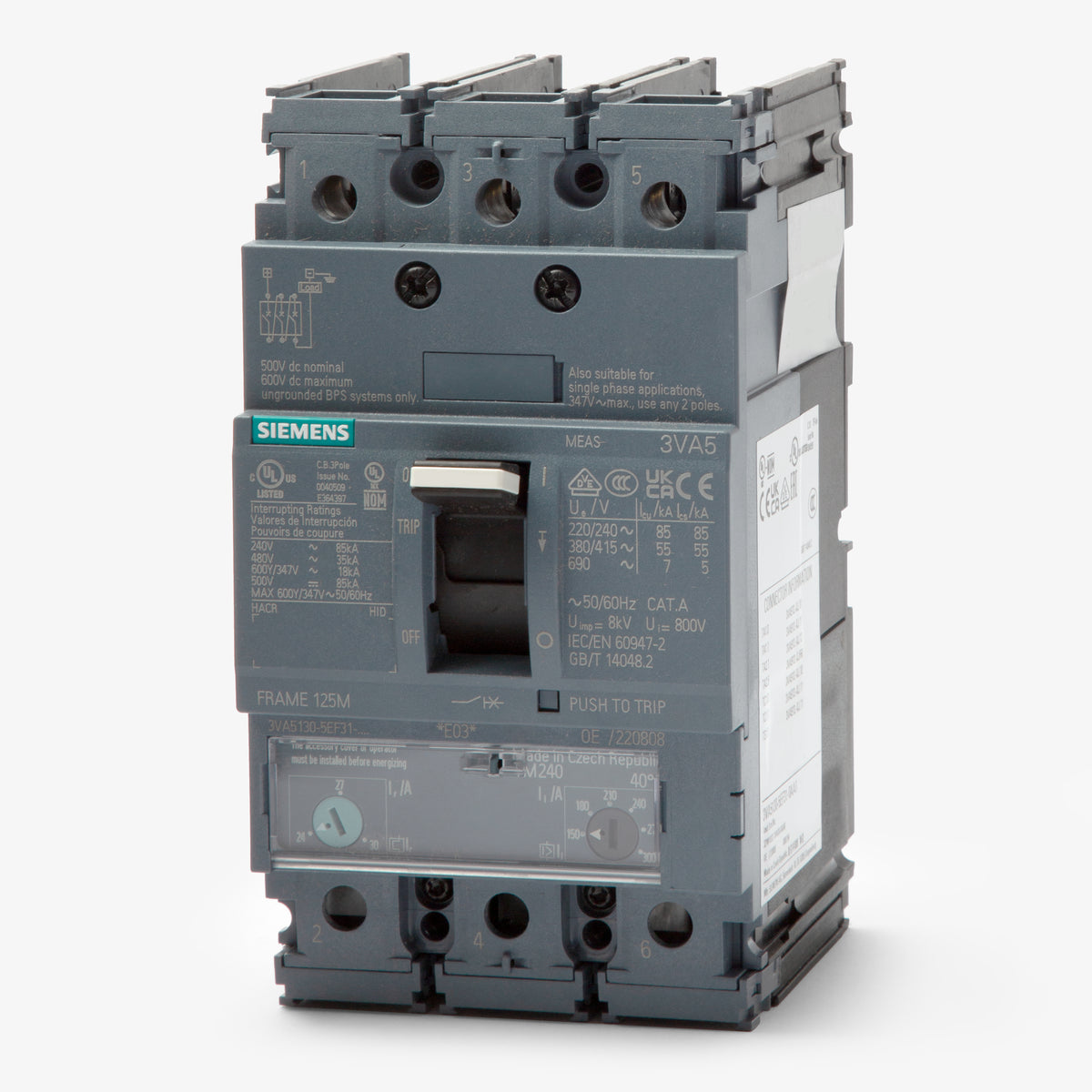

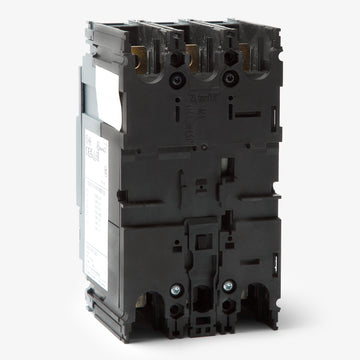

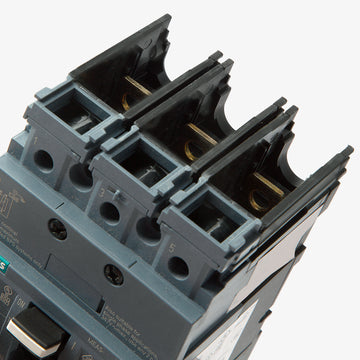

Siemens 3VA5195-6EC31-0AA0 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Siemens
3VA5195-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5195-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5195-6EC31-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens 3VA5195-6EC31-0AA0 is a 3-pole MCCB from the SENTRON 3VA5 family delivering reliable LI protection. This panel-mount breaker installs into Siemens P1, P2, and P3 panelboards using a mounting adapter. It also serves as a modern replacement for discontinued ED63B015 units. Rated 65kA at 480V, this Class H breaker features a TM230 trip unit with adjustable magnetic settings. It is HACR and HID rated for versatile performance.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards, P1/P2/P3 Panelboards (with adapter) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Lug Kits, DIN Rail Adapter |
|---|---|
| Accessories | Nut Keeper Plate |
| Standards | IEC 60947-2, UL 489, HACR, HID |
| Approval | ABS, CE, CSA, cULus, DNV, EAC, GL, Lloyd's, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, HID Rated, Reverse Feed |
Product FAQs
6 answersWhat frame size is the 3VA5195-6EC31-0AA0?
This breaker is part of the Siemens 3VA51 frame group, which has a maximum frame rating of 125A.
Can the 3VA5195-6EC31-0AA0 replace older Siemens ED-frame breakers?
Yes, this 3VA5 series breaker serves as a modern replacement for the discontinued ED63B015 circuit breaker.
Which panelboards are compatible with this circuit breaker?
It is designed for direct installation in Siemens 3VA panelboards and switchboards. It can also be installed in legacy P1, P2, and P3 panelboards by using a specific mounting adapter.
How is the trip unit configured on this breaker?

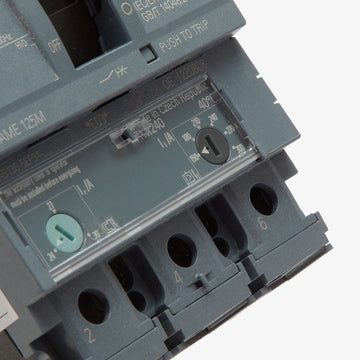

It features a TM230 thermal-magnetic trip unit with fixed thermal (long-time) protection and adjustable magnetic (instantaneous) settings.
Is this circuit breaker rated for direct current applications?
Yes, it is rated for use in DC systems up to 500VDC, providing a 100kA interrupting rating at that voltage.
Can this breaker be reverse fed?
Yes, Siemens 3VA5 thermal-magnetic molded case circuit breakers are UL listed for reverse feed applications.
