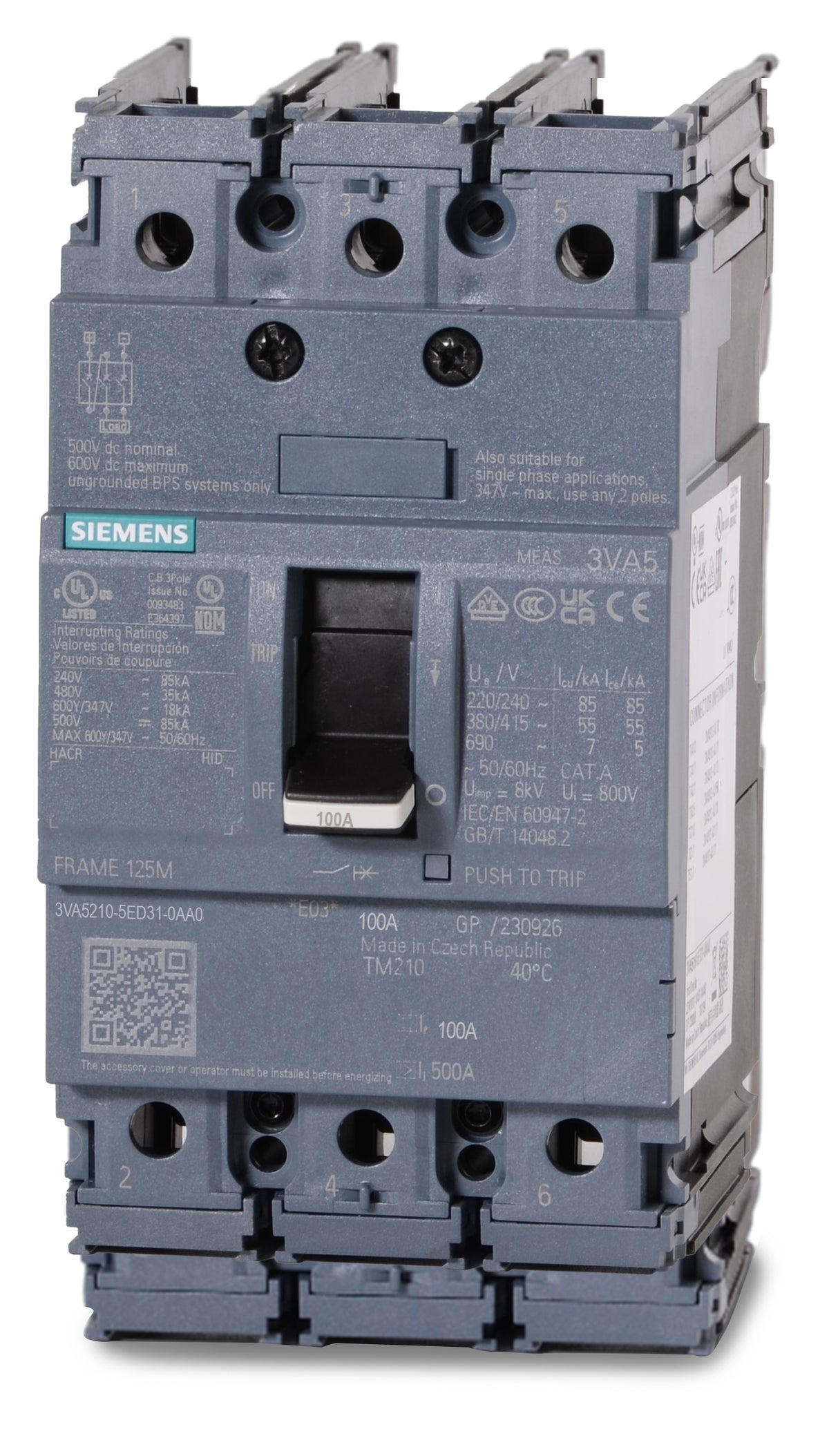

Siemens 3VA5210-5ED31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA5210-5ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5210-5ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5210-5ED31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial and marine environments, the Siemens 3VA5210-5ED31-0AA0 is a 3-pole, 100A molded case circuit breaker. It provides reliable line protection within the versatile 3VA5 250A frame architecture. This panel mount breaker integrates seamlessly into Siemens 3VA panelboards, switchboards, and motor control centers. It is also the designated replacement for discontinued FD63B100 breakers. The unit features a TM210 fixed thermal-magnetic trip and a 35 kAIC rating at 480V.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 50kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None (Standard 0AA0 suffix indicates no auxiliary switches or releases) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
8 answersWhat equipment is the 3VA5210-5ED31-0AA0 compatible with?
This breaker is designed for integration into Siemens 3VA panelboards, switchboards, and motor control centers.
What older Siemens breaker does the 3VA5210-5ED31-0AA0 replace?
This 3VA5 breaker is the designated modernization replacement for the discontinued Siemens FD63B100 molded case circuit breaker.
Can the Siemens 3VA5210-5ED31-0AA0 be reverse fed?
Yes, this thermal-magnetic circuit breaker supports reverse feed applications, allowing for flexible installation orientations.
What is the difference between the Siemens 3VA5 and 3VA6 series?
The 3VA5 series features thermal-magnetic trip units, while the 3VA6 series utilizes electronic trip units (ETU) for more advanced protection and communication capabilities.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (overload) and Instantaneous (short-circuit) protection.
Is the 3VA5210-5ED31-0AA0 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What frame size is the 3VA5210-5ED31-0AA0?
This breaker is built on the Siemens 3VA52 frame, which has a maximum capacity of 250A.
Are the trip settings adjustable on the 3VA5210-5ED31-0AA0?
No, this specific model features a TM210 trip unit with fixed thermal and fixed magnetic settings.
