Siemens 3VA5210-7EC31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA5210-7EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5210-7EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

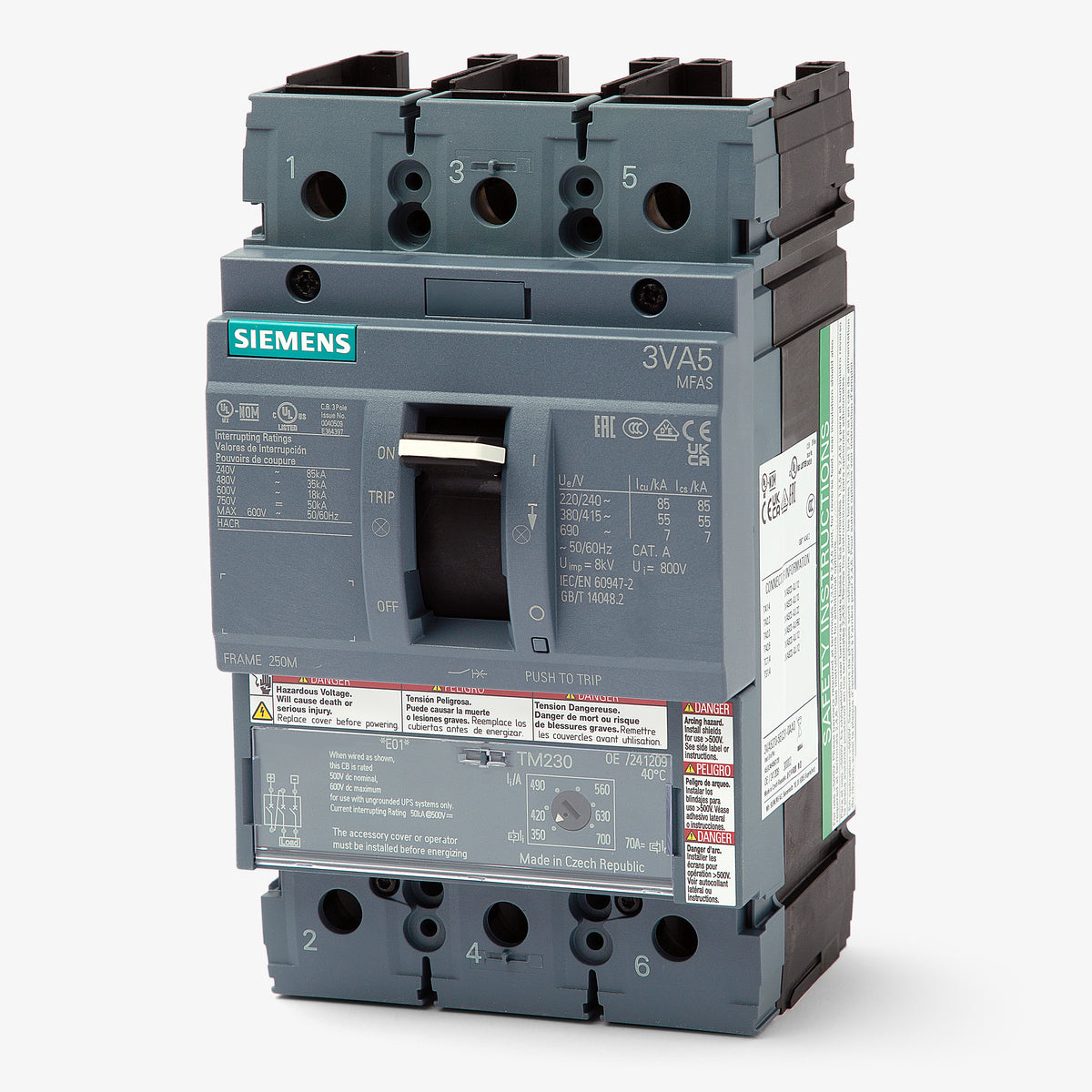

Siemens 3VA5210-7EC31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable power distribution for commercial and industrial facilities, the 3VA5210-7EC31-0AA0 operates within the Siemens 3VA5 frame. This 3-pole molded case circuit breaker provides robust system protection with a TM230 thermal-magnetic trip unit, featuring fixed thermal and adjustable magnetic settings. It mounts into Siemens 3VA panelboards and switchboards, serving as a replacement for legacy CED63B100 breakers. The unit is rated for 100kAIC at 480V and 35kAIC at 600V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5210-7EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480Y/277VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC, 100kA @ 250VDC, 100kA @ 500VDC, 100kA @ 750VDC |

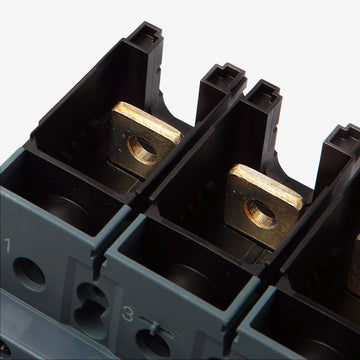

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489 |
| Approval | ABS, CCC, CE, CSA, EAC, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat enclosures or panelboards accept this breaker?
This breaker is designed for direct installation in Siemens 3VA panelboards and switchboards. It can also be used to retrofit older Siemens panels when paired with the correct adapter kit.
Can the 3VA5210-7EC31-0AA0 be reverse fed?
Yes, Siemens 3VA5 thermal-magnetic molded case circuit breakers are UL listed for reverse feed applications, allowing for flexible installation orientation.
Is this Siemens 3VA5 breaker HACR rated?
Yes, this circuit breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Which legacy Siemens circuit breaker does this model replace?
This 100A, 100kAIC-rated 3VA52 frame breaker serves as a modern replacement for the discontinued legacy Siemens HHFD63B100. A specific mounting kit is required when retrofitting this into older panelboards.

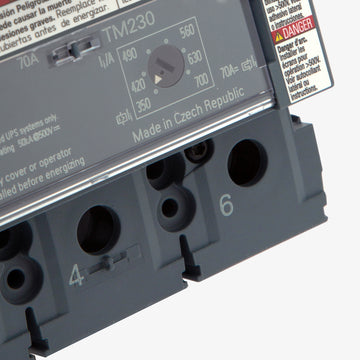

How is the trip unit configured on this breaker?
This model features a thermal-magnetic trip unit with a fixed thermal threshold for long-time overload protection and an adjustable magnetic setting for instantaneous short-circuit protection.
What frame size does the 3VA5210-7EC31-0AA0 utilize?
This breaker is built on the Siemens 3VA52 frame. While this specific unit is factory-set for 100A, the 3VA52 frame itself supports a maximum capacity of 250A.
