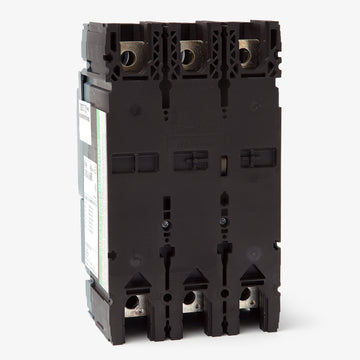

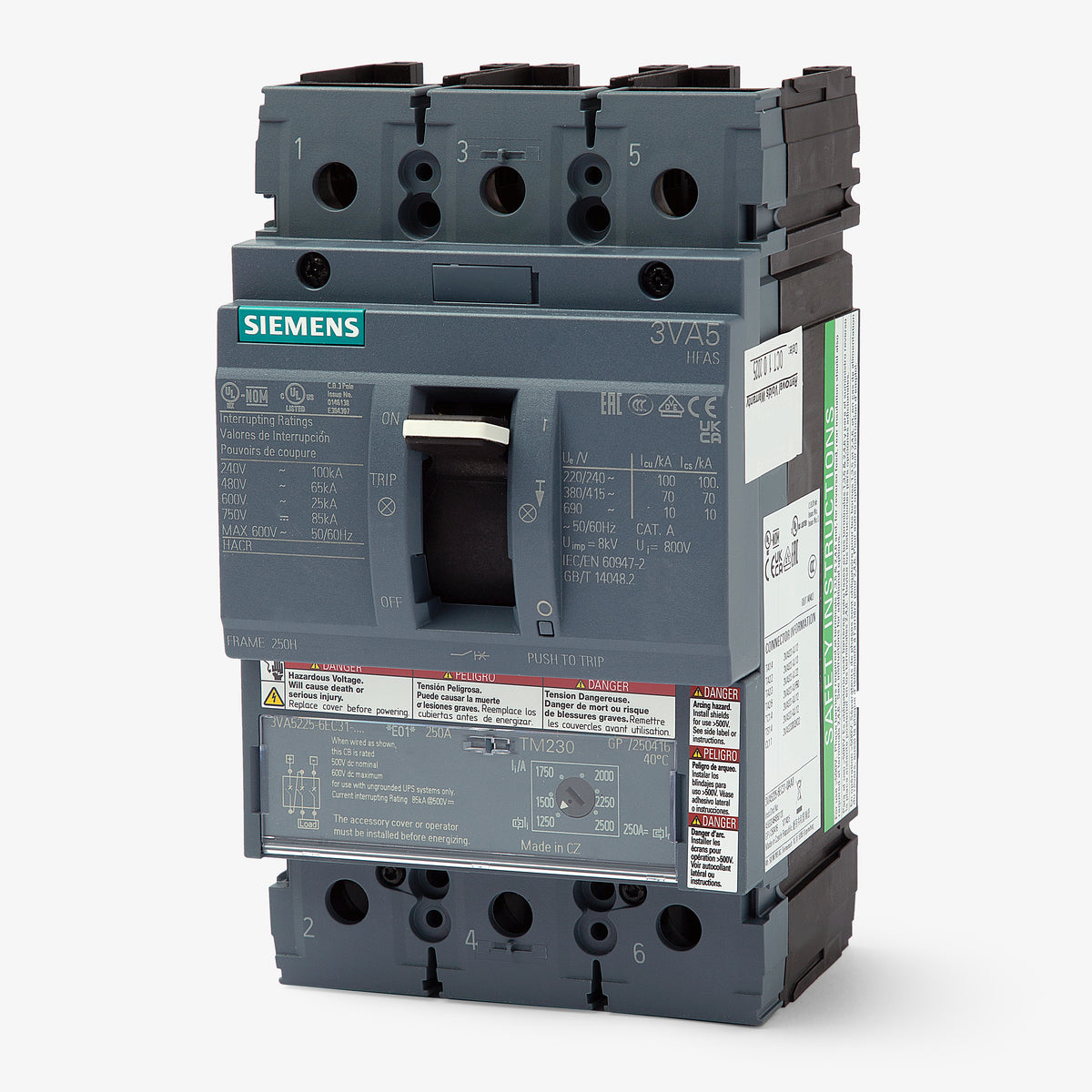

Siemens 3VA5217-6EC31-0AA0 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Panel Mount
Siemens
3VA5217-6EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5217-6EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5217-6EC31-0AA0 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for high-fault environments, the 3VA5217-6EC31-0AA0 is a 3-pole MCCB. It provides robust power distribution in Siemens 3VA panelboards and switchboards. This breaker replaces legacy HFD63B175 and HFXD63B175 units. It requires a mounting kit for P2 panelboards and includes a nut keeper kit for secure connections. Rated 65kAIC at 480VAC, it delivers H-Class current-limiting performance. The unit utilizes a fixed thermal and adjustable magnetic trip unit for LI protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5217-6EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 750VDC |
| Frame Type | 3VA52 |
|---|---|

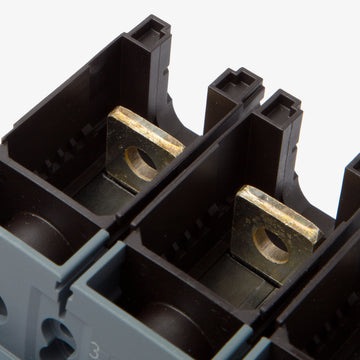

| Terminal Type | Lugs |
| For Use With | Siemens 3VA Panelboards, Siemens P2 Panelboards (requires mounting kit), Siemens Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lugs, Nut Keeper Kit |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhich legacy Siemens breakers can the 3VA5217-6EC31-0AA0 replace?
This 3VA5 series breaker is the direct modern replacement for legacy Siemens HFD63B175 and HFXD63B175 molded case circuit breakers.
What panelboards are compatible with the 3VA5217-6EC31-0AA0?
This breaker is designed for seamless integration into Siemens 3VA panelboards and switchboards. It can also be installed in legacy Siemens P2 panelboards when using the required mounting kit.
What does the FTAM designation mean for the 3VA5217-6EC31-0AA0 trip unit?

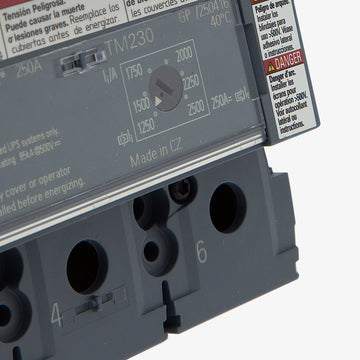

FTAM stands for Fixed Thermal, Adjustable Magnetic. The TM230 trip unit provides a fixed 175A threshold for long-time overload protection, while allowing you to adjust the instantaneous short-circuit magnetic trip setting to suit your specific application.
What frame size is the 3VA5217-6EC31-0AA0?
While configured for a 175A continuous current, this unit is built on the Siemens 3VA52 frame, which has a maximum capacity of 250A.
How is the 3VA5217-6EC31-0AA0 mounted in an enclosure?
It is primarily designed as a feed-thru, panel-mount breaker for switchboards and panelboards. However, it can also be adapted for DIN-rail mounting using the correct Siemens accessory bracket.
Can the 3VA5217-6EC31-0AA0 be used in 100 percent rated applications?
No, this specific catalog number is standard rated, meaning continuous loads should not exceed 80 percent of its 175A capacity. Applications requiring a 100 percent continuous rating will need a different variant.
Does the 3VA5217-6EC31-0AA0 include ground fault protection?
No, this breaker is equipped with a TM230 thermal-magnetic trip unit that provides long-time (L) and instantaneous (I) protection only. It does not include ground fault (G) or short-time (S) protection functions.
