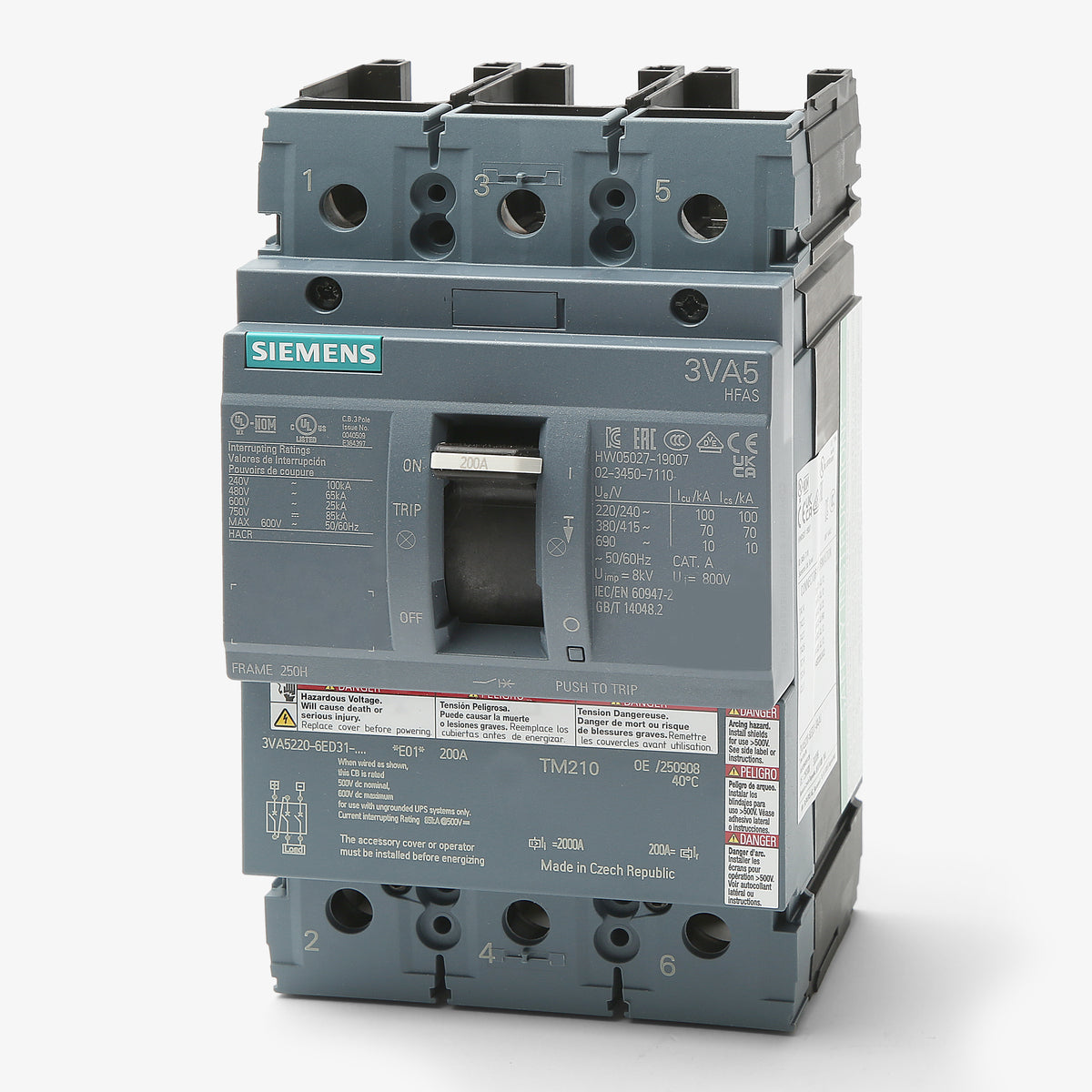

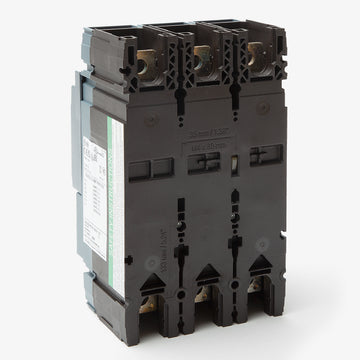

Siemens 3VA5220-6ED31-0AA0 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Siemens
3VA5220-6ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5220-6ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5220-6ED31-0AA0 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial and marine environments, this 200A three-pole molded case circuit breaker utilizes fixed thermal and magnetic trip elements. The current-limiting design achieves a 65kAIC rating at 480VAC, ensuring robust fault clearing for critical infrastructure. It mounts into Siemens P1, P2, and P3 panelboards or SB switchboards using standard lug connections. Facility managers can utilize this component to replace discontinued HFD63B200 breakers in existing enclosures.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5220-6ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 250VDC, 85kA @ 500VDC, 85kA @ 750VDC |

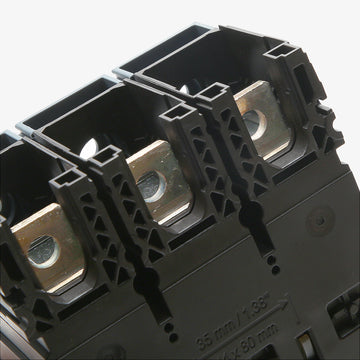

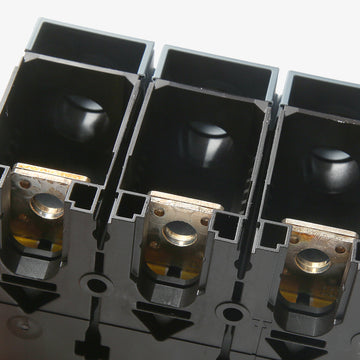

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
8 answersWhat panelboards accept the Siemens 3VA5220-6ED31-0AA0 circuit breaker?
This 200A breaker is compatible with Siemens P1, P2, and P3 panelboards, SB switchboards, and motor control centers. Proper adapter hardware or strap kits are required for panelboard integration.
Can the 3VA5220-6ED31-0AA0 replace a legacy Siemens FD-frame breaker?
Yes, this 3VA52 frame breaker is the modern replacement for legacy 200A FD-frame and FXD-frame breakers, such as the FXD63B200 or HFXD63B200. When upgrading an existing panelboard, you will need a 3VA-specific replacement strap kit.
What is the physical frame size of the 3VA5220-6ED31-0AA0?
This circuit breaker is built on the Siemens 3VA52 frame, which has a maximum physical capacity of 250A. This specific catalog number is factory-calibrated for a 200A continuous current rating.
What are the direct current (DC) capabilities of this breaker?
It is rated for DC applications up to 750VDC. It provides a standardized high DC interrupting rating of 85kA across 250VDC, 500VDC, and 750VDC systems.
Are the trip elements adjustable on the 3VA5220-6ED31-0AA0?
No. This breaker is equipped with a TM210 thermal magnetic trip unit featuring fixed thermal (overload) and fixed magnetic (instantaneous short-circuit) protection.
Does the -0AA0 catalog suffix indicate the presence of auxiliary accessories?
No. The -0AA0 suffix designates a standard breaker configured without factory-installed internal accessories such as auxiliary switches or shunt trips.
Can I add auxiliary switches or shunt trips to this breaker in the field?
Yes. The 3VA5 series features modular accessory pockets, allowing you to easily field-install internal accessories like shunt trips, undervoltage releases, and alarm switches.
Is the 3VA5220-6ED31-0AA0 approved for reverse feeding?
Yes, all Siemens 3VA5 thermal magnetic molded case circuit breakers are UL listed for reverse feed applications.
