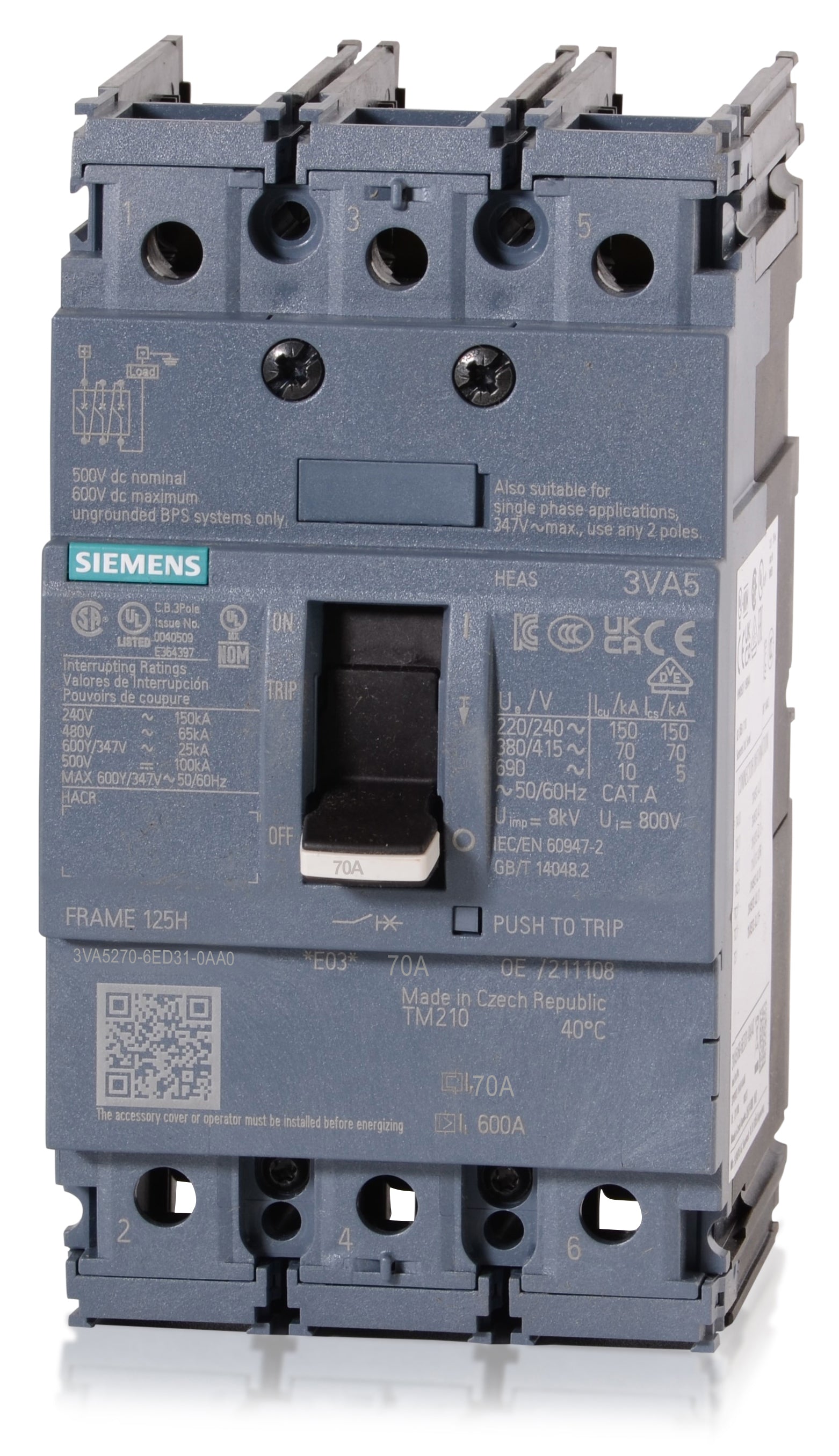

Siemens 3VA5270-6ED31-0AA0 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Panel Mount
Siemens
3VA5270-6ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5270-6ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5270-6ED31-0AA0 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for reliable commercial and industrial power distribution, this 70-amp Sentron 3VA5 molded case circuit breaker provides essential line protection. It mounts into Siemens panelboards and switchboards, offering a seamless upgrade path for legacy HFD63B070 units. The breaker features a TM210 fixed thermal and fixed magnetic trip unit for straightforward, tamper-proof operation. It carries a Class H interrupting rating of 65 kAIC at 480VAC to handle demanding fault currents.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5270-6ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, DIN Rail Adapter |
|---|---|
| Accessories | Lugs Not Included |
| Standards | IEC 60947-2, UL 489 |
| Approval | ABS, CCC, CE, CSA, EAC, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | Class H Breaking Capacity, HACR Rated, Current Limiting, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat frame size does the 3VA5270-6ED31-0AA0 belong to?
This 70A circuit breaker is built on the Siemens 3VA52 frame, which is a 250A maximum frame size within the SENTRON 3VA molded case circuit breaker family.
What type of trip unit is installed in the 3VA5270-6ED31-0AA0?
It features a TM210 thermal-magnetic trip unit with fixed thermal (overload) and fixed magnetic (short-circuit) protection settings.
What is the instantaneous magnetic trip setting for this 70A breaker?
The TM210 trip unit in this breaker has a fixed short-circuit protection setting of 10 times the continuous current rating, which equals 700A.
What equipment is the 3VA5270-6ED31-0AA0 designed to be installed in?
This panel-mount breaker is designed for use within compatible Siemens panelboards and switchboards.
What interrupting class does the 6 in the 3VA5270-6ED31-0AA0 catalog number represent?
The 6 indicates it is a Class H breaking capacity circuit breaker, providing a 65kA interrupting rating at 480VAC.
Can the Siemens 3VA5270-6ED31-0AA0 be reverse fed?
Yes, all Siemens 3VA5 thermal-magnetic molded case circuit breakers are UL listed for reverse feed applications.
Can the 3VA5270-6ED31-0AA0 be used to upgrade older Siemens breakers?
Yes, the 3VA5 series offers a seamless upgrade path for legacy Siemens breakers of similar frame sizes, such as the HFD63B070, in commercial and industrial power distribution systems.
Does this breaker support field-installable internal accessories?
Yes, the 3VA5 series supports a range of field-installable internal accessories, including shunt trips, auxiliary switches, and alarm switches, which mount directly into the accessory pockets of the 3-pole breaker.
