Siemens 3VA5280-6ED31-0AA0 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Siemens
3VA5280-6ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5280-6ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

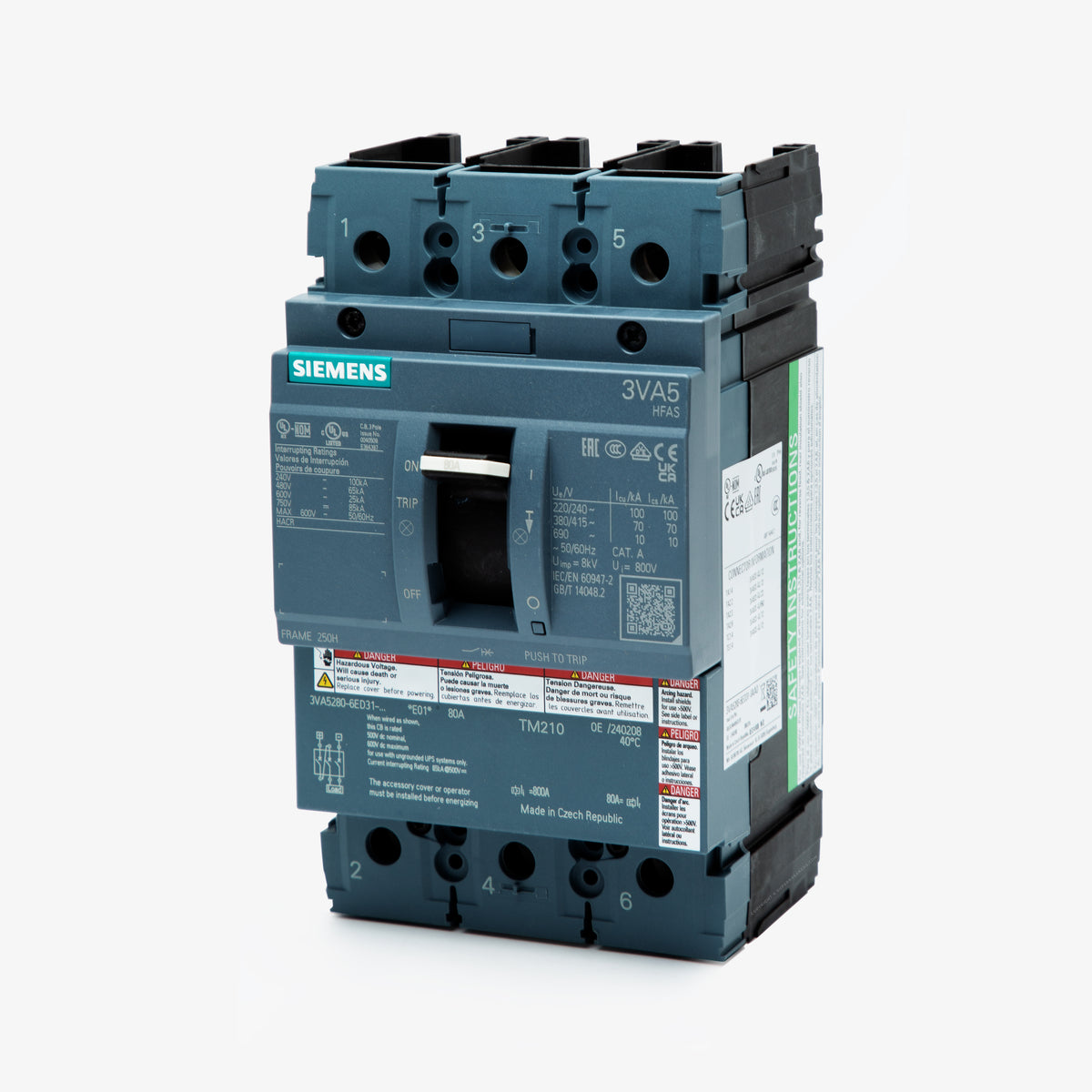

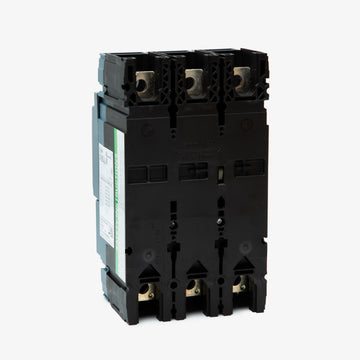

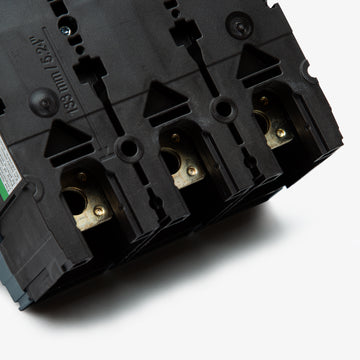

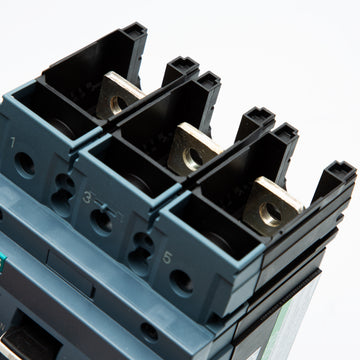

Siemens 3VA5280-6ED31-0AA0 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, this 80-amp molded case circuit breaker delivers essential long-time and instantaneous (LI) protection. It utilizes a completely fixed thermal-magnetic trip unit, ensuring consistent performance without the need for field adjustments. This component installs into Siemens P2 and P3 panelboards or switchboards. It acts as a seamless upgrade path for discontinued HFD63B080 breakers. The current-limiting design is HACR rated and allows reverse feeding.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5280-6ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 750VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 85kA @ 750VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3 Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock, Padlock Attachment, Busbar System, Lug Kits |
|---|---|
| Accessories | Nut Keeper |
| Standards | IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, EAC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhat frame size does this Siemens circuit breaker use?
The 3VA5280-6ED31-0AA0 is built on the Siemens 3VA5 250A frame size.
Is this model rated for 100-percent continuous duty?
No, this is a standard 80-percent rated molded case circuit breaker.
What specific trip unit is installed in the 3VA5280-6ED31-0AA0?
It is equipped with a Siemens TM210 thermal-magnetic trip unit. Both the thermal (long-time) and magnetic (instantaneous) protection settings are fixed and cannot be adjusted.
Can I add field-installable accessories to this breaker?
Yes, the 3VA5 breaker design supports field-installable internal accessories such as auxiliary switches, shunt trips, and undervoltage releases.
How does operating temperature affect the continuous current rating?
This breaker maintains its full 80A continuous rating up to 50 degrees Celsius (122 degrees Fahrenheit). At 55 degrees Celsius, the rating derates slightly to 77.6A.
