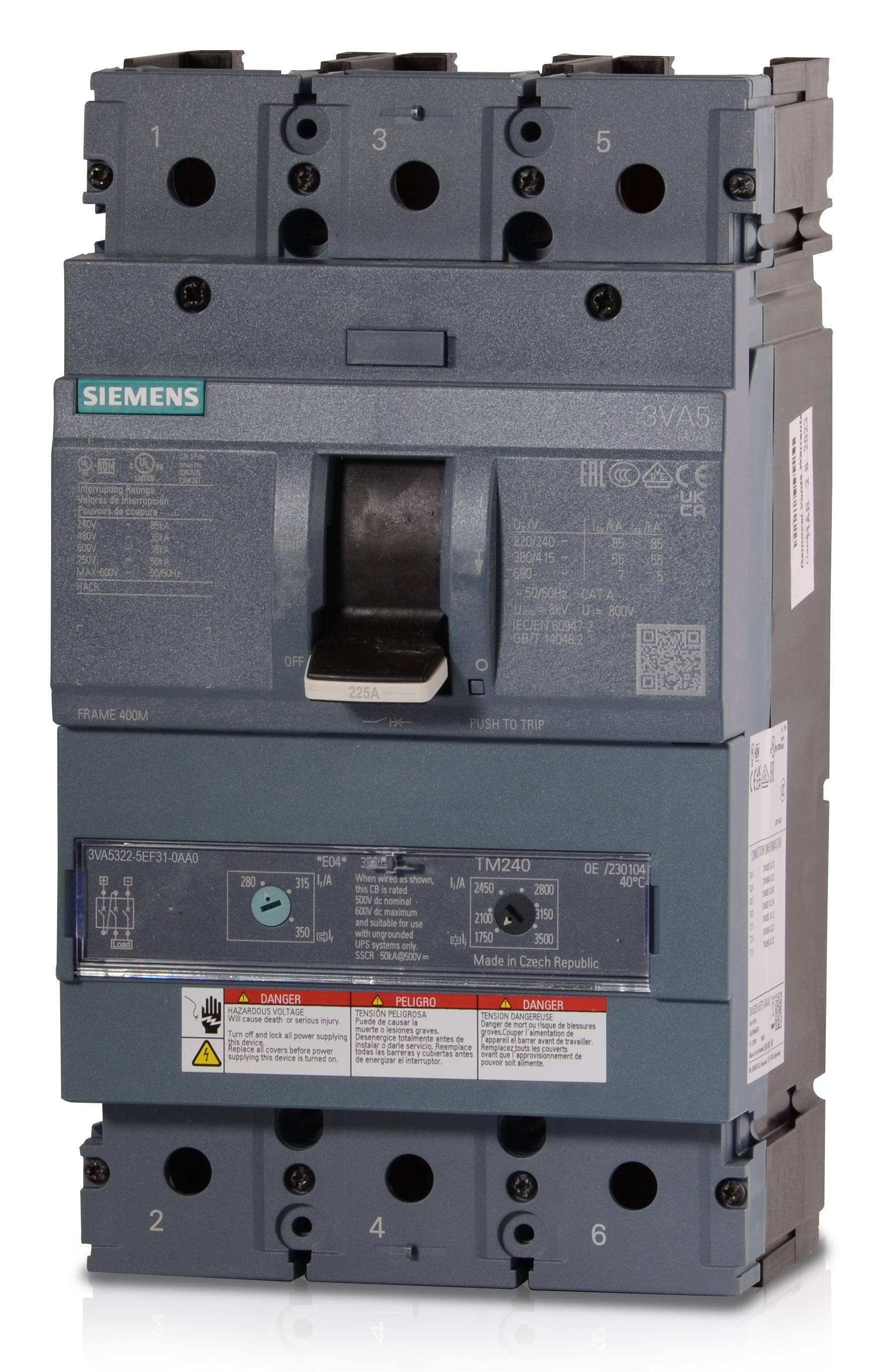

Siemens 3VA5322-5EF31-0AA0 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Siemens
3VA5322-5EF31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5322-5EF31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5322-5EF31-0AA0 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Providing advanced circuit protection, this 225A molded case circuit breaker features a TM240 trip unit. It allows for adjustable thermal and magnetic settings, giving precise control over the protection profile. Designed for integration into Siemens P4 and P5 panelboards, this breaker also serves as a replacement for legacy JD Frame JXD63B225 models, simplifying facility upgrades. With an M-Class interrupting rating of 35 kAIC at 480V, it ensures robust fault clearing and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5322-5EF31-0AA0 |
| Series | 3VA5 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 50kA @ 500VDC |
| Amperage Range | 158-225A |
|---|
| Frame Type | 3VA53 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | None (Without connection) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens 3VA5322-5EF31-0AA0 circuit breaker?
This breaker is designed for integration into Siemens P4 and P5 panelboards, as well as compatible Siemens switchboards.
Can the 3VA5322-5EF31-0AA0 be used to replace older Siemens breakers?
Yes, this 3VA5 series breaker can serve as a replacement for legacy JD Frame models, such as the JXD63B225, when upgrading facility panels.
What type of trip unit is equipped on this breaker?
It features a TM240 thermal magnetic trip unit with both adjustable long time (thermal) and adjustable instantaneous (magnetic) trip settings for precise protection coordination.
What is the frame size of this 225A circuit breaker?
It is built on the Siemens 3VA53 frame, which has a maximum capacity of 400A, though this specific unit is factory set for a 225A continuous current rating.
What is the breaking capacity class of the 3VA5322-5EF31-0AA0?
This breaker features a Class M medium breaking capacity, delivering a 35kA interrupting rating at 480V and 18kA at 600V.
How is the 3VA5322-5EF31-0AA0 breaker mounted in a panel?
It is a bolt on, panel mount circuit breaker designed for fixed installation in low voltage distribution systems.
Is the Siemens 3VA5322-5EF31-0AA0 HACR rated?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
