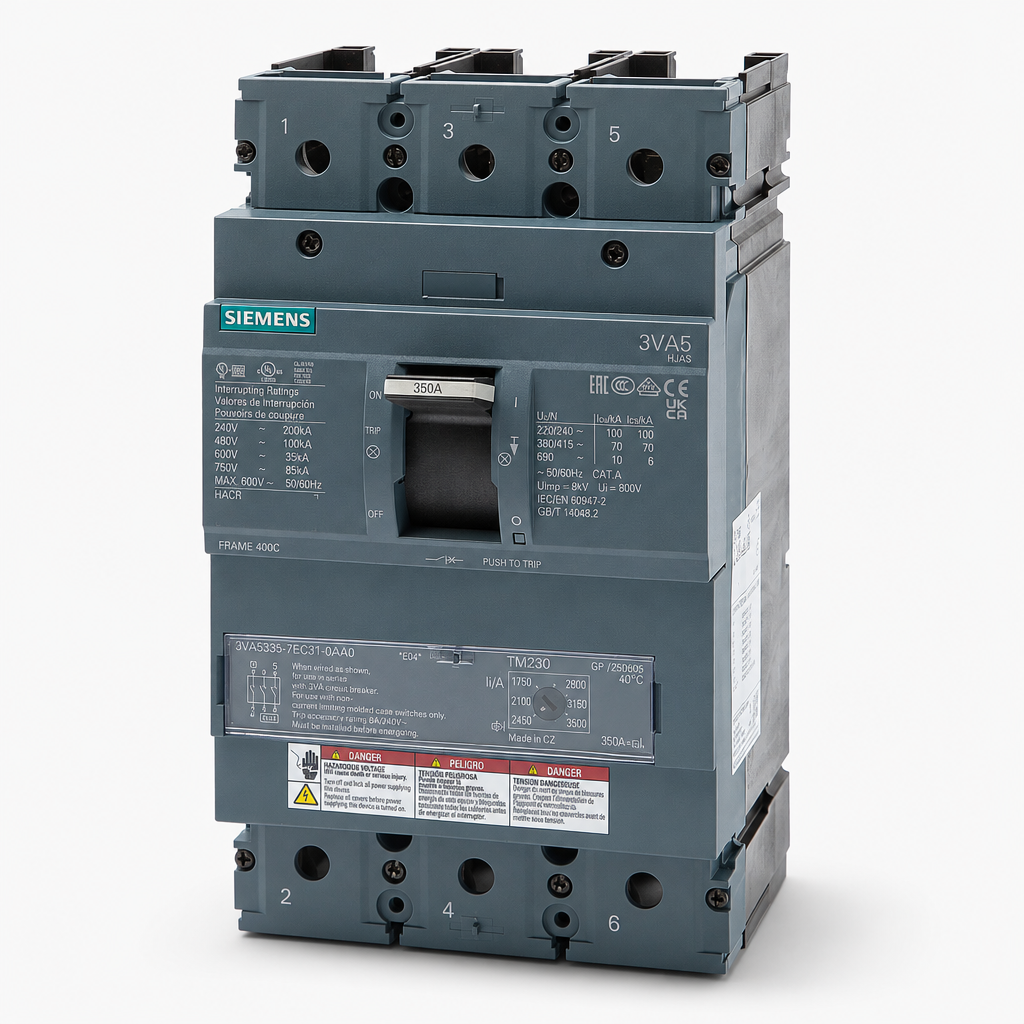

Siemens 3VA5335-7EC31-0AA0 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Panel Mount
Siemens
3VA5335-7EC31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5335-7EC31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5335-7EC31-0AA0 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced Sentron 3VA5 series, this 350A molded case circuit breaker provides reliable long-time and instantaneous (LI) protection for demanding industrial applications. The unit features a TM230 trip unit with fixed thermal and adjustable magnetic settings. Designed to mount into Siemens 3VA panelboards and switchboards, it serves as a modern, high-performance substitute for discontinued CJD63B350 breakers. With a Class C 100kAIC rating at 480V, it ensures superior fault clearing.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5335-7EC31-0AA0 |
| Series | 3VA5 |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480Y/277VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 1750-3500A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens 3VA Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, cULus, EAC, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
5 answersWhat type of trip unit is installed in the 3VA5335-7EC31-0AA0?
This breaker is equipped with a Siemens TM230 thermal-magnetic trip unit. It provides fixed long-time thermal protection (Ir) and an adjustable instantaneous magnetic trip (Ii).
Can I adjust the continuous amperage on this circuit breaker?
No, the thermal overload protection (Ir) is fixed at the factory rating of 350A. You can only adjust the instantaneous magnetic trip (Ii) setting to coordinate with your short-circuit protection requirements.
What is the magnetic trip range for this breaker?
The adjustable instantaneous magnetic trip (Ii) on the TM230 trip unit can be set from 5 to 10 times the continuous current rating. For this 350A model, that provides a short-circuit pickup range between 1750A and 3500A.
Is the 3VA5335-7EC31-0AA0 suitable for reverse feed applications?
Yes. Siemens 3VA5 thermal-magnetic circuit breakers feature non-interchangeable trip units, which makes them UL listed and compliant for reverse feed applications.
What is the maximum frame capacity of the 3VA5335-7EC31-0AA0?
While this specific breaker is calibrated for a continuous current of 350A, it is built on the Siemens 3VA53 frame, which has a maximum physical frame rating of 400A.
