Siemens 3VA6110-0HN31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Quantity

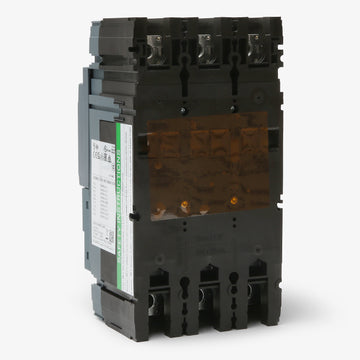

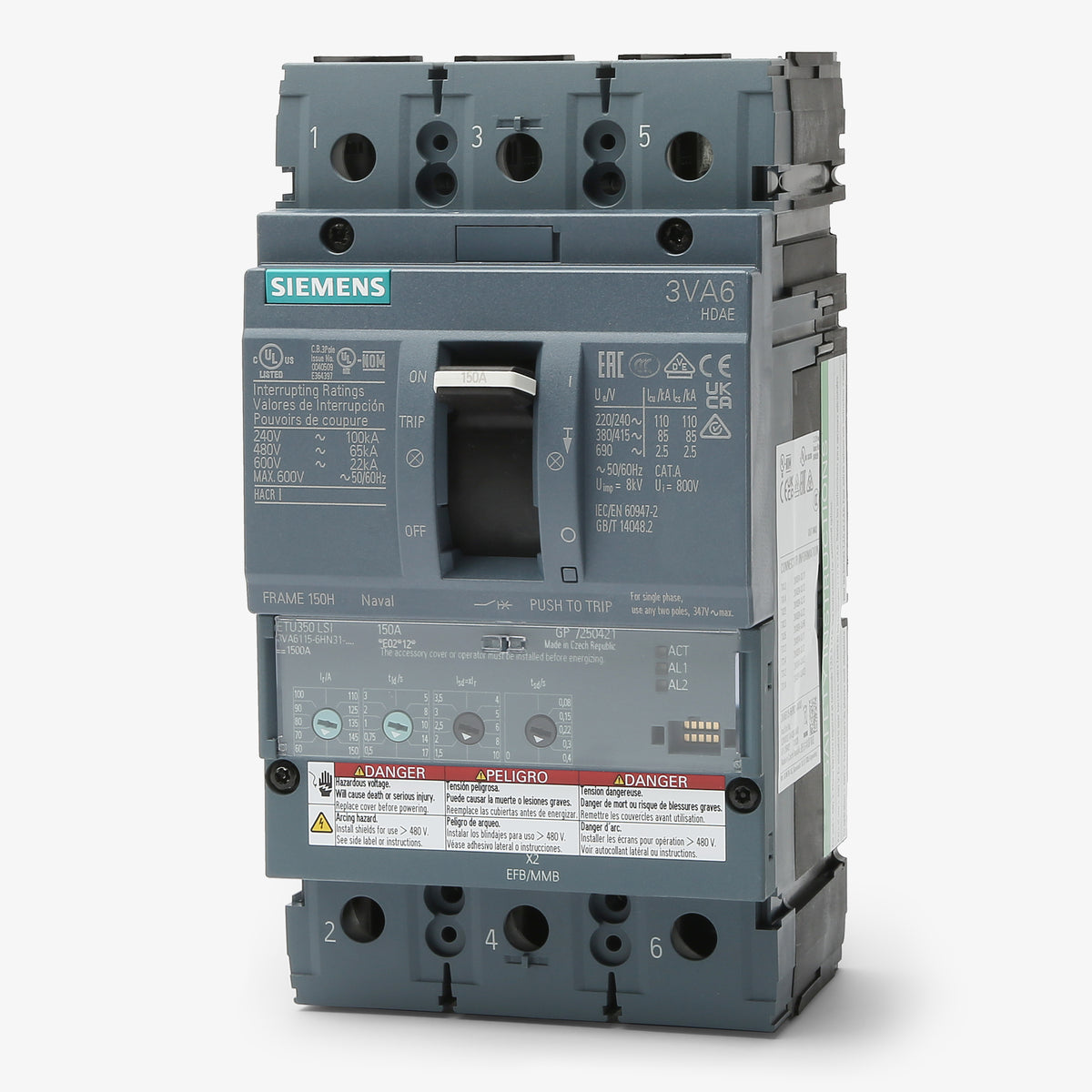

Siemens 3VA6110-0HN31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for demanding electrical systems, the Siemens 3VA6110-0HN31-0AA0 is a 100A, 3-pole electronic trip breaker equipped with an ETU350 LSI unit. This microprocessor-based technology allows for precise adjustment of long-time, short-time, and instantaneous trip functions. Designed to install into Siemens P2, P3, P4, and P5 panelboards as well as switchboards, it offers exceptional flexibility. The breaker features a 200kA interrupt rating at 480V and is fully HACR rated for motor control.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Amperage Range | 40-100A |
|---|

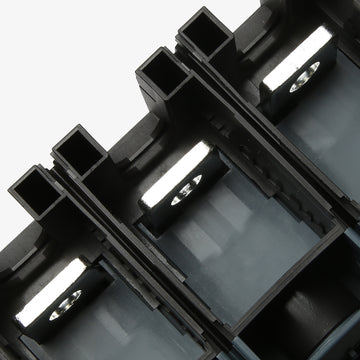

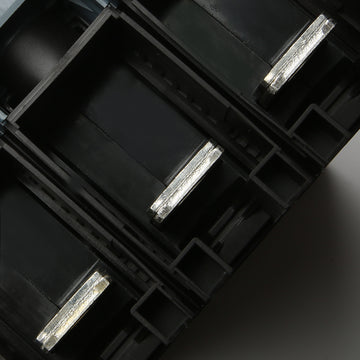

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Communication Module, Padlock Attachment |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity, Reverse Feed |
Product FAQs
5 answersWhat frame size is the Siemens 3VA6110-0HN31-0AA0 built on?
This 100A circuit breaker utilizes the Siemens 3VA6 150A frame. It is designed for integration into Siemens P2, P3, P4, and P5 panelboards, switchboards, and motor control centers.
What type of trip unit does the 3VA6110-0HN31-0AA0 use?
It is equipped with an ETU350 electronic trip unit. This microprocessor-based unit provides adjustable LSI (Long-Time, Short-Time, and Instantaneous) protection for precise overcurrent coordination.
Can the 3VA6110-0HN31-0AA0 be reverse fed?
Yes, this solid-state molded case circuit breaker is suitable for reverse-feed applications.
Is this Siemens 3VA6 breaker HACR rated?
Yes, it is fully HACR rated, making it suitable for use in heating, air conditioning, and refrigeration motor control circuits.
What is the breaking capacity class of this circuit breaker?
The 3VA6110-0HN31-0AA0 features a Class E breaking capacity, delivering a high interrupting rating of 200kA at 480VAC and 100kA at 600VAC.
