Siemens 3VA6115-0HN31-0AA0 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Quantity

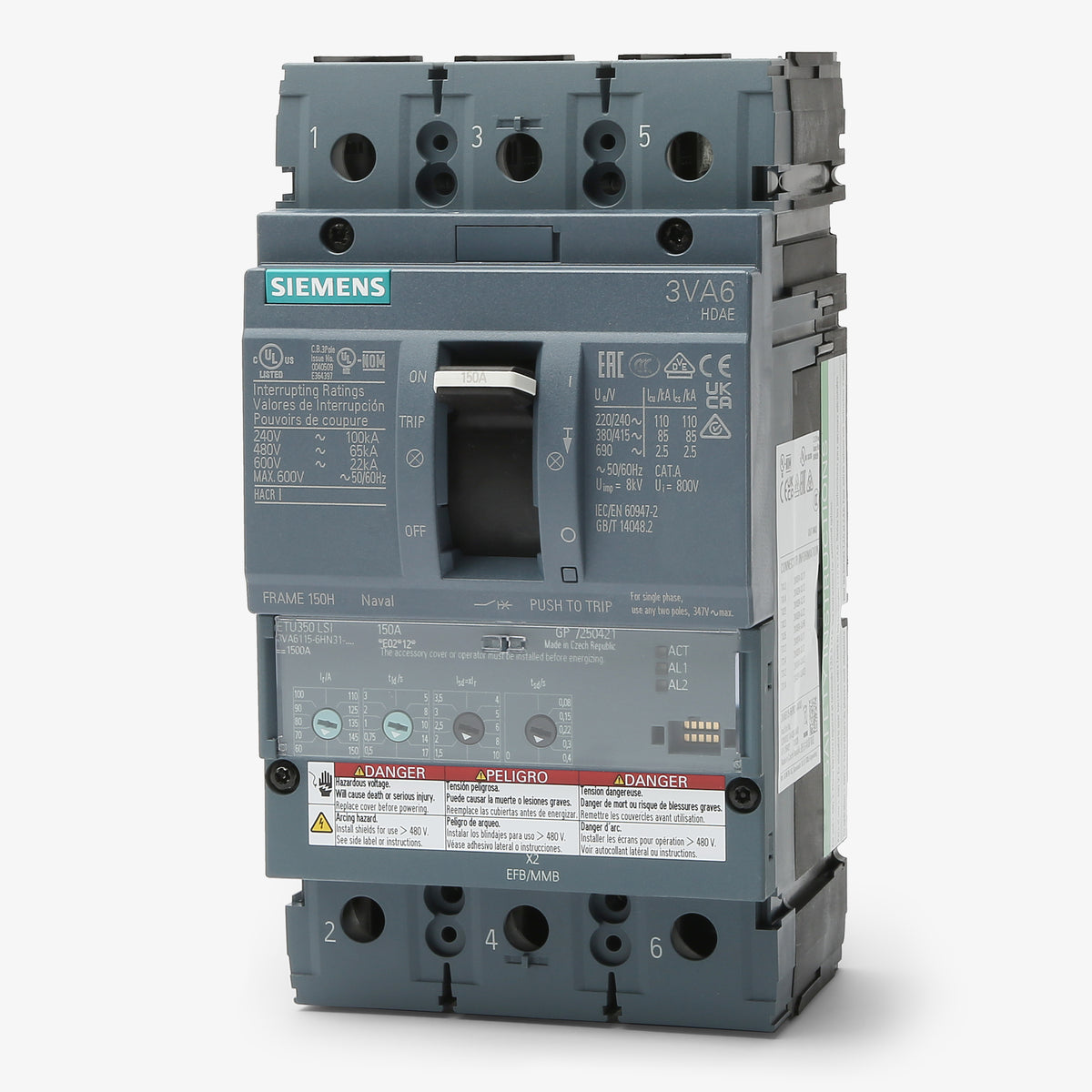

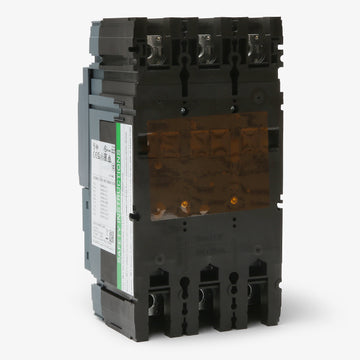

Siemens 3VA6115-0HN31-0AA0 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the Sentron 3VA6 series, the Siemens 3VA6115-0HN31-0AA0 is a 3-pole, 150-amp molded case circuit breaker designed for commercial and industrial power distribution. It installs into Siemens P1, P2, P3, P4, and P5 panelboards, switchboards, and motor control centers. Delivering an extra-high interrupting capacity of 200 kAIC at 480V, this breaker utilizes an advanced ETU350 LSI electronic trip unit, allowing for adjustable long-time, short-time, and instantaneous protection settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6115-0HN31-0AA0 |
| Series | 3VA6 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Amperage Range | 60-150A |
|---|

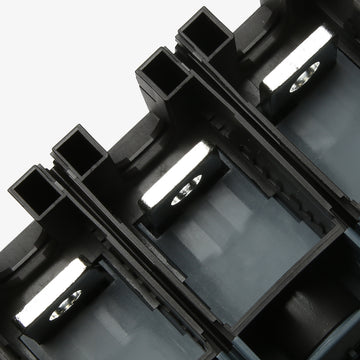

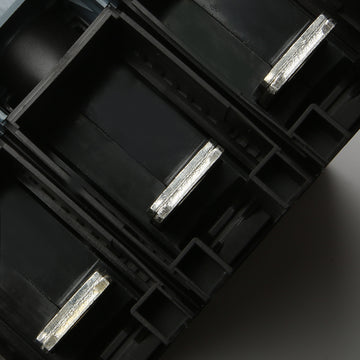

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Extra High Interrupting Capacity |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the 3VA6115-0HN31-0AA0 circuit breaker?
This 150A breaker is designed for use with Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards and motor control centers.
What type of trip unit is installed in the 3VA6115-0HN31-0AA0?
This breaker features an ETU350 electronic trip unit with LSI (Long-Time, Short-Time, and Instantaneous) protection functions.
Are the trip settings adjustable on the 3VA6115-0HN31-0AA0?
Yes, the ETU350 LSI electronic trip unit allows for adjustable long-time, short-time, and instantaneous trip settings to ensure precise coordination with your electrical system.
What frame size is the Siemens 3VA6115-0HN31-0AA0?
It belongs to the Siemens 3VA61 frame group, which is the 150A maximum frame size for the 3VA6 series.
Can the 3VA6115-0HN31-0AA0 be reverse fed?
Yes, Siemens 3VA6 electronic trip circuit breakers are UL listed for reverse feed applications.
How can I test the electronic trip unit on this 3VA6 breaker?
The ETU can be tested and parameterized using the Siemens TD500 test device (catalog number 3VA9977-0MB10), which connects to the front interface of the trip unit.
How many internal accessory pockets does this 3-pole breaker have?
The 3-pole 3VA6 breakers feature two internal accessory pockets for field-installable accessories like shunt trips or auxiliary switches.
