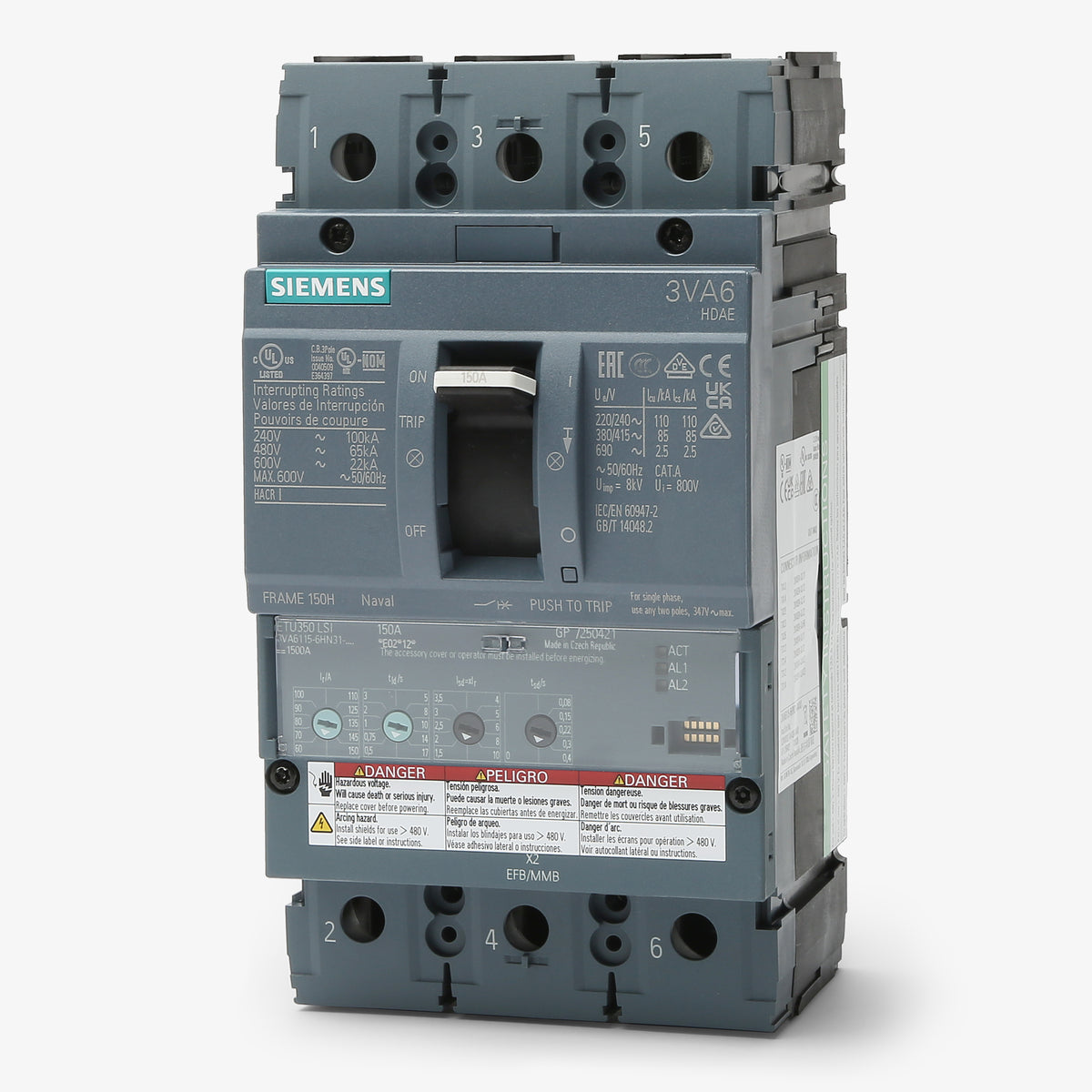

Siemens 3VA6115-8HN31-0AA0 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Quantity
Siemens 3VA6115-8HN31-0AA0 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the SENTRON 3VA6 series, this 3-pole, 150A molded case circuit breaker delivers microprocessor-based protection for industrial applications. It includes a nut keeper kit for secure connections. The device installs into Siemens P2, P3, P4, and P5 panelboards, switchboards, and motor control centers. Featuring an adjustable LSI electronic trip unit, it allows precise system coordination. The breaker provides a high interrupting capacity of 150kA at 480VAC and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 150kA @ 480Y/277VAC, 150kA @ 480VAC, 50kA @ 600Y/347VAC, 50kA @ 600VAC |
| Amperage Range | 60-150A |
|---|
| Frame Type | 3VA61 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lugs, Nut Keeper Kit |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the 3VA6115-8HN31-0AA0?
This breaker is designed for use in Siemens P2, P3, P4, and P5 panelboards, as well as compatible switchboards and motor control centers.
What adjustments can be made with the LSI trip unit on this breaker?
The electronic LSI trip unit allows you to adjust the long-time, short-time, and instantaneous trip settings. This provides precise control over overload and short circuit protection for better selective coordination in your electrical system.
Why choose an electronic trip unit over a standard thermal-magnetic breaker?
Electronic trip units, like the one featured in this 3VA6 breaker, offer greater accuracy, adjustable trip curves, and better repeatability compared to traditional fixed thermal-magnetic breakers.
How is the 3VA6115-8HN31-0AA0 mounted in a panel?
It is a panel mount, feed-thru circuit breaker that connects using standard lug terminals.
What frame family does the 3VA6115-8HN31-0AA0 belong to?
This breaker is part of the Siemens SENTRON 3VA6 series and uses the 3VA61 frame type. Knowing the exact frame type is necessary when selecting compatible internal accessories like shunt trips, undervoltage releases, or auxiliary switches.
Can this breaker be used in 277V or 347V applications?
Yes, it is rated for use on 277V and 347V AC systems, as well as standard 240V, 480V, and 600V AC configurations.
