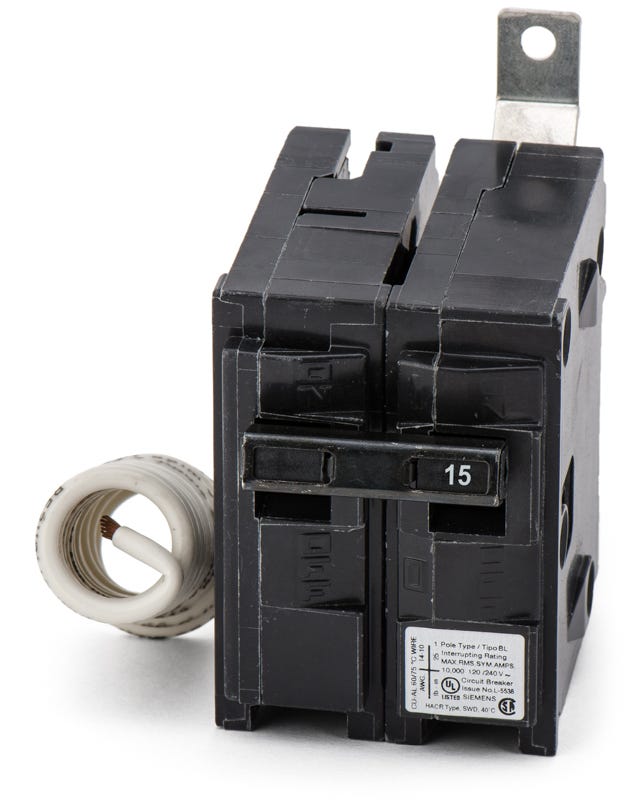

Siemens B11500S01 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Siemens B11500S01 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B11500S01 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B11500S01 |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Quantity
Siemens B11500S01 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B11500S01-R |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Description
Part of the BL series, the Siemens B11500S01 is a 1-pole, 15A MCCB built for commercial use. It features a factory-installed 120VAC shunt trip for remote tripping capabilities. This unit installs into Siemens P1 through P5 panelboards via a secure bolt-on connection. It serves as a direct substitute for BAB1015 and TEB111015 breakers. Rated at 10kAIC at 120/240VAC, it delivers fixed thermal-magnetic (LI) protection. It is HACR and SWD rated for HVAC and lighting applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B11500S01 |
| Series | BL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
4 answersWhat is the difference between the Siemens B115 and the B11500S01?
The B11500S01 is the same 15-amp, 1-pole BL series breaker as the standard B115, but it includes a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely by applying a 120V voltage signal to the shunt trip leads.
Is the Siemens B11500S01 breaker HACR and SWD rated?
Yes, this breaker is both HACR rated for use with heating, air conditioning, and refrigeration equipment, and SWD rated for switching duty. The SWD rating means it is approved to safely switch 120V fluorescent lighting circuits on and off on a regular basis.
Which Siemens panelboards are compatible with the B11500S01 breaker?
This bolt-on BL series breaker is designed specifically for use in Siemens P1, P2, P3, P4, and P5 commercial panelboards. It requires a bolted connection to the bus bar and is not compatible with standard plug-on residential load centers.
How does the shunt trip function operate on the B11500S01?
The factory-installed shunt trip features external wire leads. When a 120VAC signal is applied to these leads from a remote switch, relay, or emergency control system, the internal coil energizes and mechanically forces the breaker to trip, opening the circuit.
