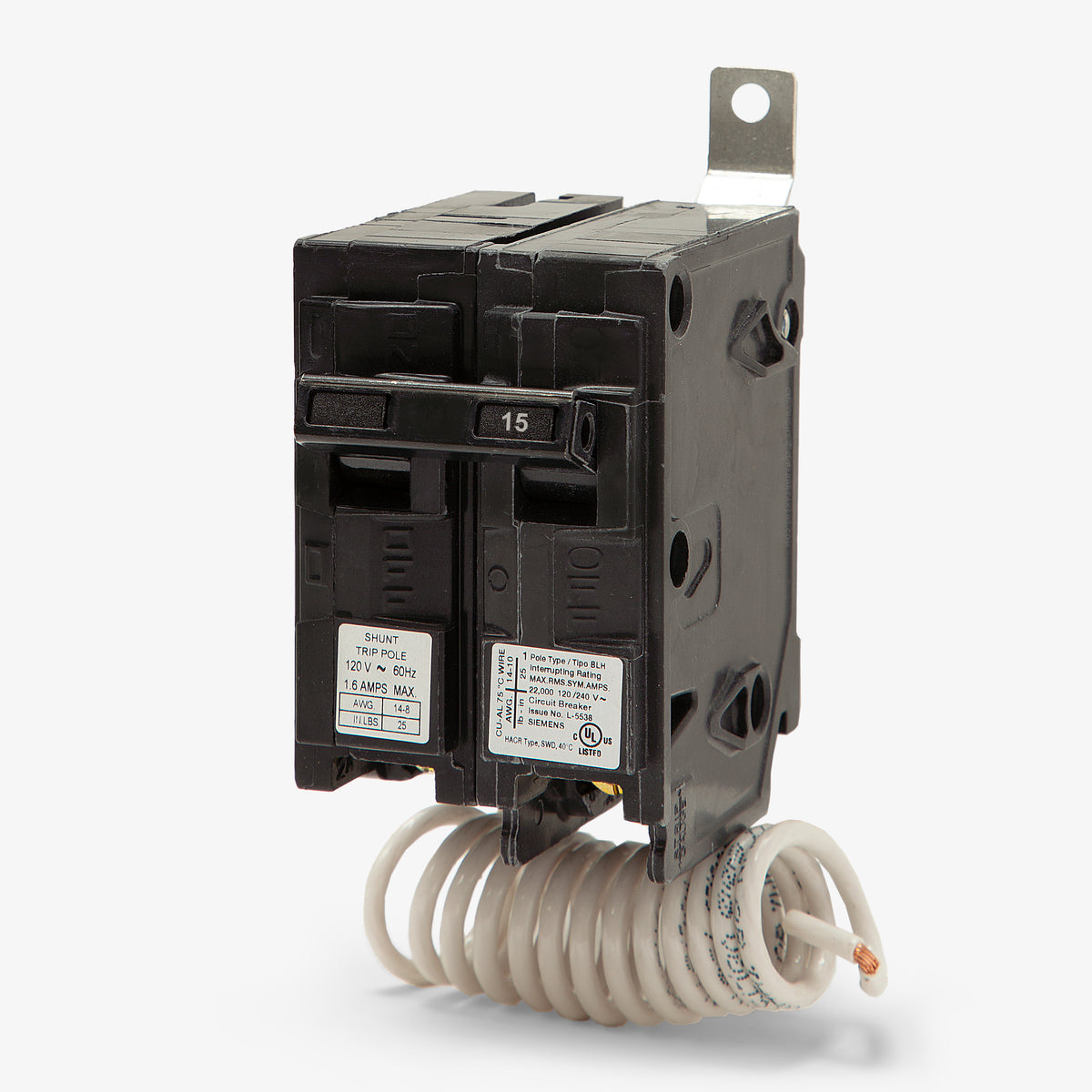

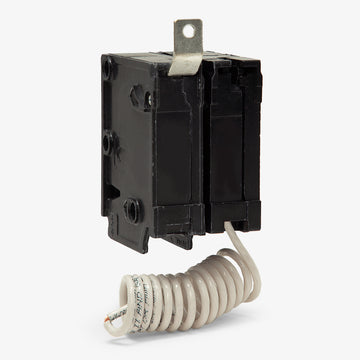

Siemens B115H00S01 Miniature Circuit Breaker
- 15A
- 1 Pole

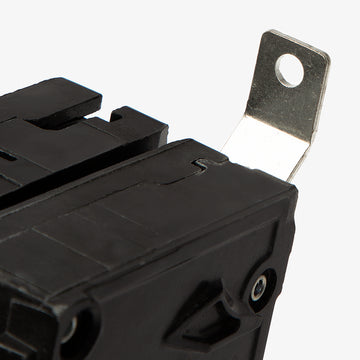

- Bolt-On
Quantity
Siemens B115H00S01 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Built for commercial and industrial power distribution, the Siemens B115H00S01 is a 1-pole, 15A miniature circuit breaker from the BLH series. It features a factory-installed 120VAC shunt trip, allowing facility managers to remotely open the circuit for emergency shutdowns or automated control. This bolt-on breaker mounts securely into Siemens P1, P2, P3, P4, and P5 panelboards. Rated at 22kAIC, it provides robust thermal-magnetic protection and carries both HACR and SWD ratings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B115H00S01 |
| Series | B |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|

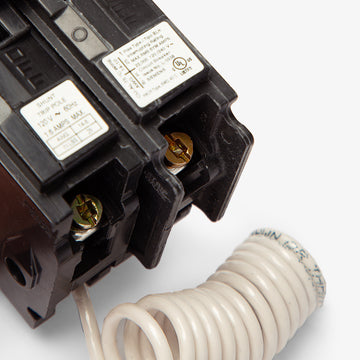

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire |
Product FAQs
6 answersWhat does the 00S01 suffix mean on this Siemens breaker?
The 00S01 suffix denotes a factory-installed 120VAC shunt trip. This allows facility managers or automated systems to remotely open the circuit for emergency shutdowns or safety interlocking.
What is the difference between a Siemens BL and BLH series breaker?
The primary difference is the interrupting capacity. Standard BL series breakers are rated for 10kA, whereas the BLH series, like the B115H00S01, features a higher interrupting capacity of 22kA.
Can I install the B115H00S01 in a standard residential load center?
No, this is a bolt-on breaker designed specifically for commercial and industrial Siemens P1, P2, P3, P4, and P5 panelboards. It will not fit in standard plug-on residential load centers.
What are the common alternate part numbers for the B115H00S01?
This breaker is occasionally referenced by alternate catalog numbers like 8115H00S01 or industry cross-reference 6EUY9.
Does this breaker carry HACR and SWD ratings?
Yes, the B115H00S01 is both HACR and SWD rated. This means it is approved for use with heating, air conditioning, and refrigeration equipment, as well as for switching fluorescent lighting loads.
What type of protection does the thermal-magnetic trip unit provide?
The thermal-magnetic mechanism provides dual protection. The thermal portion offers long-time delayed tripping for minor overloads, while the magnetic portion provides instantaneous tripping against severe short circuits.
