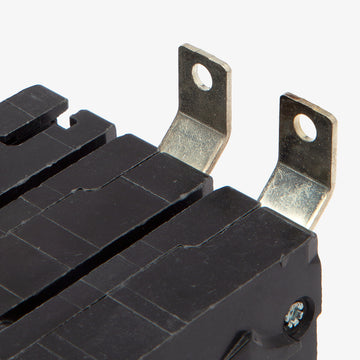

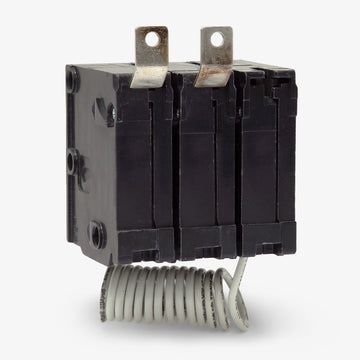

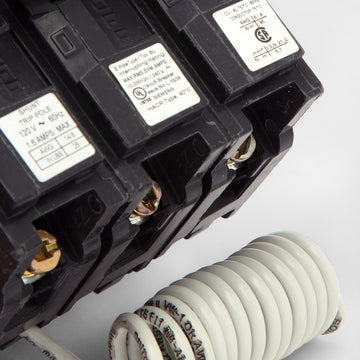

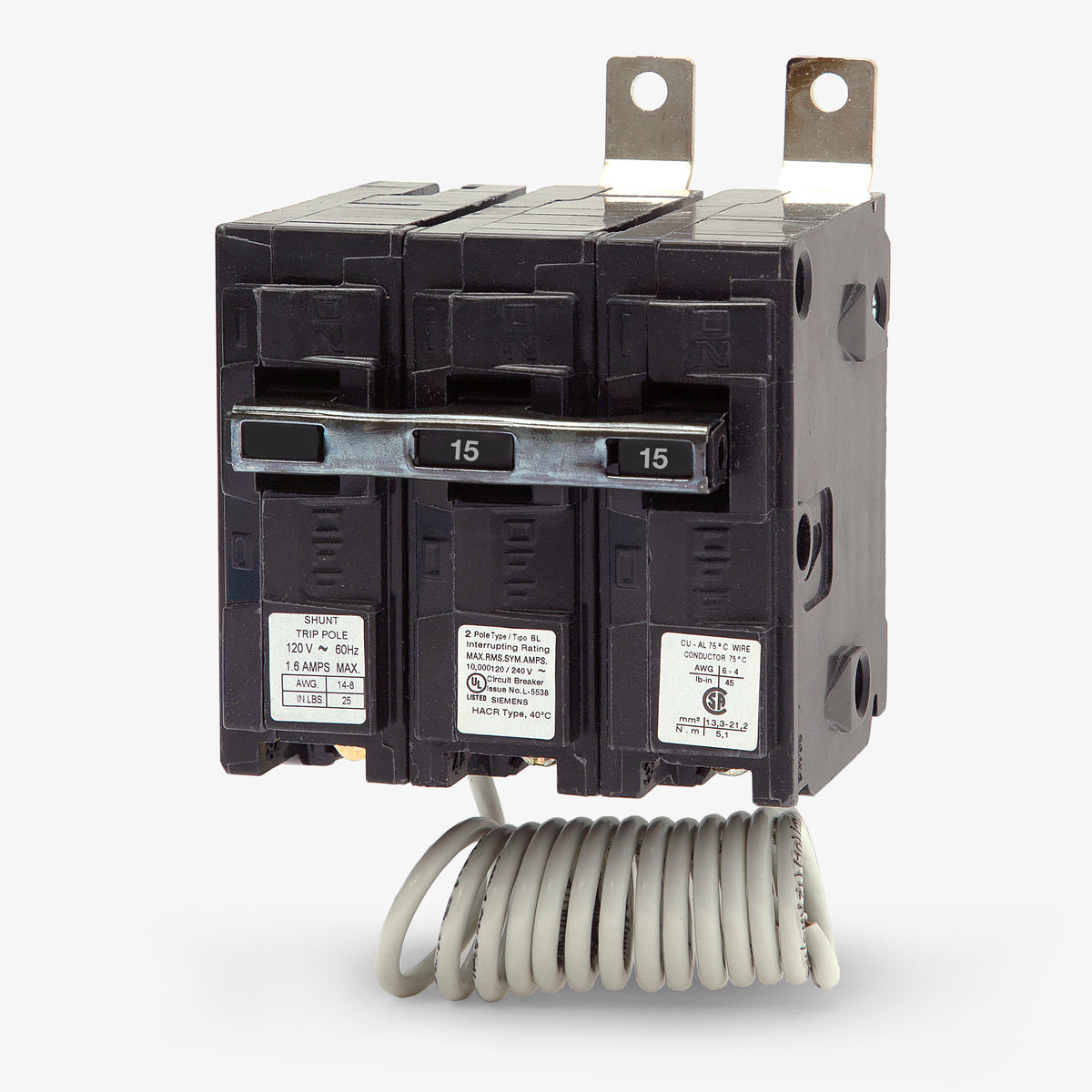

Siemens B21500S01 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
B21500S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B21500S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B21500S01 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B21500S01 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B21500S01 |
| Series | B |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens B21500S01 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B21500S01-R |
| Series | B |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Part of the Siemens B-frame lineup, the B21500S01 delivers reliable thermal-magnetic protection for commercial and industrial electrical systems. This 15A, two-pole molded case circuit breaker is engineered for demanding environments. It installs securely into Siemens P1 through P5 panelboards via a standard bolt-on connection, ensuring a vibration-resistant fit. Rated for 10kAIC at 120/240VAC, this unit features a factory-installed 120VAC shunt trip for remote emergency shutdown capabilities.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B21500S01 |
| Series | B |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich Siemens panelboards accept the B21500S01 circuit breaker?
This bolt-on breaker is compatible with Siemens P1, P2, P3, P4, and P5 panelboards.
Does the B21500S01 feature remote tripping capabilities?
Yes, this breaker includes a factory-installed 120VAC shunt trip accessory, allowing for remote emergency shutdown.
What wire gauges are supported by the terminals on this breaker?
The lugs accept 14 to 10 AWG copper conductors or 12 to 10 AWG aluminum conductors.
How does the thermal-magnetic trip unit operate on the B21500S01?
The breaker uses fixed Long-Time and Instantaneous (LI) trip functions. The thermal element provides delayed tripping for overloads, while the magnetic element provides immediate tripping for short circuits.
What breaker type and frame series is the B21500S01?
The B21500S01 is a Type BL molded case circuit breaker, which is part of the Siemens B-frame family.
