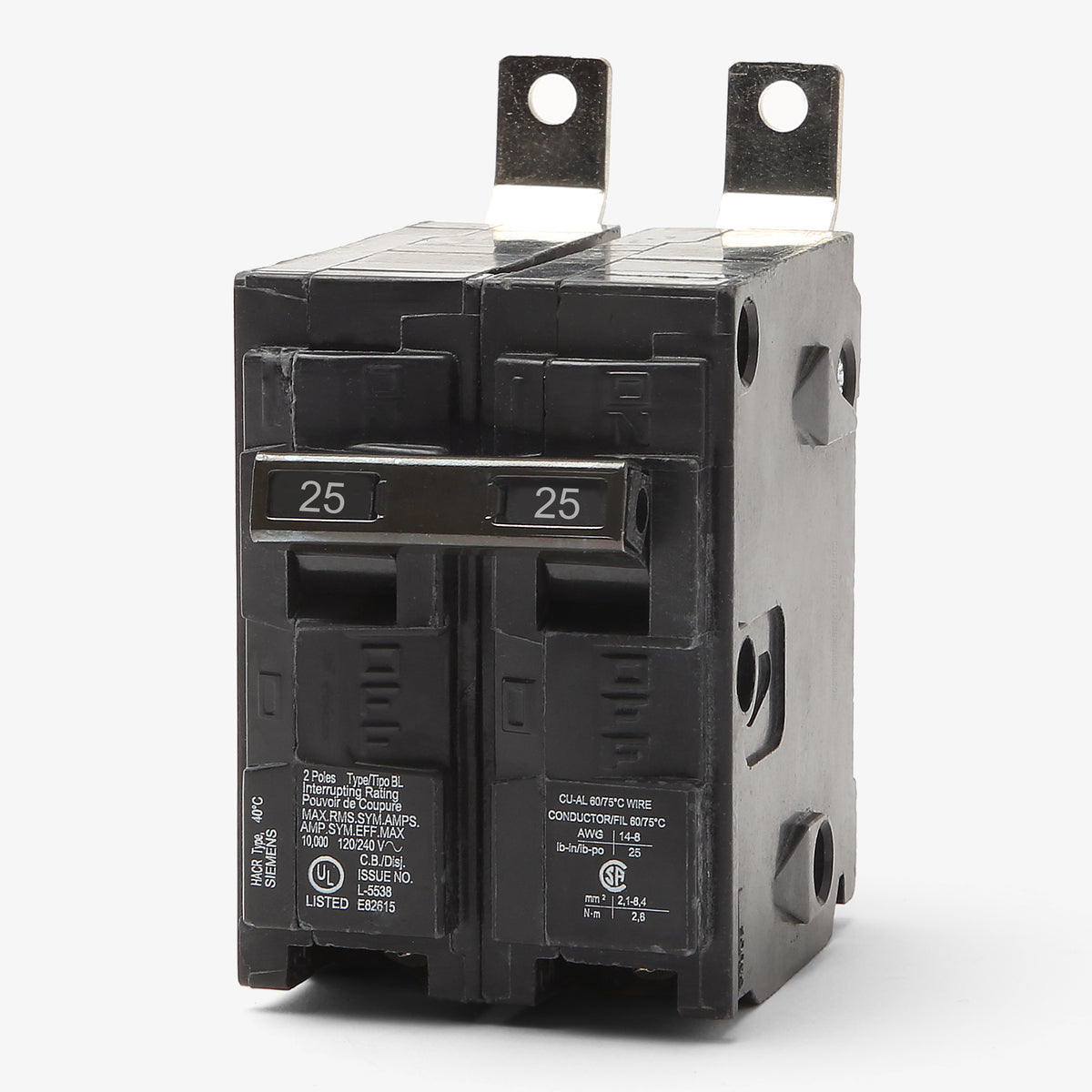

Siemens B225H Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Quantity
Siemens B225H - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Siemens B225H - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B225H |
| Series | BL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Siemens B225H - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B225H-R |
| Series | BL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description

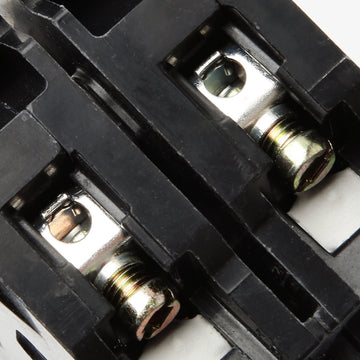

Built for commercial applications, this 25-amp miniature circuit breaker delivers reliable thermal-magnetic overcurrent protection. The two-pole unit operates at 120/240VAC. The bolt-on design ensures a secure connection within Siemens P1 through P5 panelboards. It includes load side lugs that accept 10-8 AWG copper or 10-6 AWG aluminum wire. With a 22kAIC interrupting rating, this BLH type breaker handles higher fault currents. It is fully HACR rated for safe use with HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B225H |
| Series | BL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the Siemens B225H circuit breaker?
This bolt-on breaker is designed specifically for installation in Siemens P1, P2, P3, P4, and P5 commercial panelboards.
What does the H in the B225H catalog number signify?
The H indicates that this is a Type BLH breaker. It provides a high interrupting rating of 22kAIC at 120/240VAC, which is required for systems with higher available fault currents compared to standard 10kAIC BL series breakers.
Is the B225H circuit breaker HACR rated?
Yes, it carries a full HACR rating, meaning it is tested and approved for safely protecting heating, air conditioning, and refrigeration equipment circuits.
Can I use the Siemens B225H to replace a legacy ITE B225H?
Yes. Siemens acquired ITE, and the current Siemens B225H serves as the direct, manufacturer-approved replacement for older ITE B225H models.

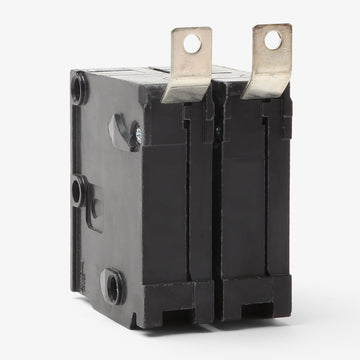

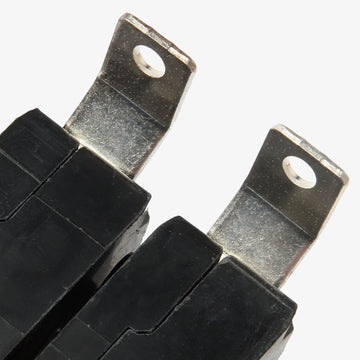

How does the B225H mount to the panelboard?
It utilizes a bolt-on connection that fastens directly to the panelboard bus. This provides a highly secure, vibration-resistant mechanical and electrical connection required in commercial distribution equipment.
What type of trip mechanism does the B225H use?
It features a fixed thermal-magnetic trip unit. The thermal component provides long-time delay protection against overloads, while the magnetic component offers instantaneous protection against short circuits.
