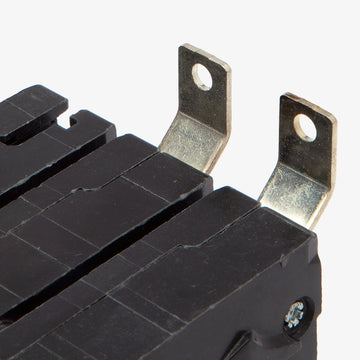

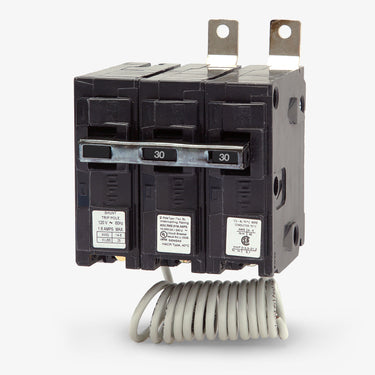

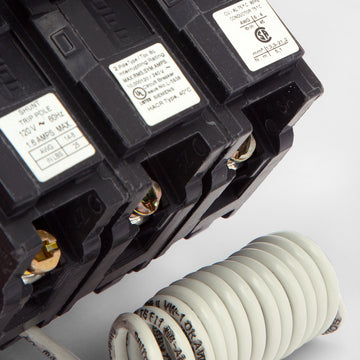

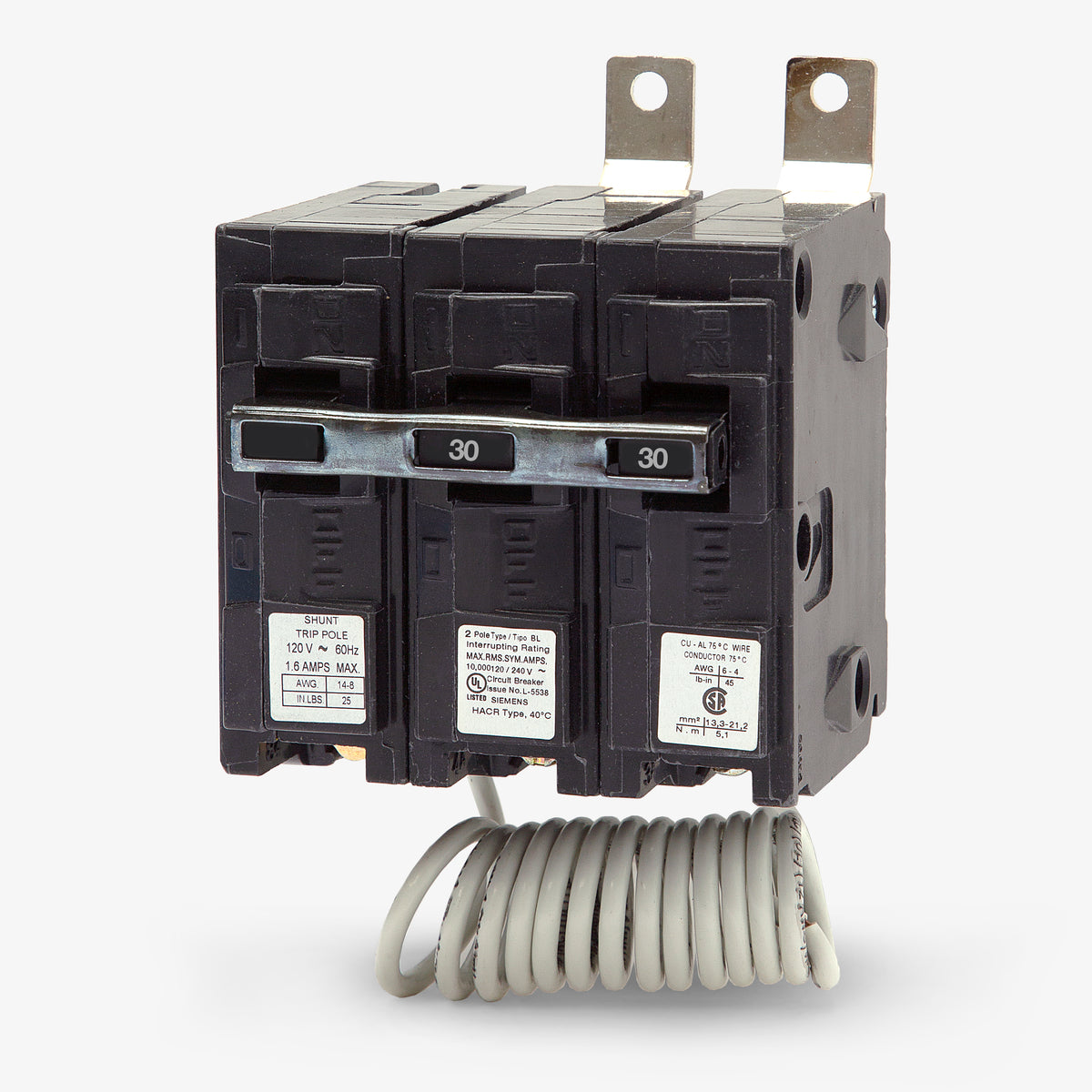

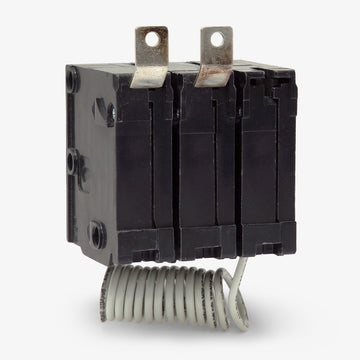

Siemens B23000S01 Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Quantity
Siemens B23000S01 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Siemens B23000S01 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B23000S01 |
| Series | B |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens B23000S01 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B23000S01-R |
| Series | B |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Engineered for commercial and industrial applications, the Siemens B23000S01 is a 2-pole, 30A miniature circuit breaker from the BL series. It mounts securely into Siemens P1, P2, and P3 panelboards using a standard bolt-on connection, providing reliable overcurrent protection for branch circuits. Featuring a factory-installed 120VAC shunt trip, this unit allows for remote tripping capabilities essential for emergency shutdowns or automated control systems. Rated at 10 kAIC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B23000S01 |
| Series | B |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens B23000S01?
This bolt-on miniature circuit breaker is designed specifically for use in Siemens P1, P2, and P3 panelboards.
What does the S01 suffix indicate in the B23000S01 catalog number?
The S01 suffix indicates that the breaker includes a factory-installed 120VAC shunt trip. This feature is commonly used for emergency shutdowns or integration with automated control systems.
How is the 120VAC shunt trip wired and operated?
The shunt trip requires an external 120VAC control signal. When voltage is applied to the shunt trip coil via the control wires, it mechanically trips the breaker to open the circuit, allowing for remote disconnection.
What are the acceptable wire sizes for the terminal lugs on this breaker?
The load lugs are rated to accept 10 to 8 AWG copper conductors or 10 to 6 AWG aluminum conductors.
Can the B23000S01 be used to replace older ITE bolt-on breakers?
Yes. Because Siemens acquired ITE, this authentic Siemens B-frame breaker serves as a direct replacement for legacy ITE bolt-on breakers with matching specifications.
What does the LI trip function code mean for this breaker?
The LI code indicates a thermal magnetic trip unit equipped with Long-Time (L) and Instantaneous (I) functions. This provides standard protection against both sustained overloads and sudden short circuits.
What type of connection does this breaker use?
It features a bolt-on connection, which provides a secure mechanical and electrical attachment directly to the panelboard bus.
