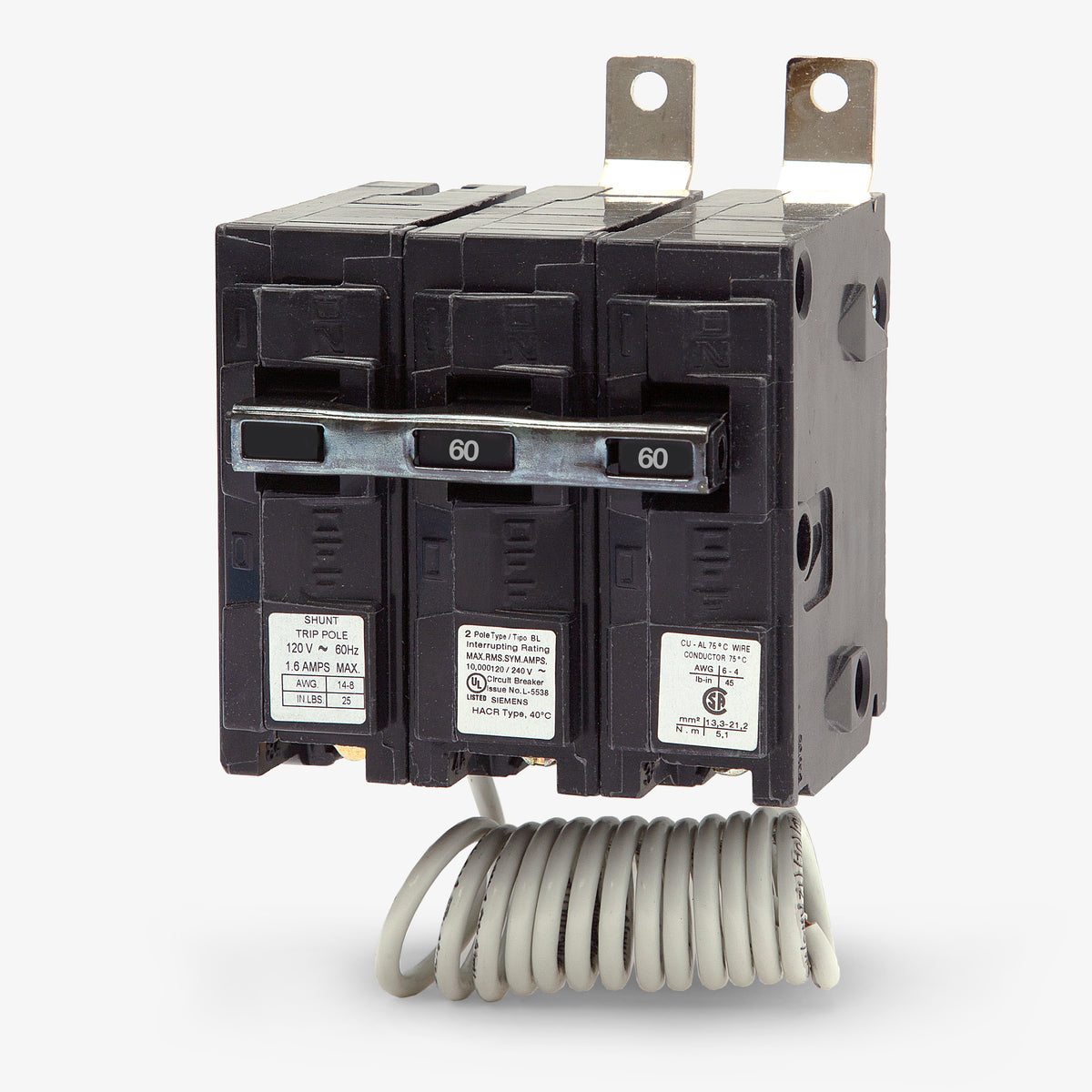

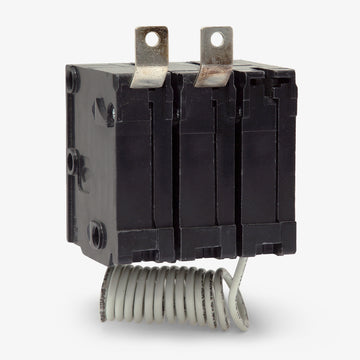

Siemens B26000S01 Molded Case Circuit Breaker
- 60A
- 2 Pole

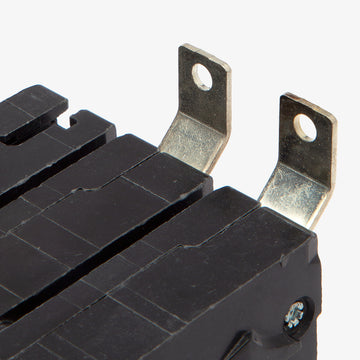

- Bolt-On
Siemens
B26000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B26000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B26000S01 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B26000S01 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B26000S01 |
| Series | B |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 6-4 AWG (Cu), 6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Siemens B26000S01 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B26000S01-R |
| Series | B |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 6-4 AWG (Cu), 6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution, the Siemens B26000S01 delivers 60 amps of thermal-magnetic overcurrent protection. This 2-pole MCCB comes equipped with a factory-installed 120VAC shunt trip, enabling remote disconnect capabilities for emergency or automated shutdowns. The breaker is engineered for a secure bolt-on connection, ensuring compatibility with Siemens P1 through P5 panelboards. Delivering a 10 kAIC interrupting rating at 120/240VAC, it is fully HACR rated for motor loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B26000S01 |
| Series | B |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 6-4 AWG (Cu), 6-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards accept the Siemens B26000S01 circuit breaker?
This bolt-on breaker is engineered specifically for Siemens P1, P2, P3, P4, and P5 commercial panelboards.
What does the S01 suffix mean on the B26000S01 catalog number?

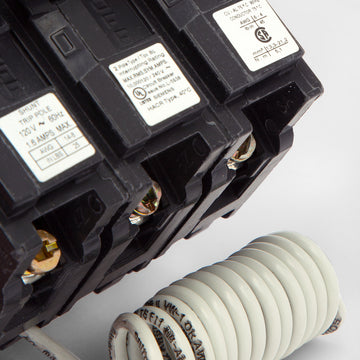

The S01 suffix indicates the breaker comes with a factory-installed 120VAC shunt trip. This allows the breaker to be opened remotely via an external control signal, which is commonly used for emergency shutdowns or fire alarm integration.
What wire sizes are supported by the lugs on this 60A breaker?
The terminal lugs accommodate 6 AWG to 4 AWG copper or aluminum wire. Always verify local codes and apply the manufacturer-specified torque during termination.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic (LI) trip unit provides long-time protection against sustained overloads and instantaneous protection against short-circuit faults.
How does the integrated 120V shunt trip operate during an emergency?
When a 120VAC signal is applied to the shunt trip coil from a remote switch or safety relay, it mechanically forces the breaker mechanism to trip, instantly de-energizing the connected 60A load.
Is the B26000S01 part of the Siemens BL series?
Yes, this B-frame breaker is part of the BL series. The bolt-on design distinguishes it from plug-on variants, making it suitable for heavy-duty commercial distribution panels.
