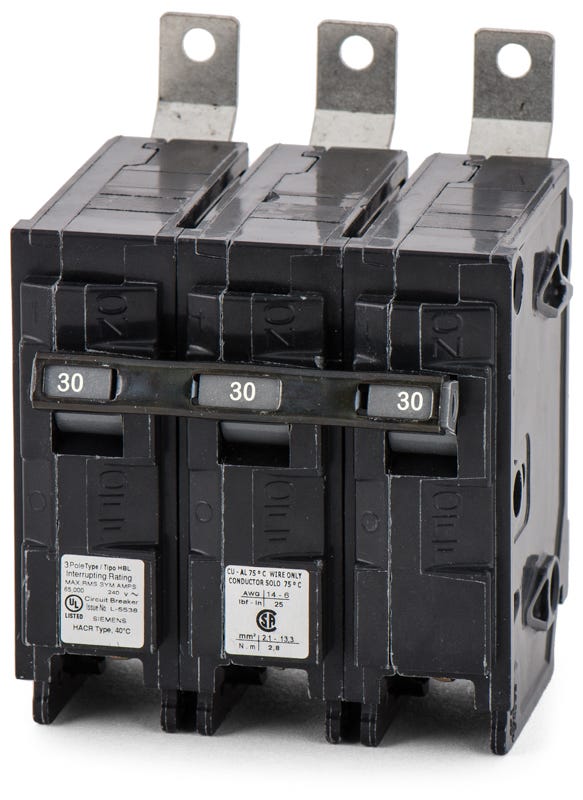

Siemens B330HH Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
B330HH
Molded Case Circuit Breaker
Brand
Siemens
SKU
B330HH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B330HH - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Part of the BL series, the Siemens B330HH is a 3-pole, 30A molded case circuit breaker built for commercial applications. It utilizes thermal-magnetic technology for reliable overcurrent protection. Featuring a bolt-on design, this unit installs securely into Siemens P1, P2, P3, P4, and P5 panelboards for three-phase power distribution. Rated 65 kAIC at 240VAC, it safely clears severe fault currents. The breaker is HACR rated and accepts 14-6 AWG copper or 12-6 AWG aluminum wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B330HH |
| Series | B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens B330HH circuit breaker?
The B330HH is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards that accept bolt-on Type BL or HBL series breakers.
What does the HH suffix in the B330HH catalog number indicate?
The HH designates this as a Type HBL breaker. This frame provides a high interrupting capacity of 65kA at 240V AC, which is significantly higher than standard BL or BLH versions.
What wire sizes are accepted by the terminal lugs on the B330HH?
The built-in lugs accommodate 14 to 6 AWG copper conductors or 12 to 6 AWG aluminum conductors. Ensure proper torque is applied during installation as specified on the breaker label.
Can the Siemens B330HH replace older ITE bolt-on breakers?
Yes, Siemens acquired ITE, and this breaker serves as a direct replacement for legacy ITE 30A, 3-pole bolt-on breakers that share the HBL frame and 65kAIC rating.
How does the thermal-magnetic trip unit in the B330HH protect electrical circuits?
The thermal component provides long-time delayed tripping to prevent overheating from continuous overloads, while the magnetic component offers instantaneous tripping to quickly clear severe short circuits.
