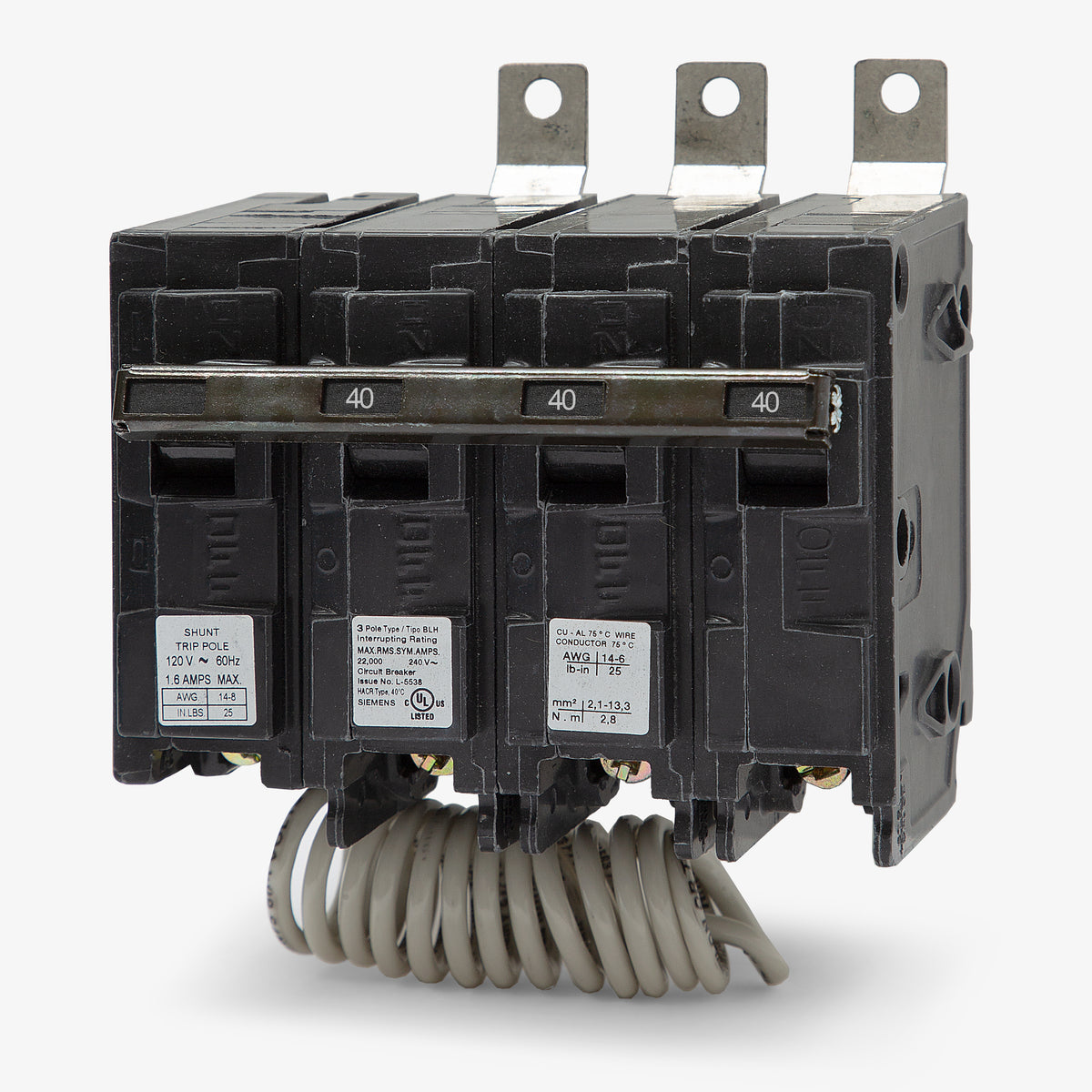

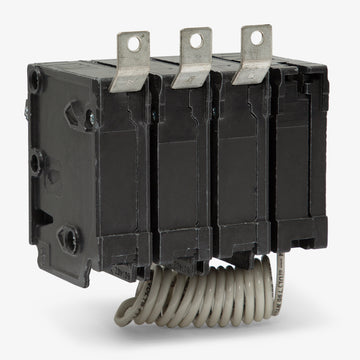

Siemens B340H00S01 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Quantity
Siemens B340H00S01 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description

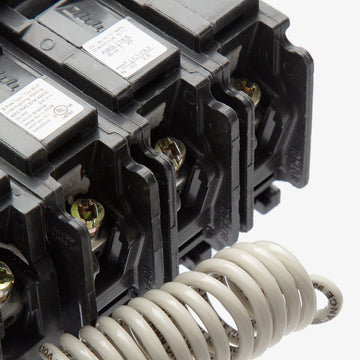

Part of Siemens' BLH series, the B340H00S01 is a 3-pole, 40A molded case circuit breaker designed for commercial electrical distribution. It delivers reliable thermal-magnetic protection for 240VAC systems. This bolt-on MCCB installs seamlessly into Siemens P1 through P5 panelboards and accepts 8-6 AWG copper wiring. Rated at 22 kAIC, the unit includes a factory-installed 120VAC shunt trip mechanism for remote tripping capabilities essential for emergency disconnects. It is also HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B340H00S01 |
| Series | BLH |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat does the 00S01 suffix indicate on the Siemens B340H00S01?
The 00S01 suffix designates a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely via an external control signal.
What is the difference between Siemens BL and BLH series circuit breakers?
The BLH series features a higher interrupting rating of 22kAIC at 120/240VAC, whereas standard BL series breakers are rated for 10kAIC. The B340H00S01 is a BLH type breaker designed for systems requiring this higher fault current capacity.

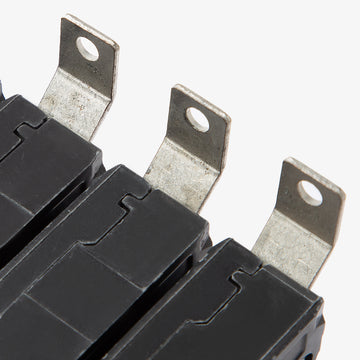

How is the B340H00S01 installed into Siemens panelboards?
This breaker features a bolt-on connection that fastens directly to the bus bars of Siemens P1, P2, P3, P4, and P5 panelboards. This provides a secure mechanical and electrical connection for commercial distribution systems.
Is the Siemens B340H00S01 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
How does the integrated shunt trip on the B340H00S01 operate?
The factory-installed shunt trip requires a 120VAC control signal. When energized, it mechanically trips the breaker to open the circuit, making it ideal for emergency disconnects and safety interlock systems.
