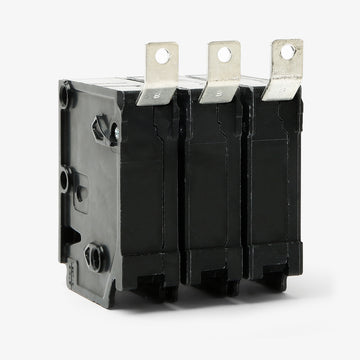

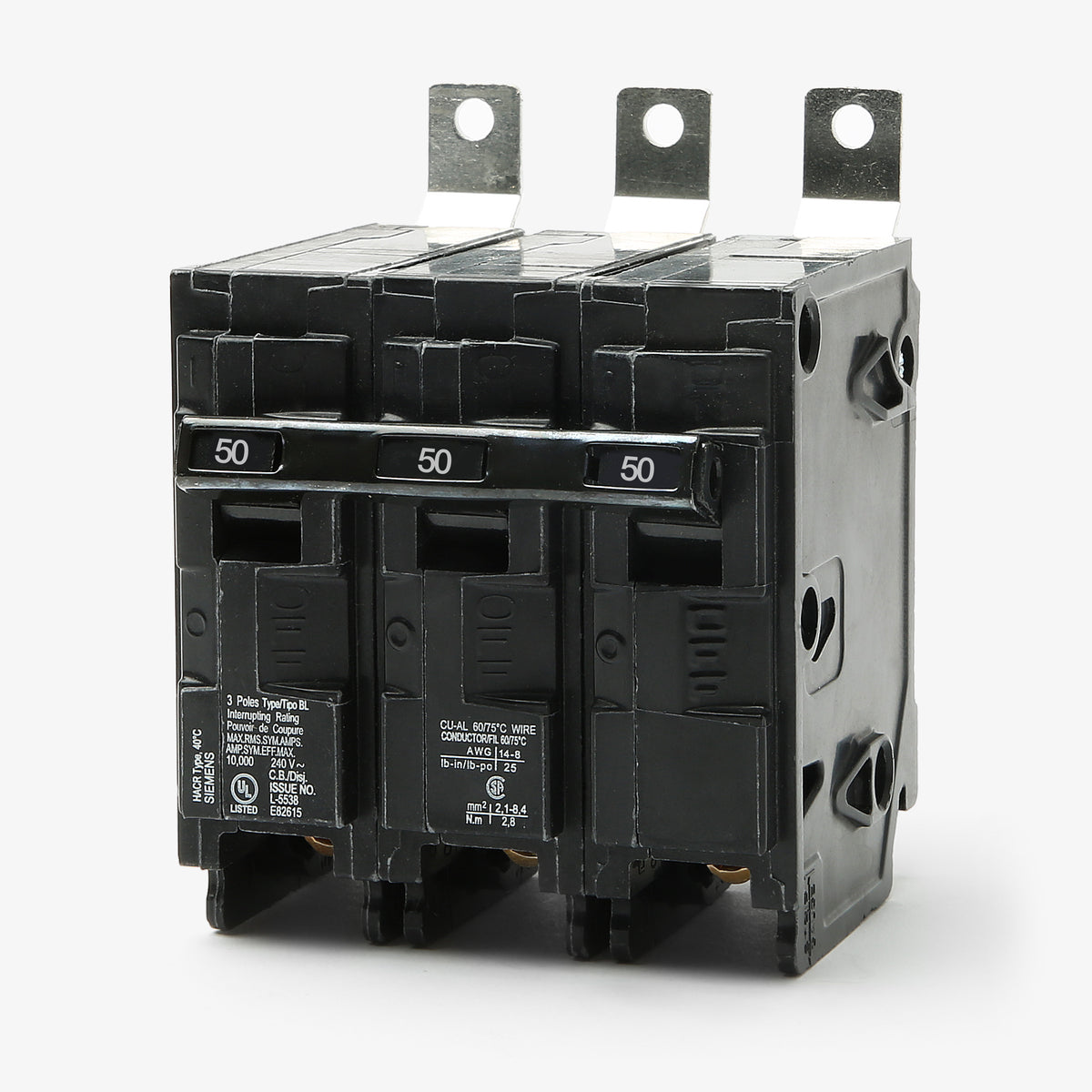

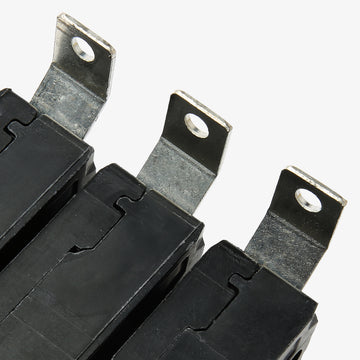

Siemens B350 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Siemens
B350
Molded Case Circuit Breaker
Brand
Siemens
SKU
B350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B350 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens B350 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B350 |
| Series | B |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens B350 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B350-R |
| Series | B |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty applications, this 50A Siemens molded case circuit breaker provides essential long-time and instantaneous trip functions. The 3-phase unit ensures consistent performance across demanding commercial environments. The bolt-on mounting style ensures a firm connection within Siemens P1 panelboards. It also serves as a substitute for BAB3050, THQB32050, and QOB350 configurations. Equipped with standard load side lugs, the breaker accepts 8-6 AWG copper conductors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B350-R |
| Series | B |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersCan I install the Siemens B350 in a standard residential load center?
No. This is a bolt-on circuit breaker designed exclusively for commercial Siemens P1 panelboards. Standard residential load centers typically require plug-on breakers and will not accept this bolt-on mounting style.
Are the trip settings on the B350 adjustable for specific equipment loads?
No. The thermal-magnetic trip unit features fixed thermal (long-time) and fixed magnetic (instantaneous) settings. You cannot field-adjust the trip curves on this particular model.
Do I need separate hardware to connect aluminum wiring to this breaker?

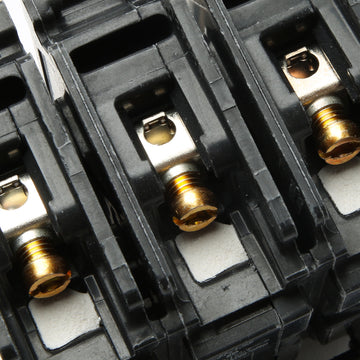

No additional lug hardware is needed. The factory-installed load side lugs are rated for both copper and aluminum conductors. You can directly terminate 8 to 6 AWG copper or 8 to 4 AWG aluminum wire.
Is the B350 part of the Siemens BL frame family?
Yes. Although the catalog number starts with a B, it is classified as a BL type molded case circuit breaker and utilizes the standard 125A maximum BL frame size.
Can the B350 directly replace a GE THQB32050 or Square D QOB350?
While it matches the electrical specifications of 50A bolt-on configurations like the THQB32050, QOB350, and BAB3050, it is not physically interchangeable. The busbar bolt spacing differs across manufacturers, so you must install this breaker only in compatible Siemens panelboards.
Does this 50A breaker provide ground fault or arc fault protection?
No. The B350 provides standard thermal-magnetic overcurrent and short-circuit protection. It does not include ground fault (GFCI) or arc fault (AFCI) sensing electronics.
